Audio System Transceiver Module Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

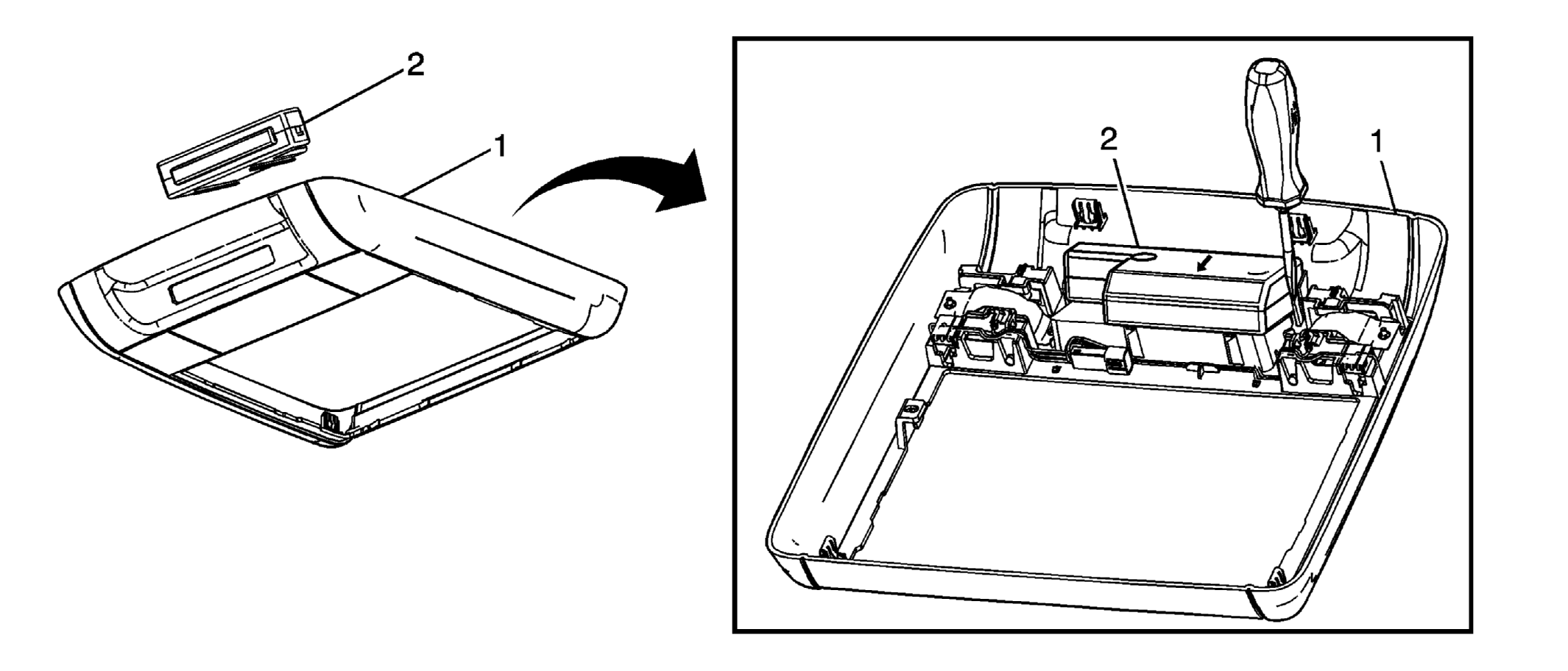

Fig 1: Audio System Transceiver Module
GM1746253Courtesy of GENERAL MOTORS CORP.
Audio System Transceiver Module Replacement

Callout Component Name
Preliminary Procedure
Remove the video display assembly. Refer to Video Display Replacement (Second Row) , Video Display Replacement (Third Row) .
1 Roof Console Assembly
Refer to Roof Rear Console Replacement (with DVD) , Roof Rear Console Replacement (w/o DVD) .
2 Audio System Transceiver Module Assembly
  1. Disconnect the electrical connector.
  2. Use a flat bladed tool to release the tabs that secure the module to the roof console on each side of the module.
  3. Slide forward and up to release from the roof console.
