Audio/Video Interface Module Replacement (AYE)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

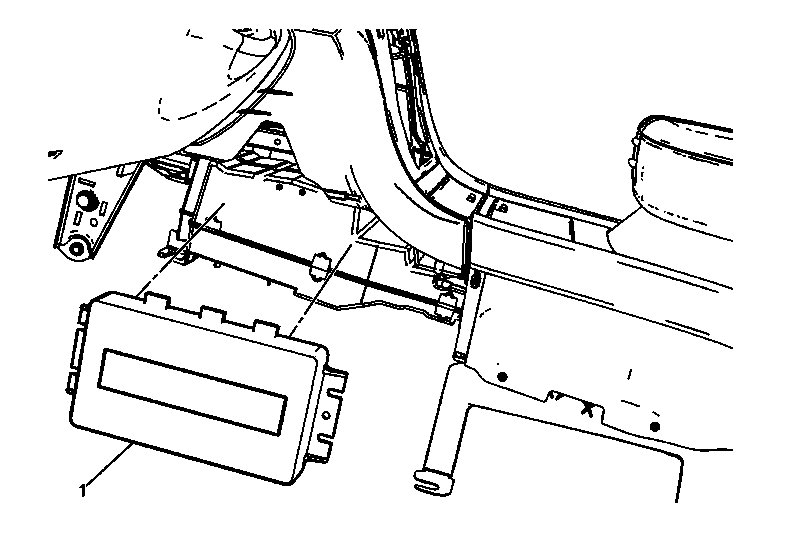

Fig 1: Audio/Video Interface Module (AYE)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the front floor console side trim - left side. Refer to Front Floor Console Side Trim Front Panel Replacement - Left Side (Cadillac) .
1	Audio Video Interface Module Procedure Remove the foam tape covering the module. Disconnect the electrical connectors. Remove the module from the hook and loop fastener on the console.

Callout

Component Name

Preliminary Procedure
Remove the front floor console side trim - left side. Refer to Front Floor Console Side Trim Front Panel Replacement - Left Side (Cadillac) .

Audio Video Interface Module

Procedure

Remove the foam tape covering the module.
Disconnect the electrical connectors.
Remove the module from the hook and loop fastener on the console.
