Digital Radio Receiver Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

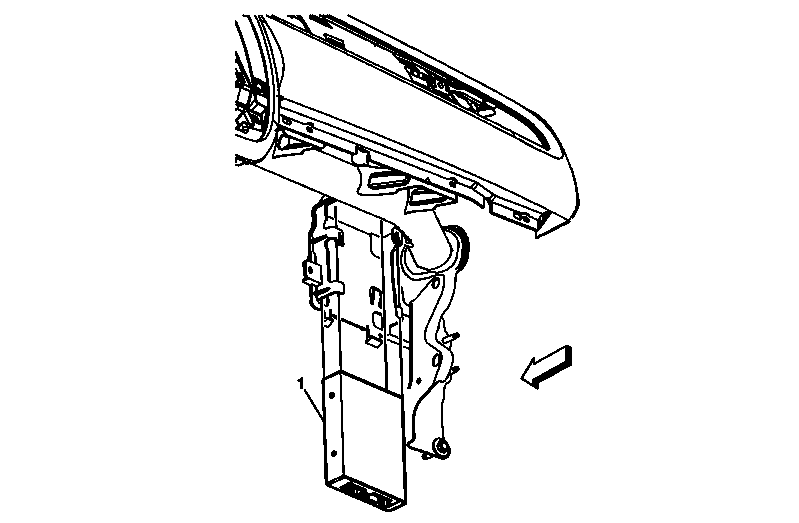

Fig 1: Digital Radio Receiver
GM1696470Courtesy of GENERAL MOTORS CORP.
Digital Radio Receiver Replacement

Callout Component Name
Preliminary Procedure
Remove the right instrument panel insulator. Refer to Instrument Panel Insulator Replacement (Cadillac) , Instrument Panel Insulator Replacement (Except Cadillac) .
1 Digital Radio Receiver
  1. Disconnect the electrical connectors.
  2. Push in on the 2 tabs and pull down to remove the receiver.
  3. Perform the Digital Radio Receiver Setup. Refer to Control Module References .
