Navigation Map Interface Module Receptacle Opening Cover Replacement (Cadillac)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

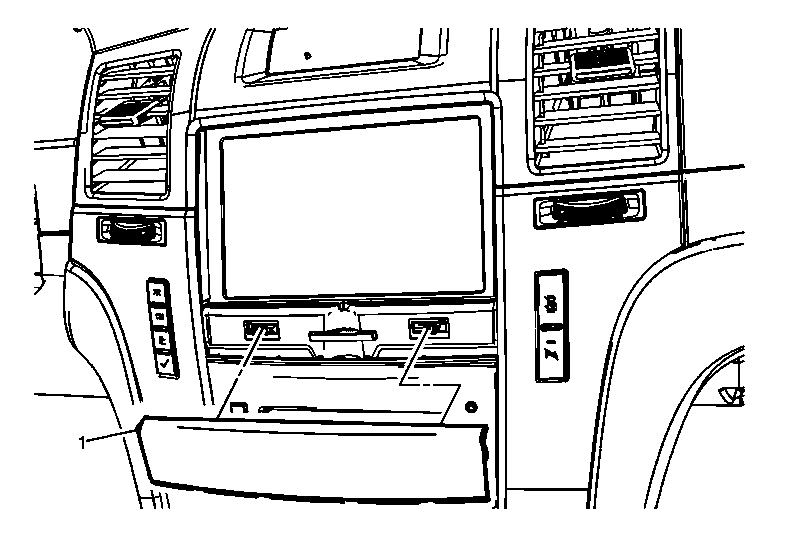

Fig 1: Navigation Map Interface Module Receptacle Opening Cover

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the instrument panel accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement (Except Cadillac) , Instrument Panel Accessory Trim Plate Replacement (Cadillac)
1	Navigation Map Interface Module Receptacle Opening Cover Procedure With the appropriate trim tool, insert the tool only on the left and right sides of the cover to gently remove.
