Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Perform the following to install the door lock receiver (1) to the door lock receiver bracket.
Slide the tab on door lock receiver (1) into the door lock receiver bracket and snap into place to secure.
Connect the electrical connector (1) to the door lock receiver (2).
Install the I/P trim panel. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER .

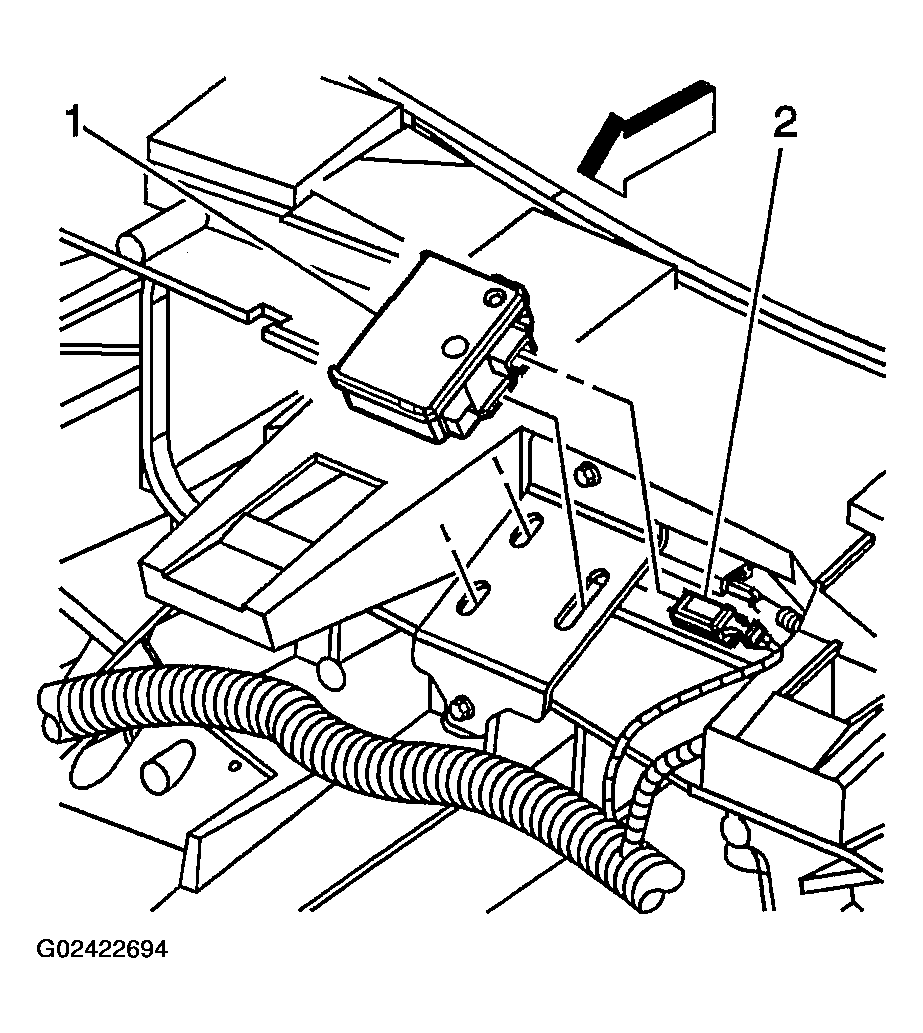

Fig 1: Installing Remote Control Door Lock Receiver
Courtesy of GENERAL MOTORS CORP.
