Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (I/P) upper trim panel. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER .
  2. Disconnect the electrical connector (2) from the door lock receiver (1).
  3. Disengage the remote control door lock receiver (1) from the door lock receiver bracket.
  4. Remove the door lock receiver.

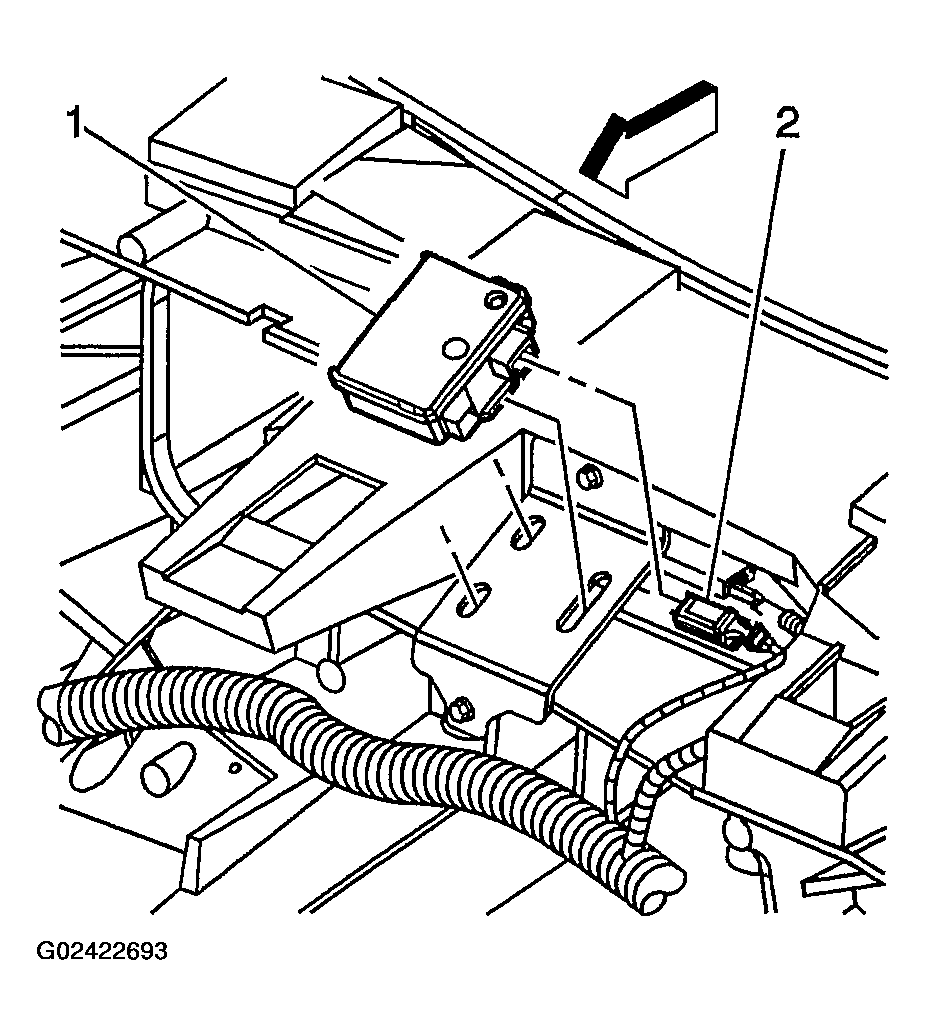

    Fig 1: Removing Remote Control Door Lock Receiver
    G02422693Courtesy of GENERAL MOTORS CORP.
