Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

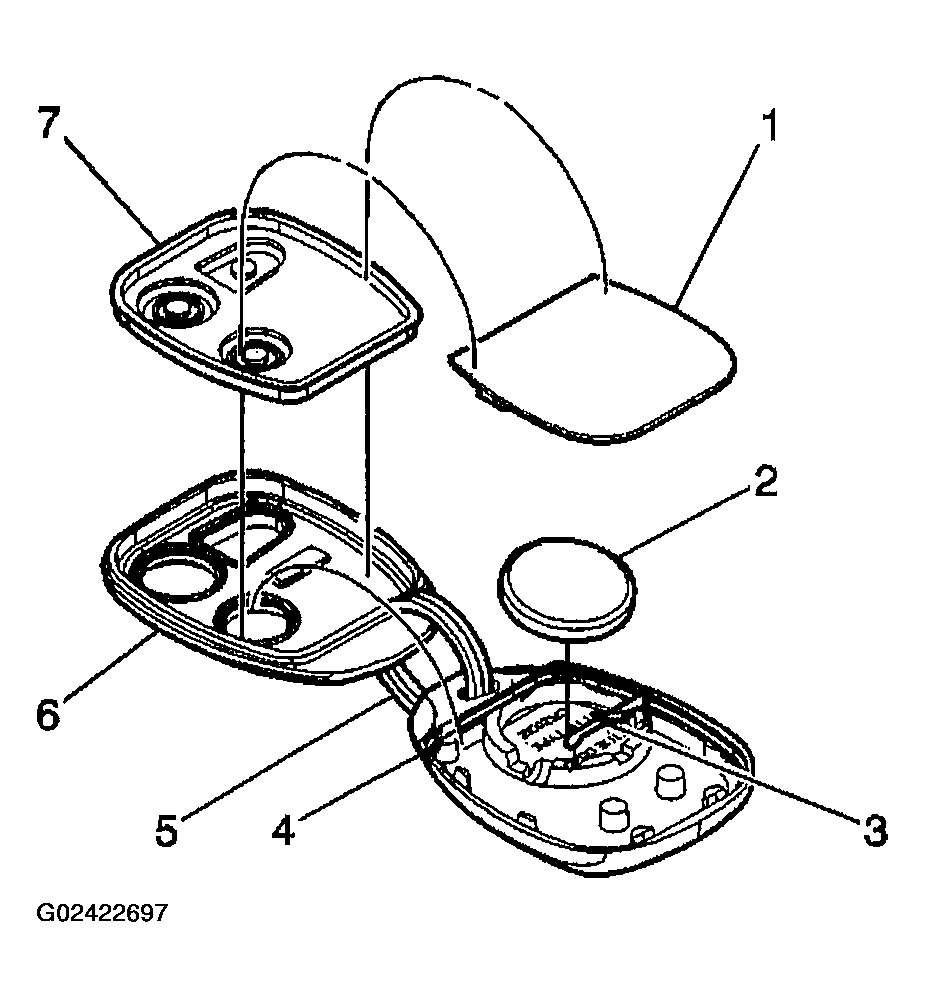

Install the battery (2) with the positive (+) side down.
Use one 3 V CR2032 battery, or the equivalent.

Fig 1: Installing Transmitter Battery
Courtesy of GENERAL MOTORS CORP.

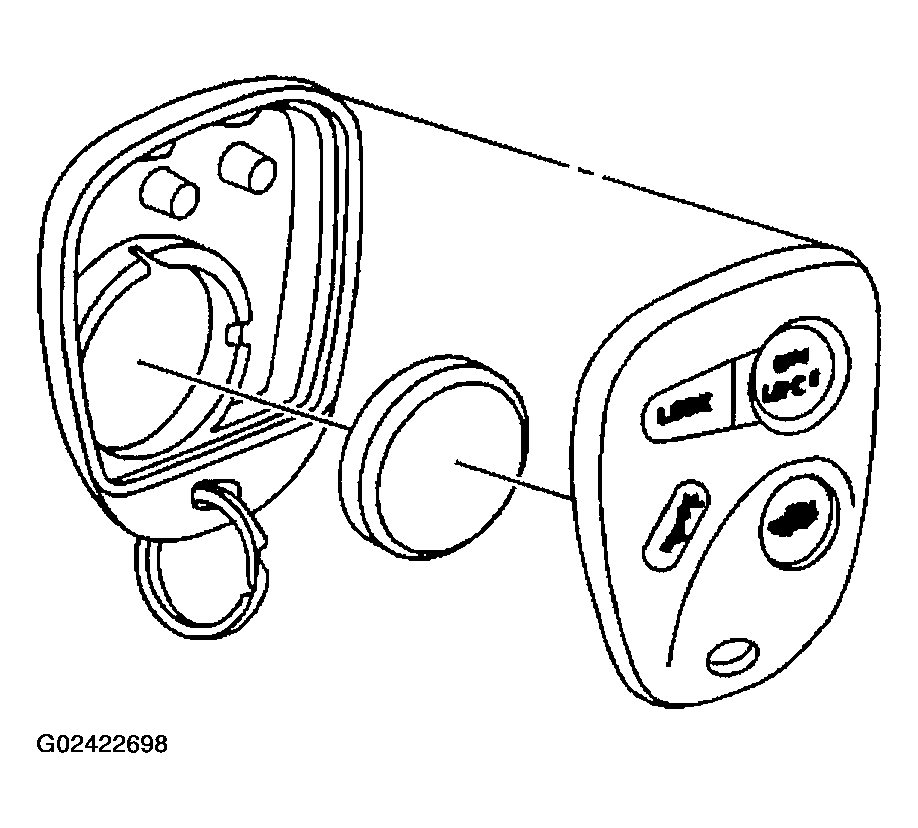

Ensure that the seal is in position. Align the 2 halves of the case and snap the 2 halves together.
Resynchronize the transmitter. Refer to Transmitter Synchronization .

Fig 2: Aligning & Snapping Transmitter Case Halves Together
Courtesy of GENERAL MOTORS CORP.
