Stationary Windows Component Views

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Front Of Vehicle (DF5)

Courtesy of GENERAL MOTORS CORP.

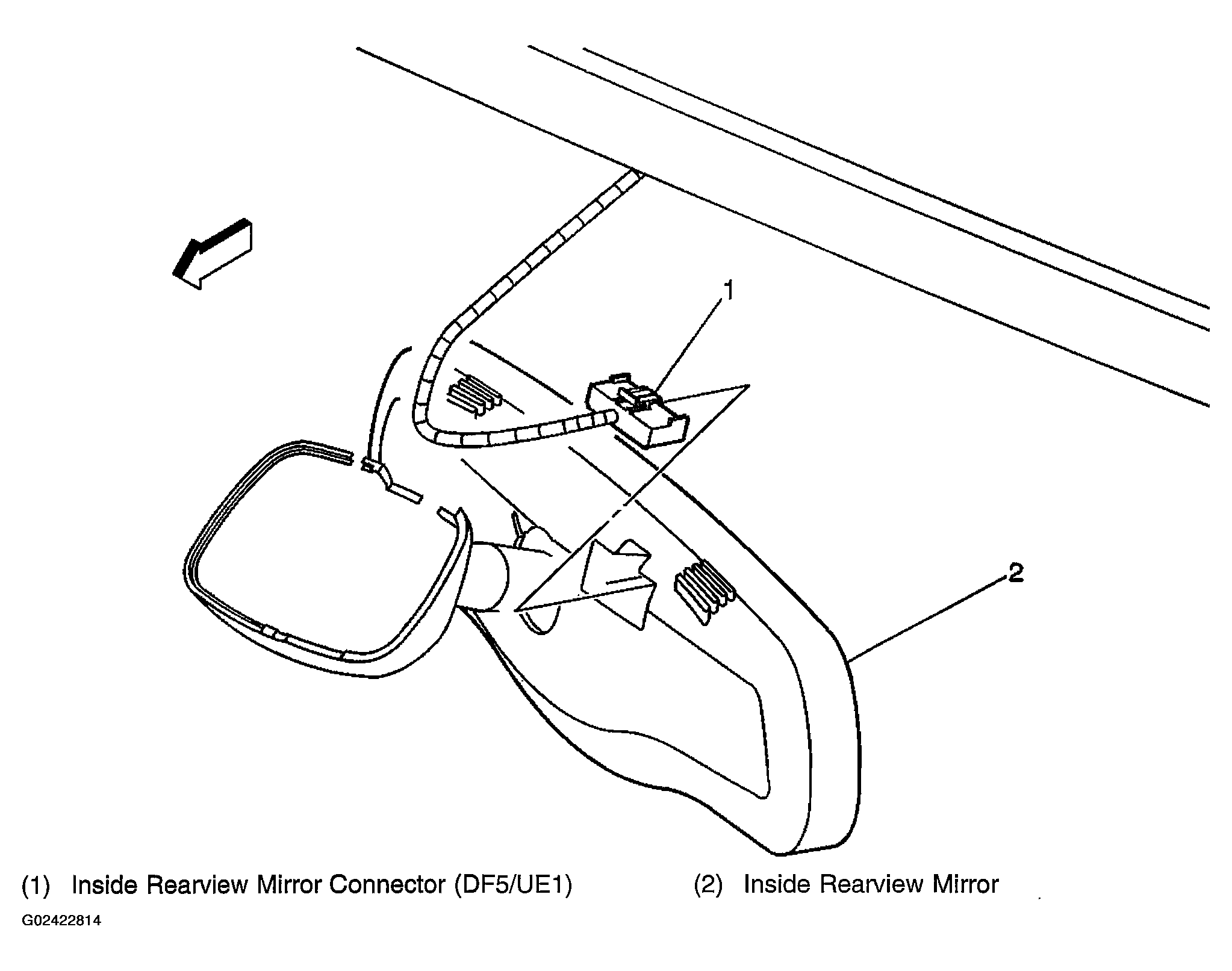

Fig 2: Identifying Inside Rearview Mirror

Courtesy of GENERAL MOTORS CORP.

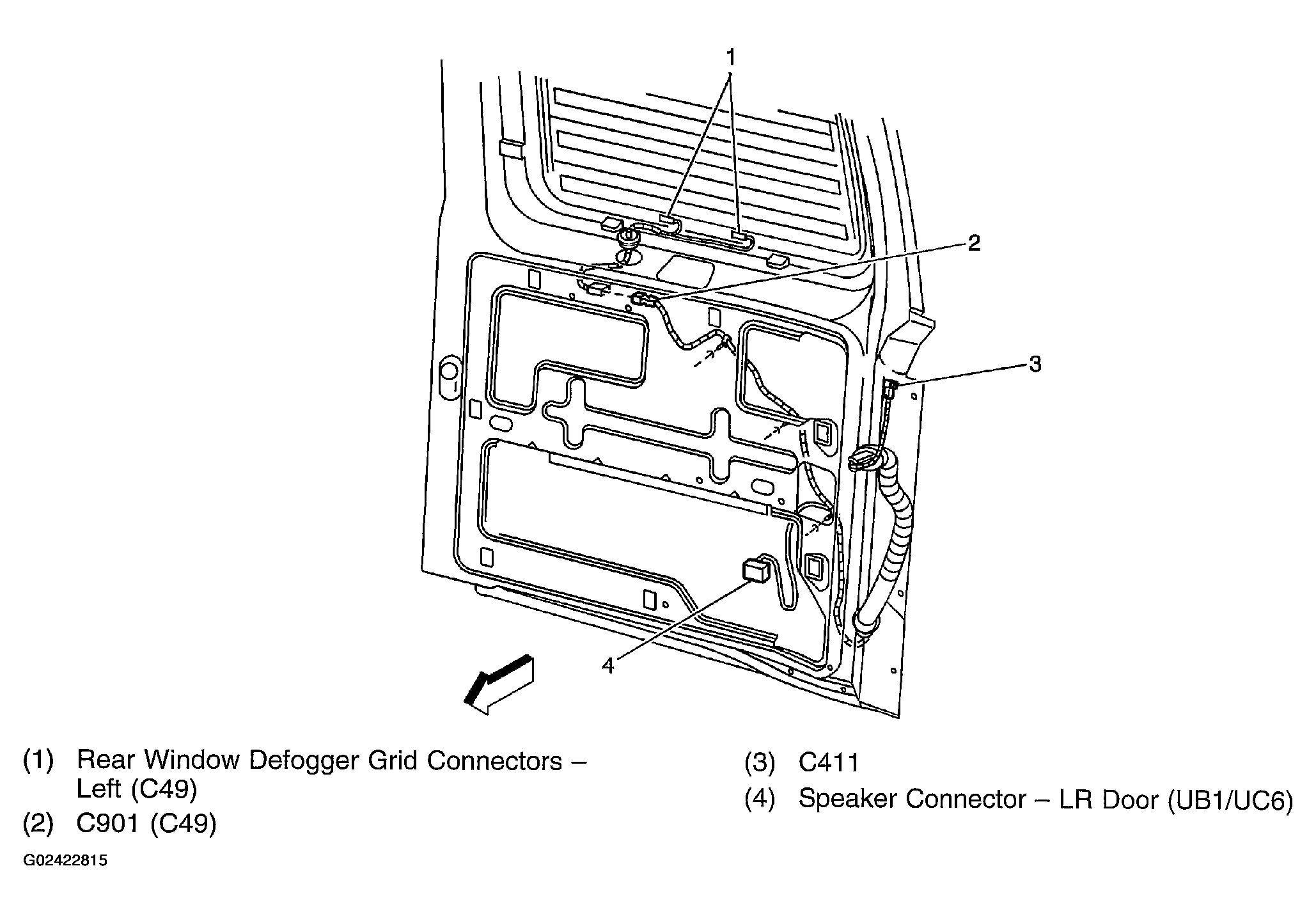

Fig 3: Identifying Left Rear Cargo Door Harness Routing (Passenger/Cargo)

Courtesy of GENERAL MOTORS CORP.

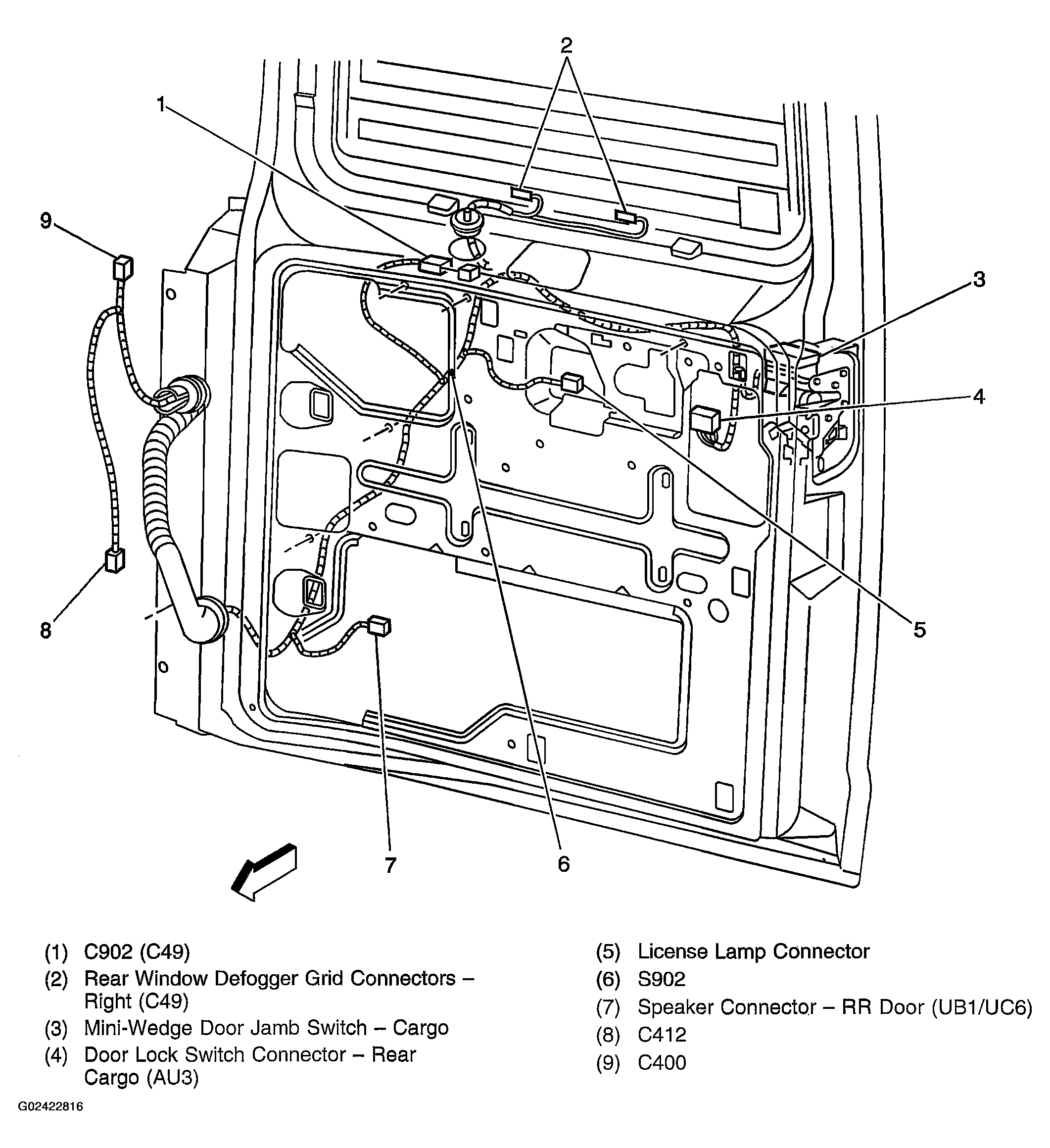

Fig 4: Identifying Right Rear Cargo Door Harness Routing (Passenger/Cargo)

Courtesy of GENERAL MOTORS CORP.
