Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front grille from the vehicle. Refer to GRILLE REPLACEMENT (UPLEVEL) or GRILLE REPLACEMENT (BASE) .
Disconnect the electrical connector from the air temperature sensor.
Remove the push pin retainer (1) from the air temperature sensor bracket (2).

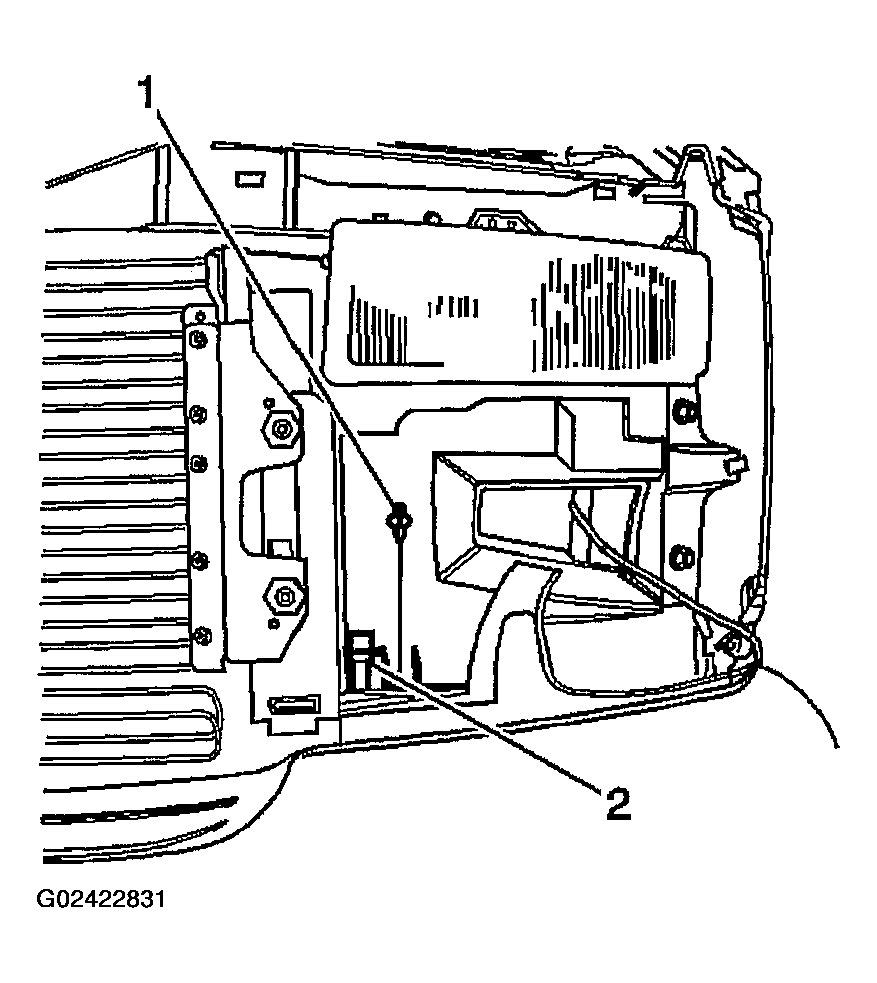

Fig 1: Removing Ambient Temperature Sensor
Courtesy of GENERAL MOTORS CORP.
