Removal Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

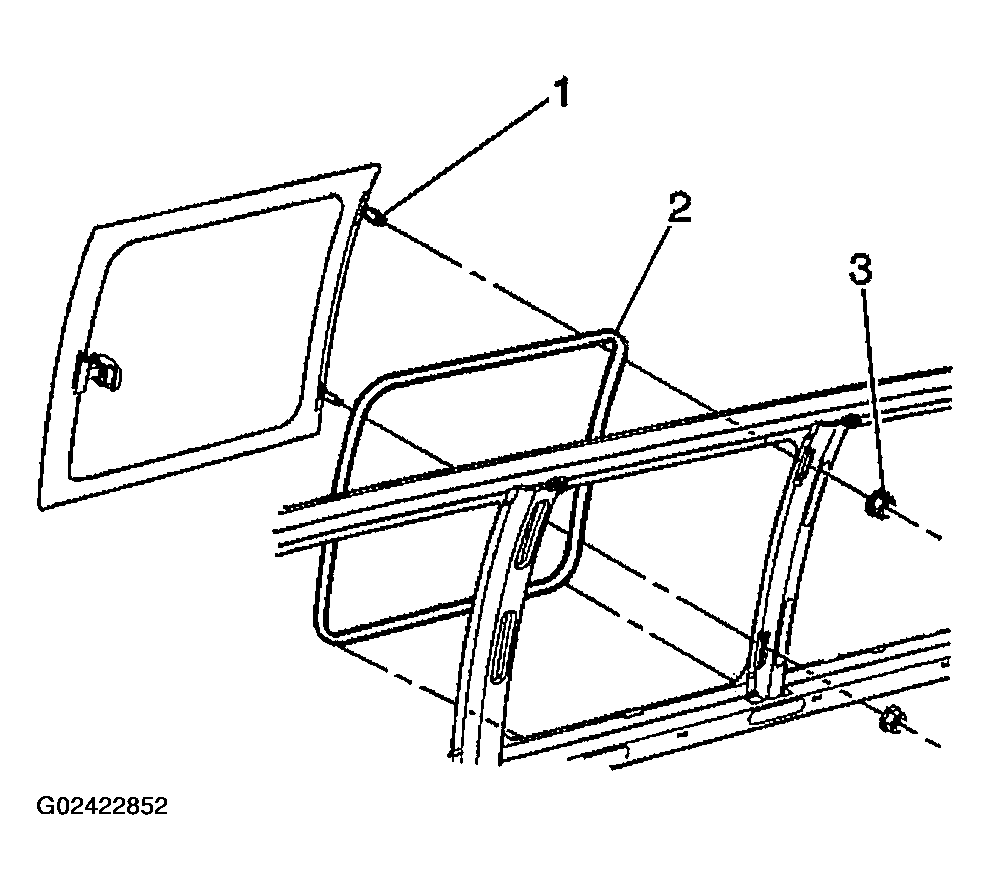

The latched side window is a 1 piece assembly that includes the following components;
- The window
- The hinges
- The latch assembly
WARNING:
Refer to GLASS & SHEET METAL HANDLING CAUTION
.
- Use safety glasses and gloves.
- Remove the screws that retain the latch to the vehicle.
- Remove the nuts (3) that retain the hinge to the vehicle.
- Remove the window assembly from the vehicle.
Do not replace the weatherstrip (2) unless the weatherstrip is damaged.
