Auxiliary Body Control Module Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

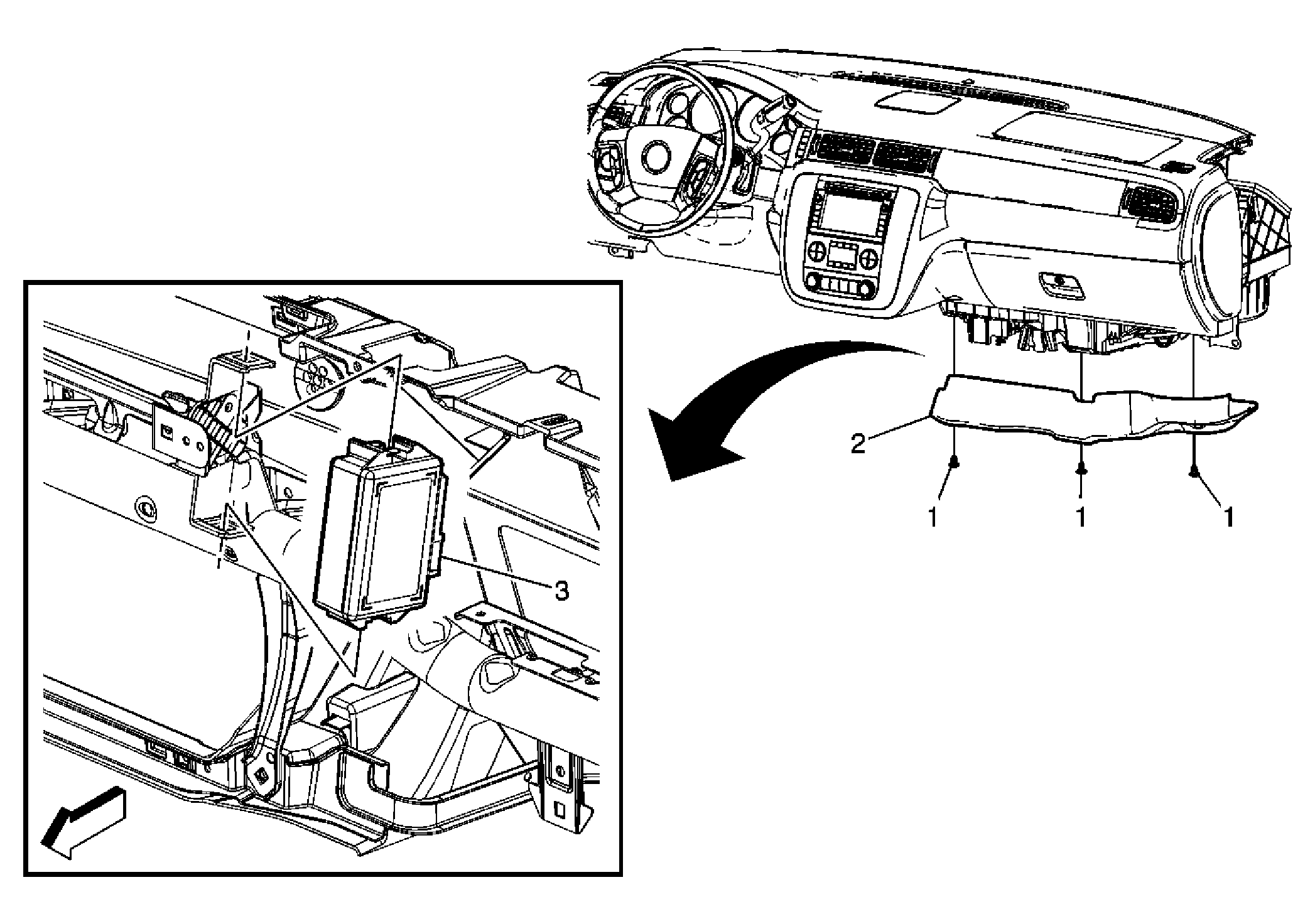

Fig 1: View Of Body Control Module, Instrument Panel Lower Trim Panel Insulator & Screws

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Lower Trim Panel Insulator Screws (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Instrument Panel Lower Trim Panel Insulator
3	Body Control Module Tip: Disconnect the electrical connectors. Press on the tabs to release the auxiliary body control module.
