Auxiliary Body Control Module (XBCM) C2 (Export)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

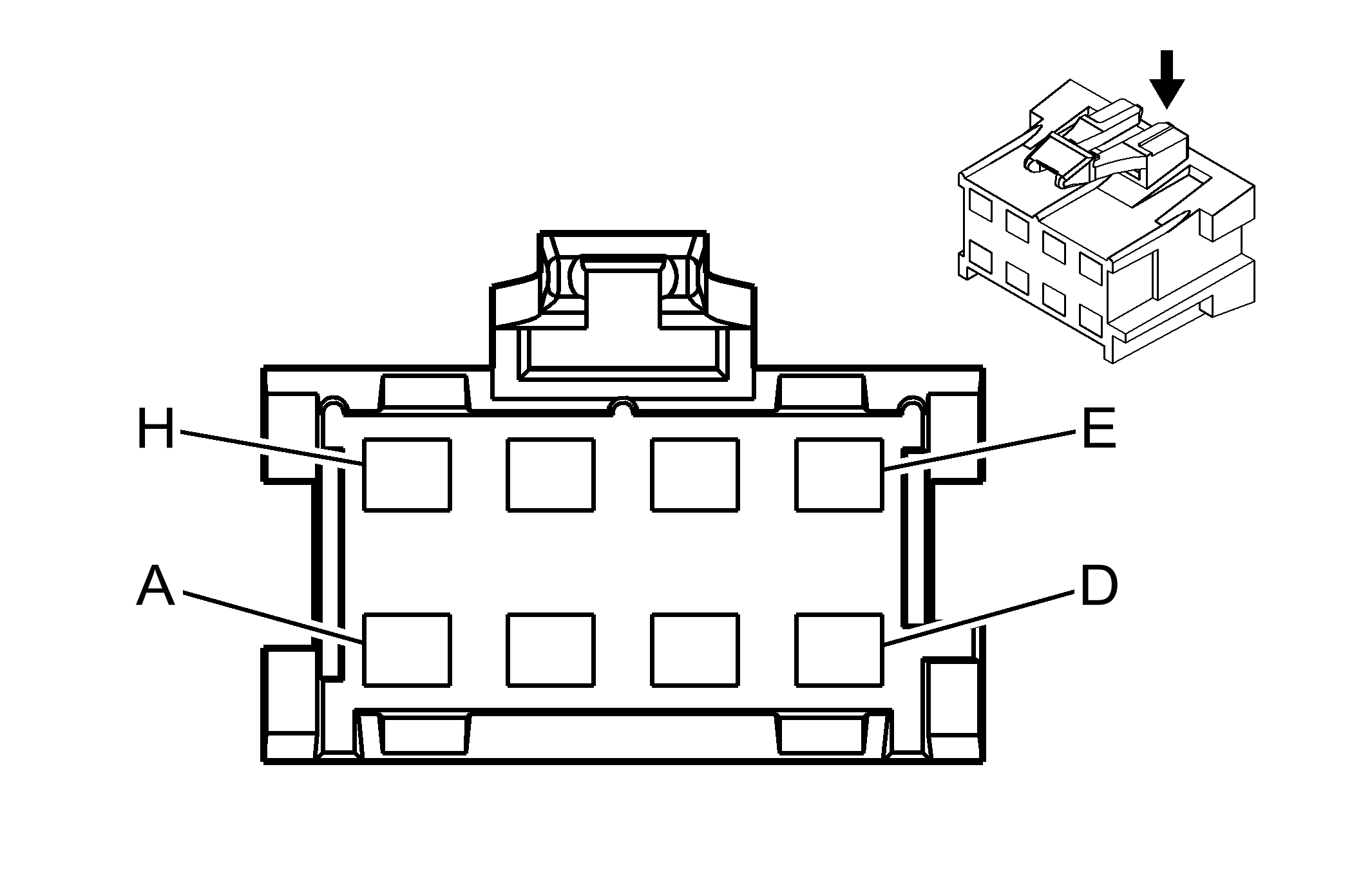

Fig 1: Auxiliary Body Control Module (XBCM) C2 (Export) Connector End View

Courtesy of GENERAL MOTORS CORP.

Auxiliary Body Control Module (XBCM) C2 (Export) Connector Parts Information

Connector Part Information

OEM: 15357040
Service: 12110626
Description: 8-Way F Metri-Pack 280 (L-GY)

Terminal Part Information

Terminal/Tray: 12110844/4
Core/Insulation Crimp: Pins A, B - C/A
Core/Insulation Crimp: Pins G, H - E/A
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Auxiliary Body Control Module (XBCM) C2 (Export) Connector Terminal Identification

Pin	Wire Color	Circuit No.	Function
A	L-BU	1620	CHMSL Supply Voltage
B	RD/WH	4540	Battery Positive Voltage
C-F	-	-	Not Used
G	OG	122	Rear Fog Lamp Supply Voltage
H	PU	7142	Trailer Fog Lamp
