Data Communication Component Views

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

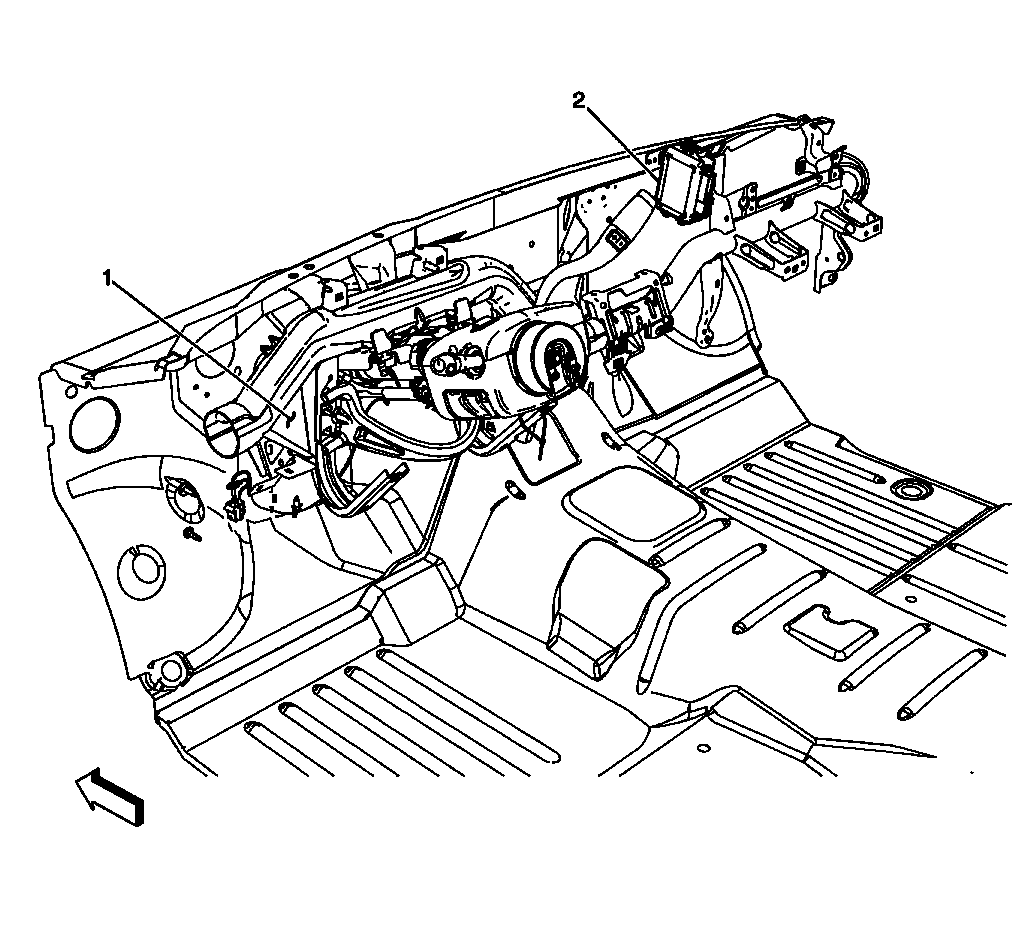

Fig 1: Behind the I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Control Module (BCM)
2	Auxiliary Body Control Module (XBCM) (Export)

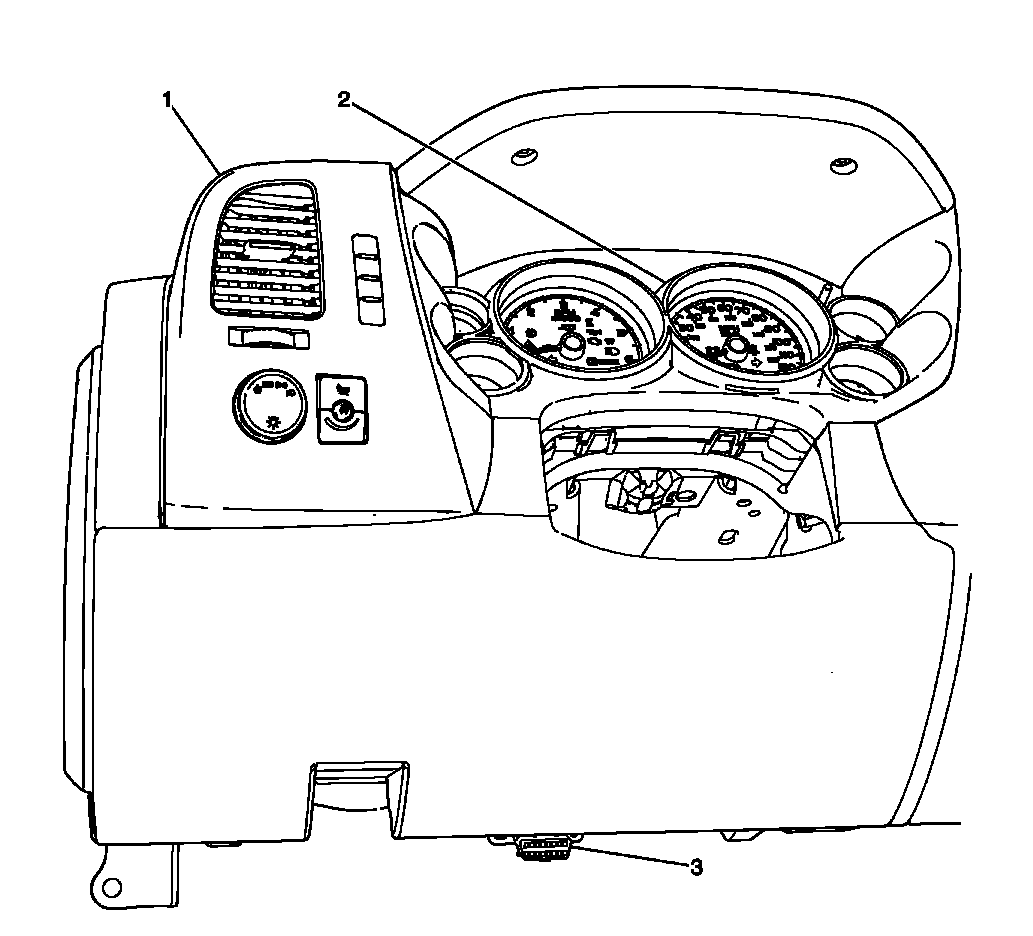

Fig 2: Below the Driver Knee Bolster

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Trim
2	Instrument Panel Cluster
3	Data Link Connector (DLC)

Fig 3: Below the I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Trim
2	I/P Cluster Trim
3	Floor Panel
4	Junction Block - Left I/P
5	Body Control Module (BCM)
6	Transfer Case Shift Control Module
7	Fuse Block - I/P

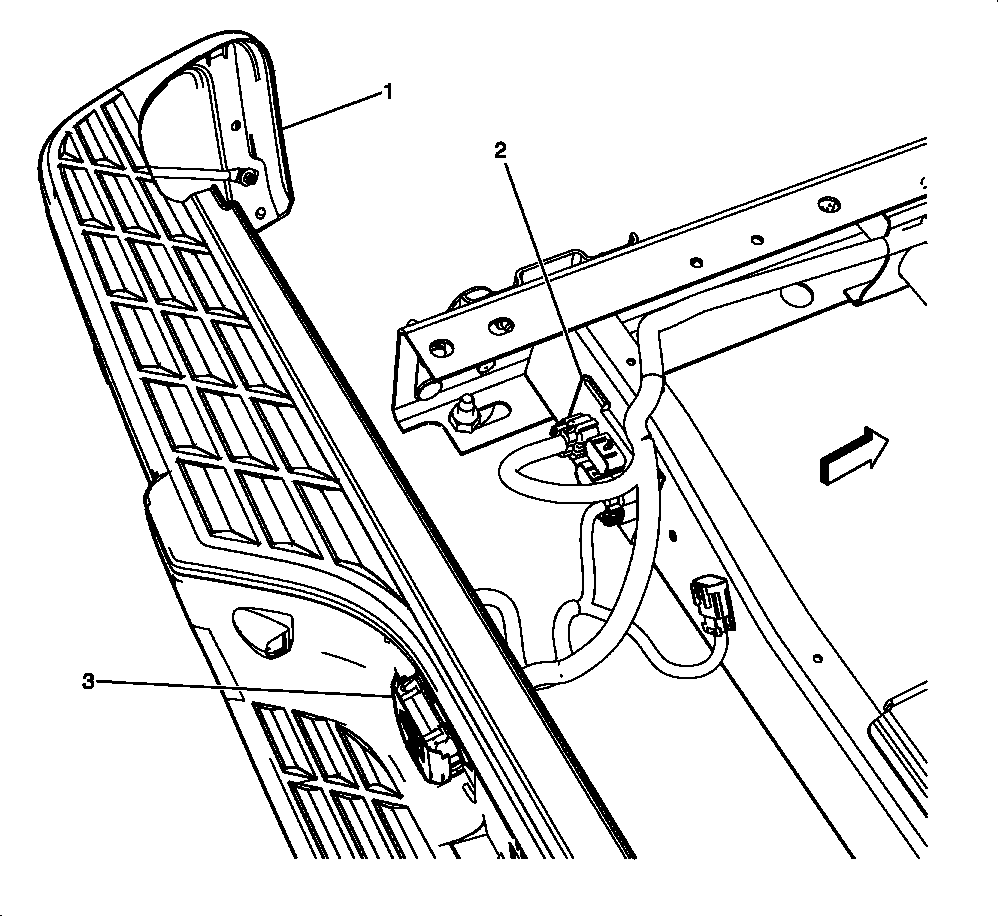

Fig 4: Left Rear of the Chassis Frame

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Bumper
2	Junction Block - Rear Lamps
3	Terminator Resistor
4	Trailer Connector (UY7)
