Remote Function Component Views
WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

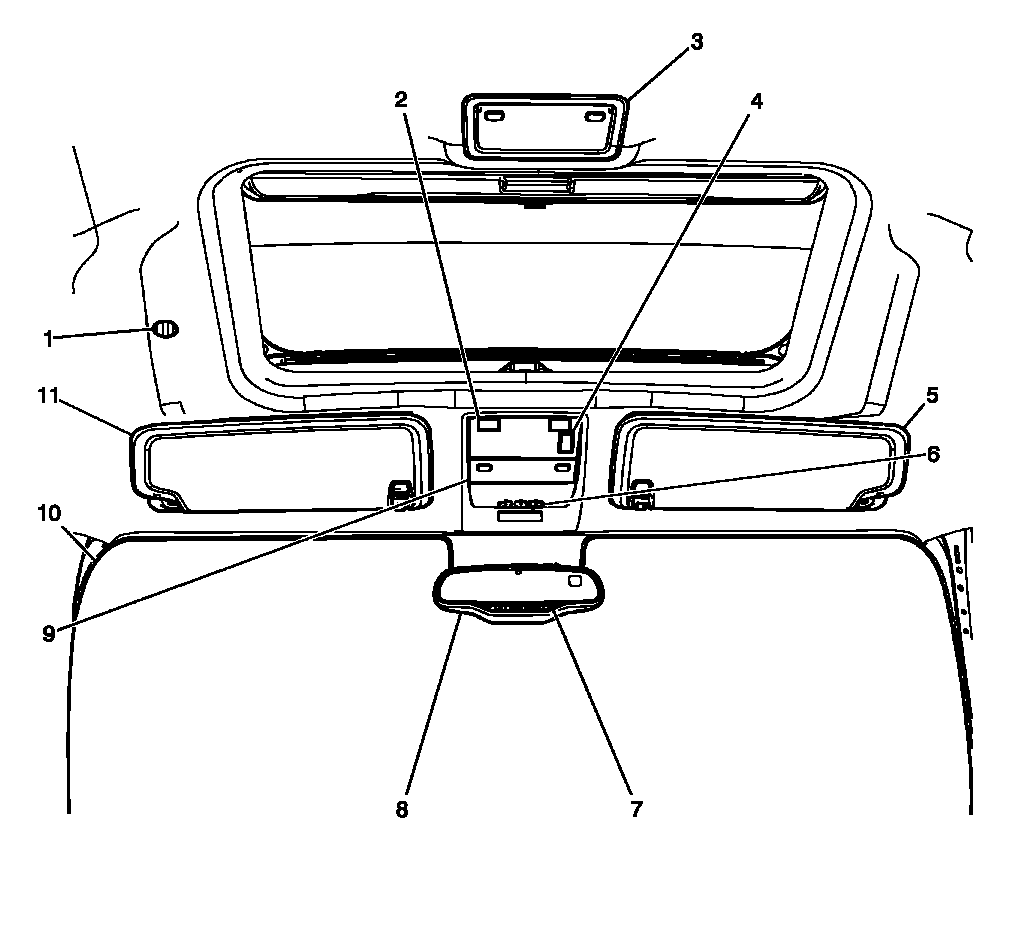

| Callout |
Component Name |
| 1 |
Inside Air Temperature Sensor - Front (CJ2) |
| 2 |
Cellular Microphone (UE1/U3U/UVB) |
| 3 |
Courtesy/Reading Lamps - Rear (Extended Cab/Crew Cab) |
| 4 |
Sunroof Switch (CF5) |
| 5 |
Sunshade - Right (DH6) |
| 6 |
Garage Door Opener (UG1) |
| 7 |
Onstar Button Assembly |
| 8 |
Inside Rearview Mirror (ISRVM) |
| 9 |
Courtesy/Reading Lamps - Front |
| 10 |
Windshield |
| 11 |
Sunshade - Left (DH6) |
Courtesy of GENERAL MOTORS CORP.

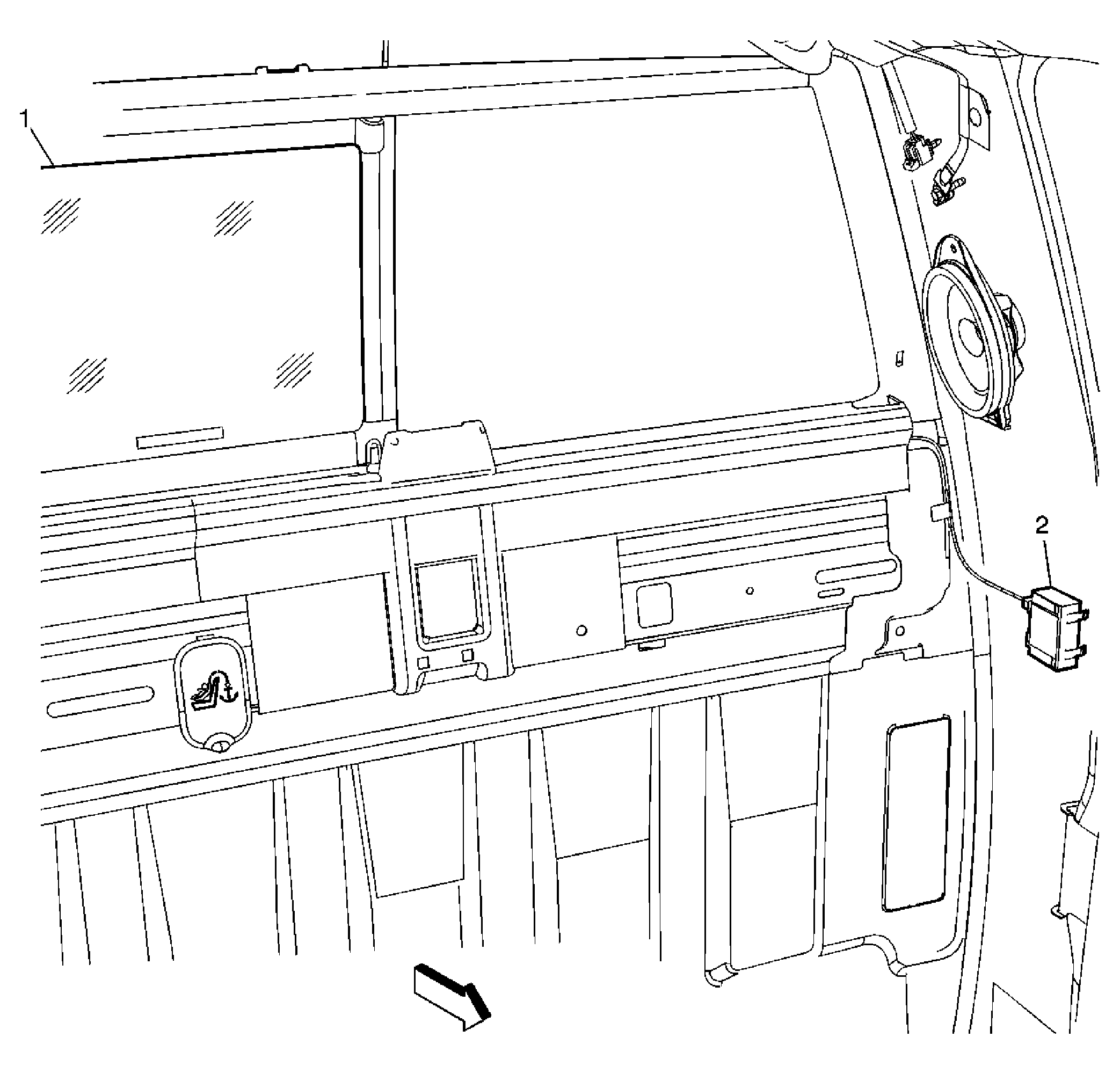

| Callout |
Component Name |
| 1 |
Rear Window |
| 2 |
Remote Control Door Lock Receiver (RCDLR) (AP3/AP8) |
