Object Detection Component Views

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

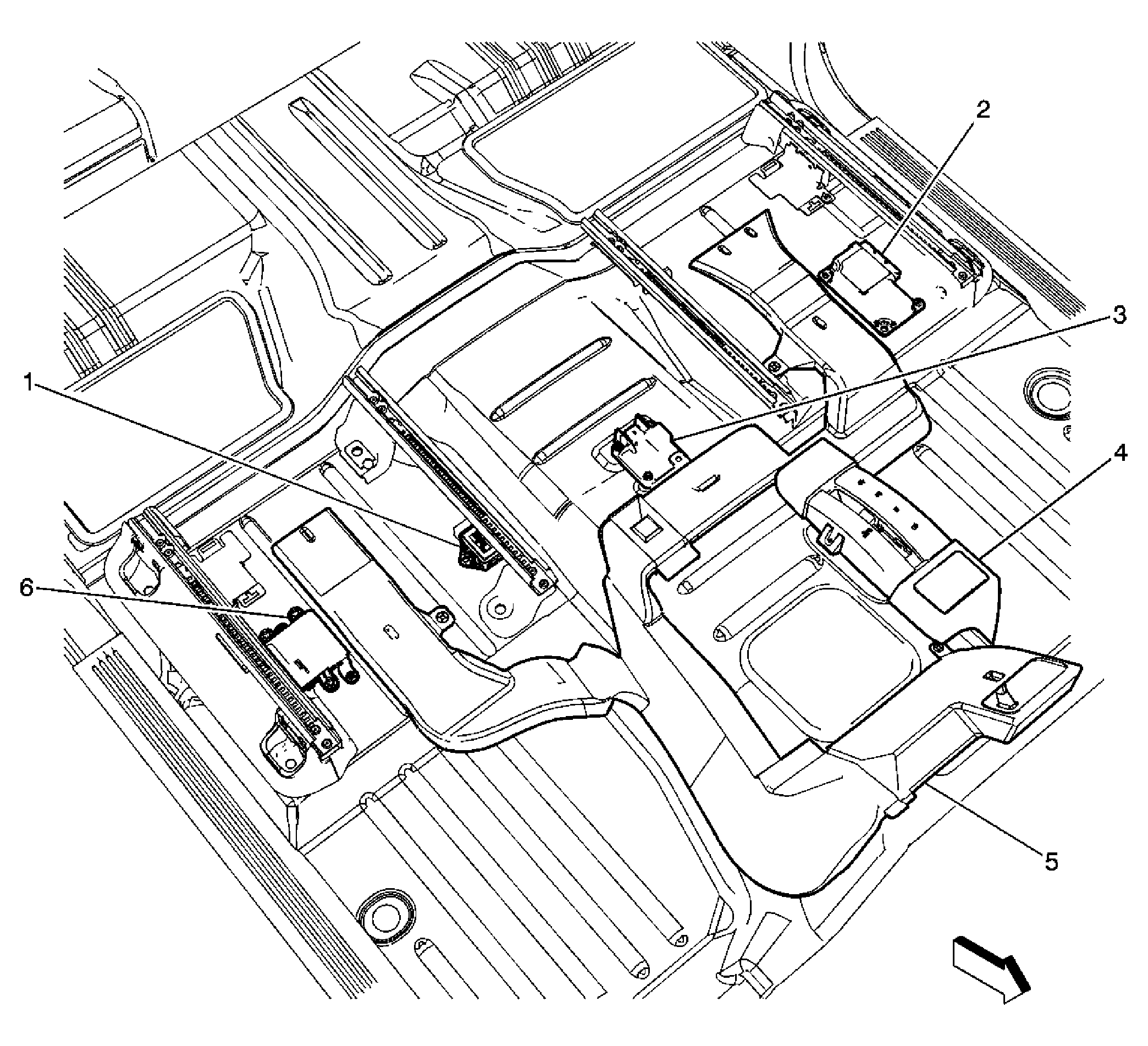

Fig 1: Under the Front Seats

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Yaw Rate and Lateral Acceleration Sensor (JL4)
2	Inflatable Restraint Sensing and Diagnostic Module (SDM)
3	Inflatable Restraint Vehicle Rollover Sensor (ASF)
4	Shifter Housing
5	Rear HVAC Outlet Duct
6	Rear Object Sensor Control Module (UD7)

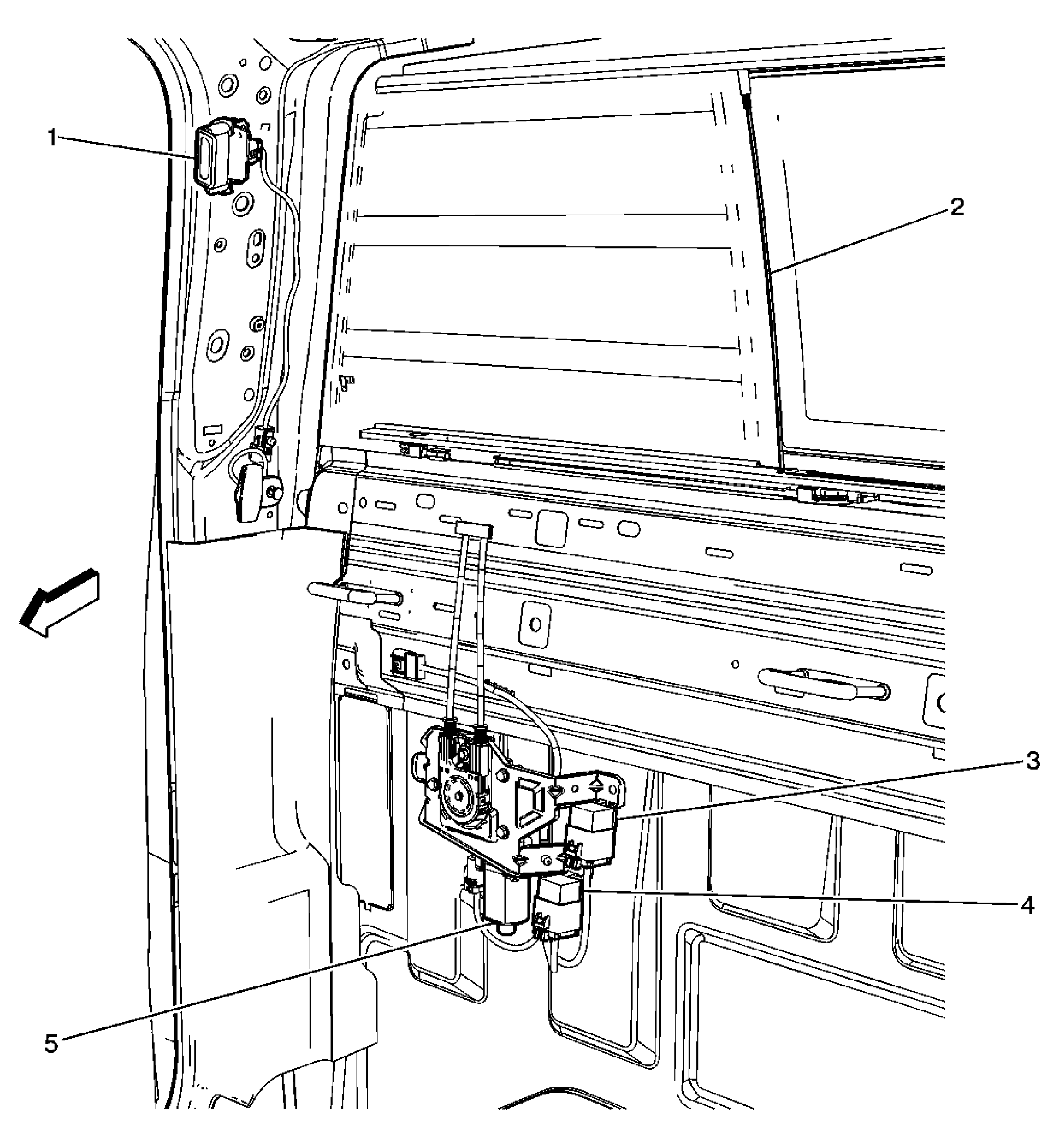

Fig 2: Right Rear of the Passenger Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Information Center Telltale Assembly (UD7)
2	Defogger Grid
3	Sliding Rear Window Open Relay (A48)
4	Sliding Rear Window Close Relay (A48)
5	Sliding Rear Window Motor (A48)

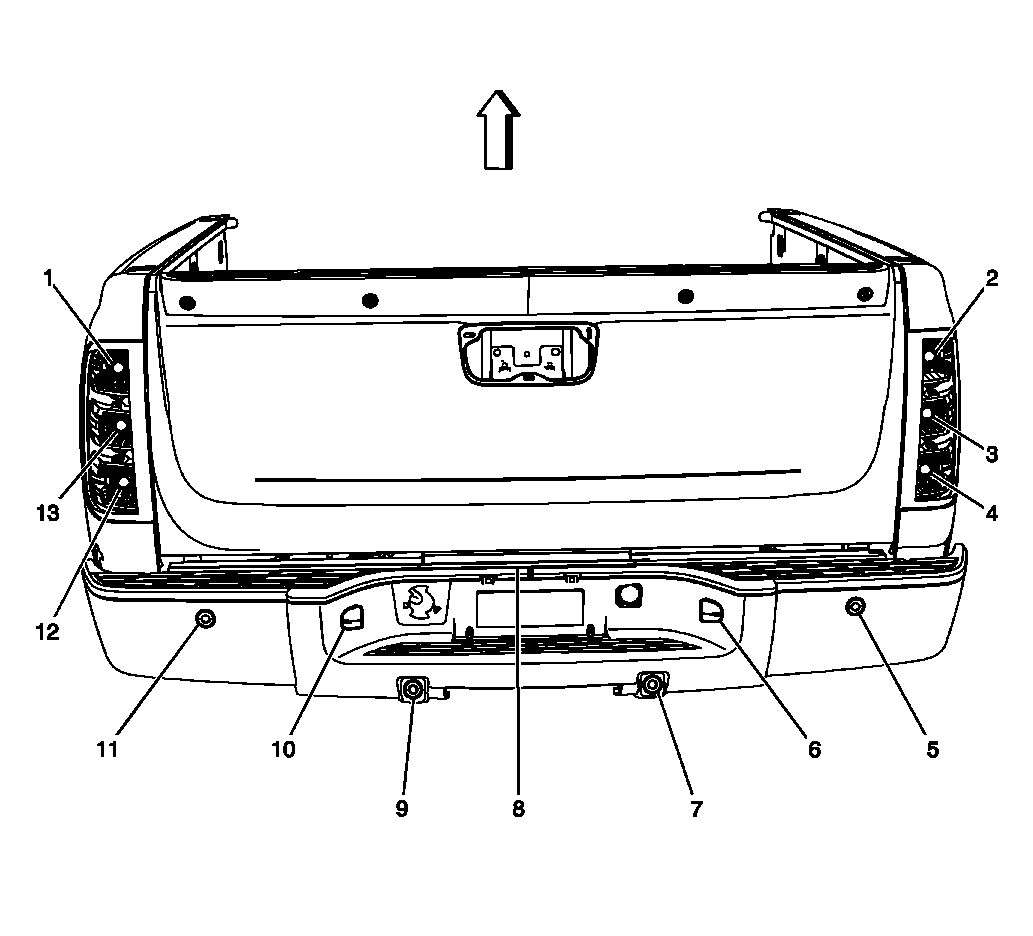

Fig 3: Rear of the Vehicle (X88)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tail/Stop and Turn Signal Lamp - Upper Left
2	Tail/Stop and Turn Signal Lamp - Upper Right
3	Backup Lamp - Right Rear
4	Tail/Stop and Turn Signal Lamp - Lower Right
5	Object Sensor - Right Rear Corner (UD7)
6	License Lamp - Right
7	Object Sensor - Right Rear Middle (UD7)
8	Object Sensor - Left Rear Middle (UD7)
9	License Lamp - Left
10	Object Sensor - Left Rear Corner (UD7)
11	Tail/Stop and Turn Signal Lamp - Lower Left
12	Backup Lamp - Left Rear

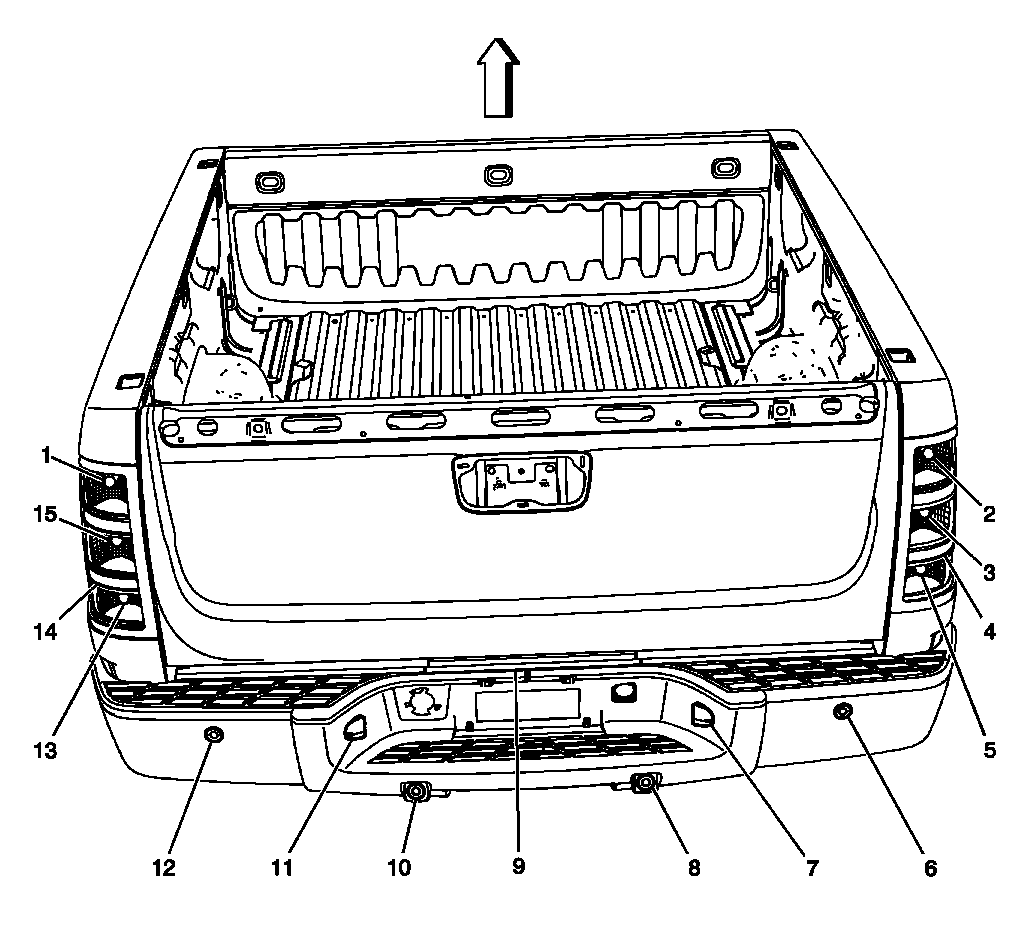

Fig 4: Rear of the Vehicle (Z88)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tail/Stop and Turn Signal Lamp - Upper Left
2	Tail/Stop and Turn Signal Lamp - Upper Right
3	Tail/Stop and Turn Signal Lamp - Lower Right
4	Marker Lamp - Right Rear
5	Backup Lamp - Right Rear
6	Object Sensor - Right Rear Corner (UD7)
7	License Lamp - Right
8	Object Sensor - Right Rear Middle (UD7)
9	Object Sensor - Left Rear Middle (UD7)
10	License Lamp - Left
11	Object Sensor - Left Rear Corner (UD7)
12	Backup Lamp - Left Rear
13	Marker Lamp - Left Rear
14	Tail/Stop and Turn Signal Lamp - Lower Left
