Object Sensor - Left Rear Middle

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

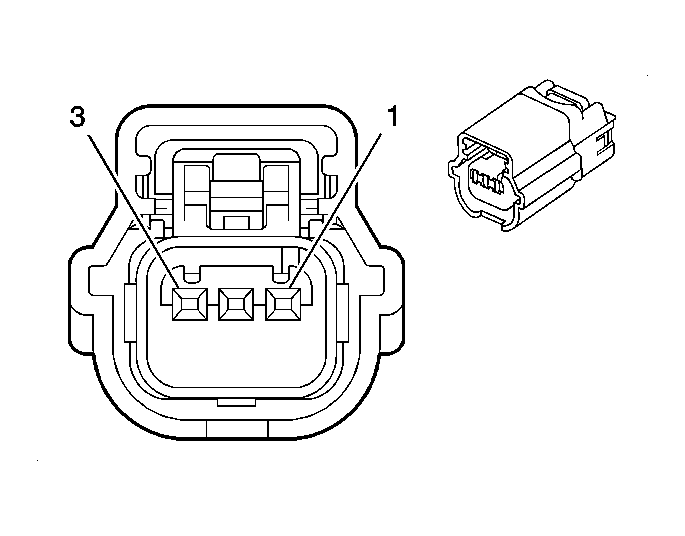

Fig 1: Object Sensor - Left Rear Middle Connector End View

Courtesy of GENERAL MOTORS CORP.

Object Sensor - Left Rear Middle Connector Parts Information

Connector Part Information

OEM: 13521095
Service: 88988337
Description: 3-Way F Sealed Series (BK)

Terminal Part Information

Terminal/Tray: 7116-4618-02/14
Core/Insulation Crimp: P/P
Release Tool/Test Probe: J-38125-215/J-35616-64B (L-BU)

Object Sensor - Left Rear Middle Connector Terminal Identification

Pin	Wire Color	Circuit No.	Function
1	0.5 L-BU	2374	Object Sensor Supply Voltage
2	0.5 GY	2379	Low Reference
3	0.5 OG	2376	LR Middle Object Sensor Signal
