Rear Object Sensor Control Module X1

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

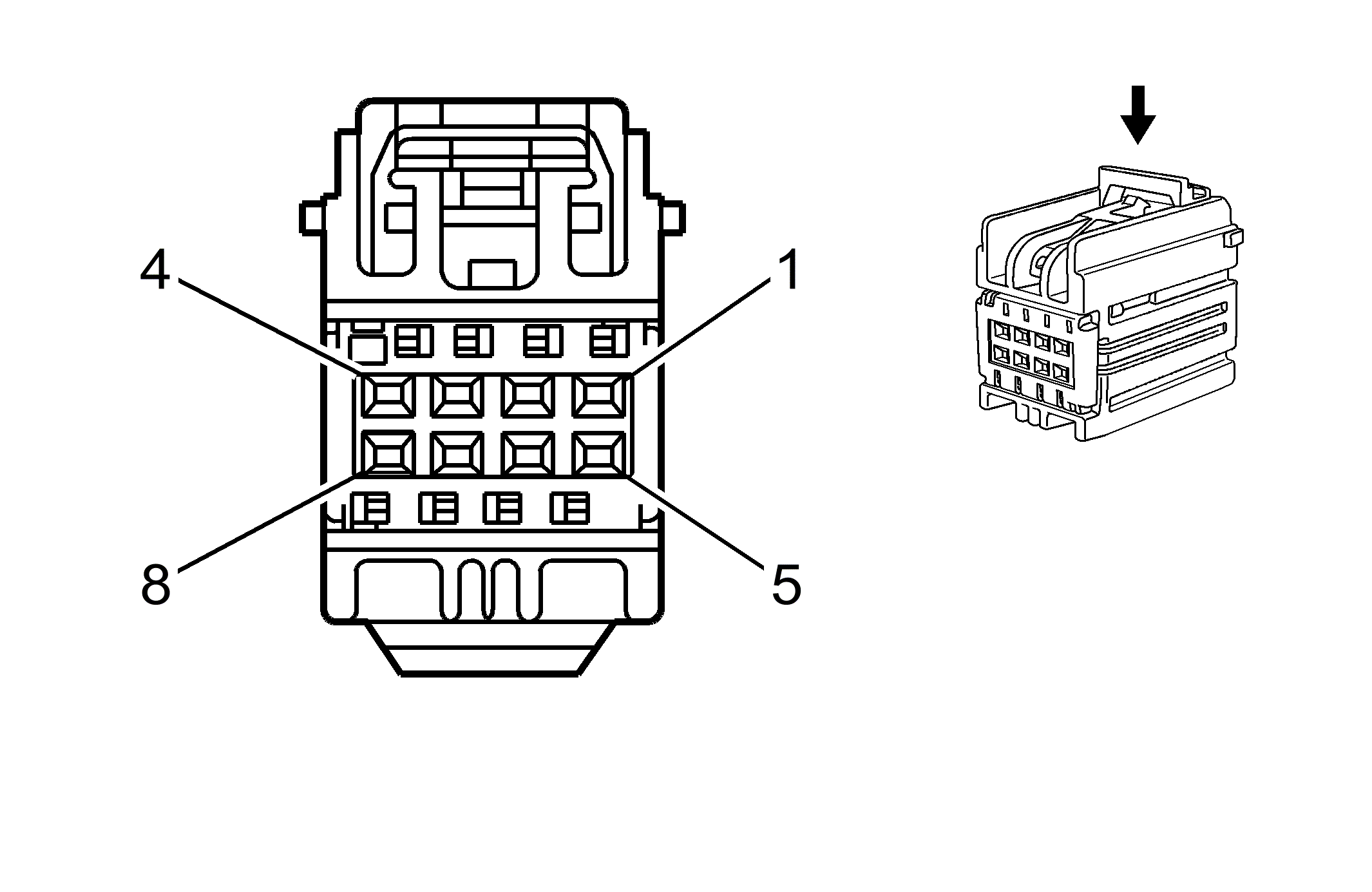

Fig 1: Rear Object Sensor Control Module X1 Connector End View

Courtesy of GENERAL MOTORS CORP.

Rear Object Sensor Control Module X1 Connector Parts Information

Connector Part Information

OEM: 13551679
Service: 19115653
Description: 8-Way F Kaizen 0.64 Series (GY)

Terminal Part Information

Terminal/Tray: 7116-4618-02/14
Core/Insulation Crimp: P/P
Release Tool/Test Probe: J-38125-215/J-35616-64B (L-BU)

Rear Object Sensor Control Module X1 Connector Terminal Identification

Pin	Wire Color	Circuit No.	Function
1	0.5 PU	2378	RR Corner Object Sensor Signal
2	0.5 D-GN	2377	RR Middle Object Sensor Signal
3	0.5 OG	2376	LR Middle Object Sensor Signal
4	0.5 D-BU	2374	Object Sensor Supply Voltage
5	0.5 YE	2375	LR Corner Object Sensor Signal
6-7	-	-	Not Used
8	0.5 GY	2379	Low Reference
