HVAC Control Module Replacement

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

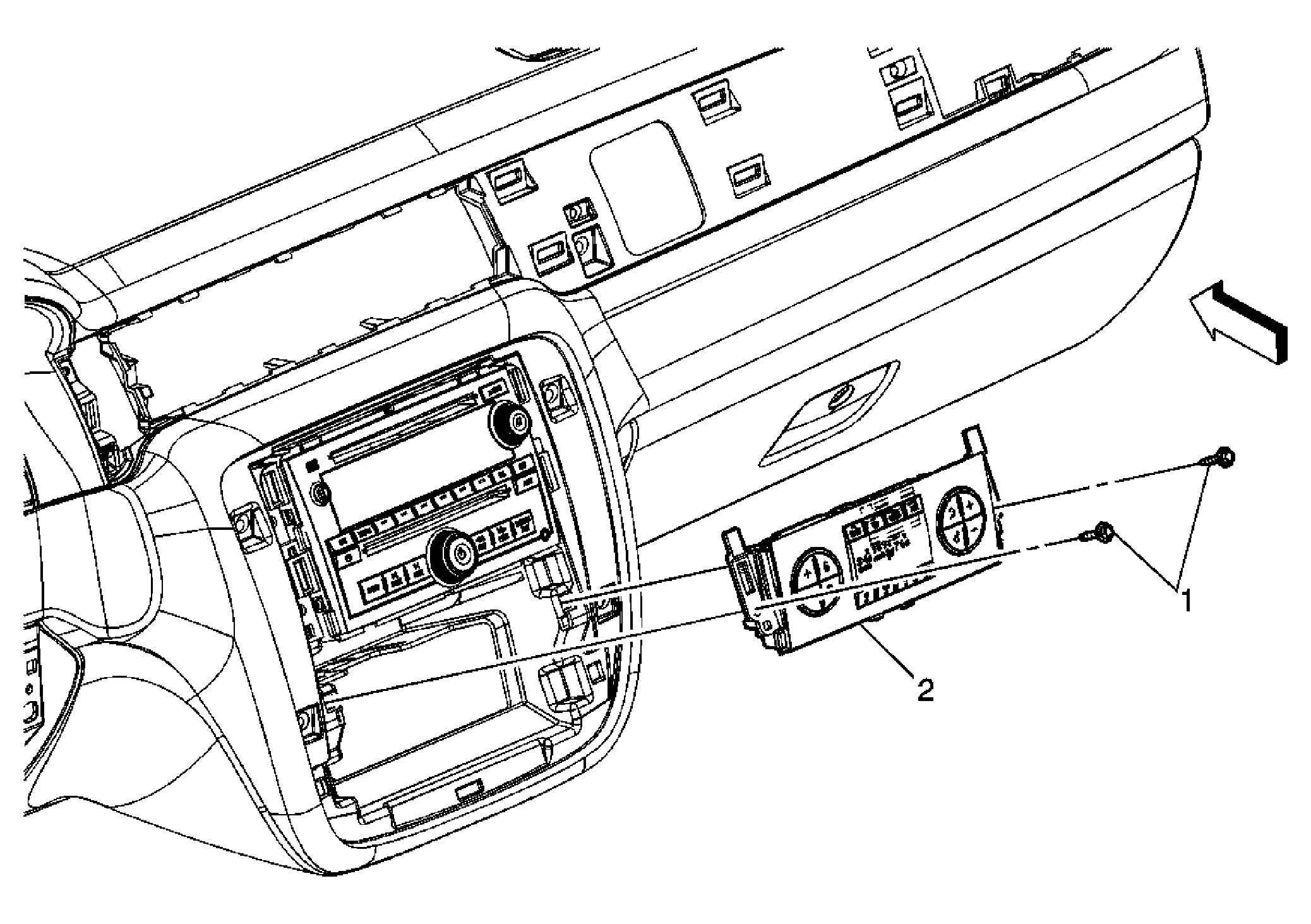

Fig 1: View Of HVAC Control Module & Screws

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the instrument panel (I/P) accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement (without RPO SLT) or Instrument Panel Accessory Trim Plate Replacement (with RPO SLT) . Disconnect the electrical connectors.
1	HVAC Control Module Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 1.5 N.m (13 lb in)
2	HVAC Control Module Procedure: A replacement HVAC control module must be programmed. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure

Remove the instrument panel (I/P) accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement (without RPO SLT) or Instrument Panel Accessory Trim Plate Replacement (with RPO SLT) .
Disconnect the electrical connectors.

HVAC Control Module Screw (Qty: 2)

NOTE: Refer to Fastener Notice .

Tighten: 1.5 N.m (13 lb in)

HVAC Control Module
Procedure:
A replacement HVAC control module must be programmed. Refer to Control Module References .
