Stub Shaft Housing Replacement

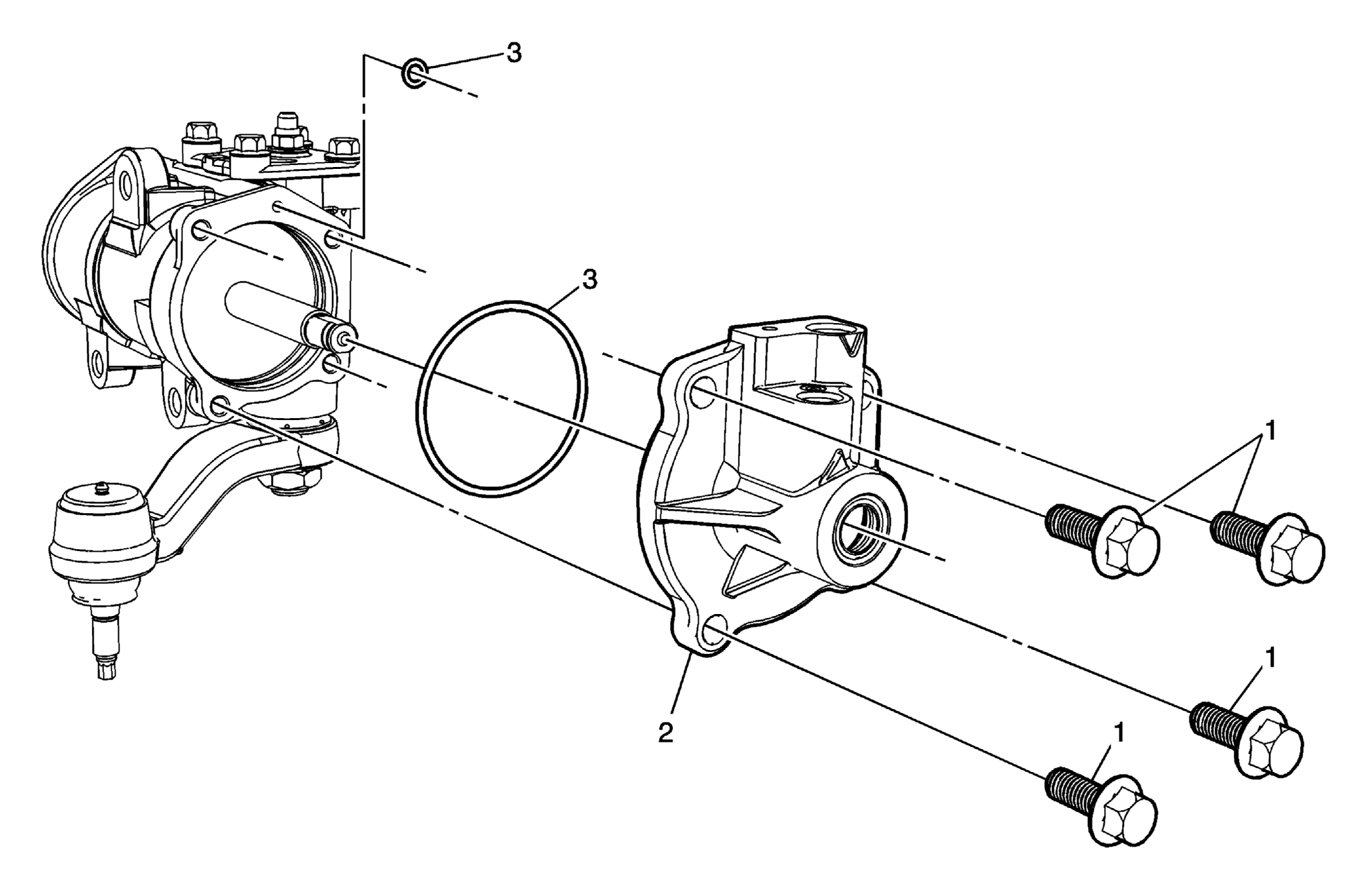

Fig 1: View Of Stub Shaft Housing, O-Ring & Bolt

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the power steering gear. Refer to Steering Gear Replacement (Recirculating Ball Without LMM) , Steering Gear Replacement (HP2) , Steering Gear Replacement (Hydraulic Rack and Pinion) .
1	Stub Shaft Housing Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 62 N.m (46 lb ft)
2	Stub Shaft Housing
3	Stub Shaft Housing O-Ring (Qty: 2) TIP: Grease the stub shaft housing O-Rings with the special grease supplied in the service kit.
