Installation Procedure

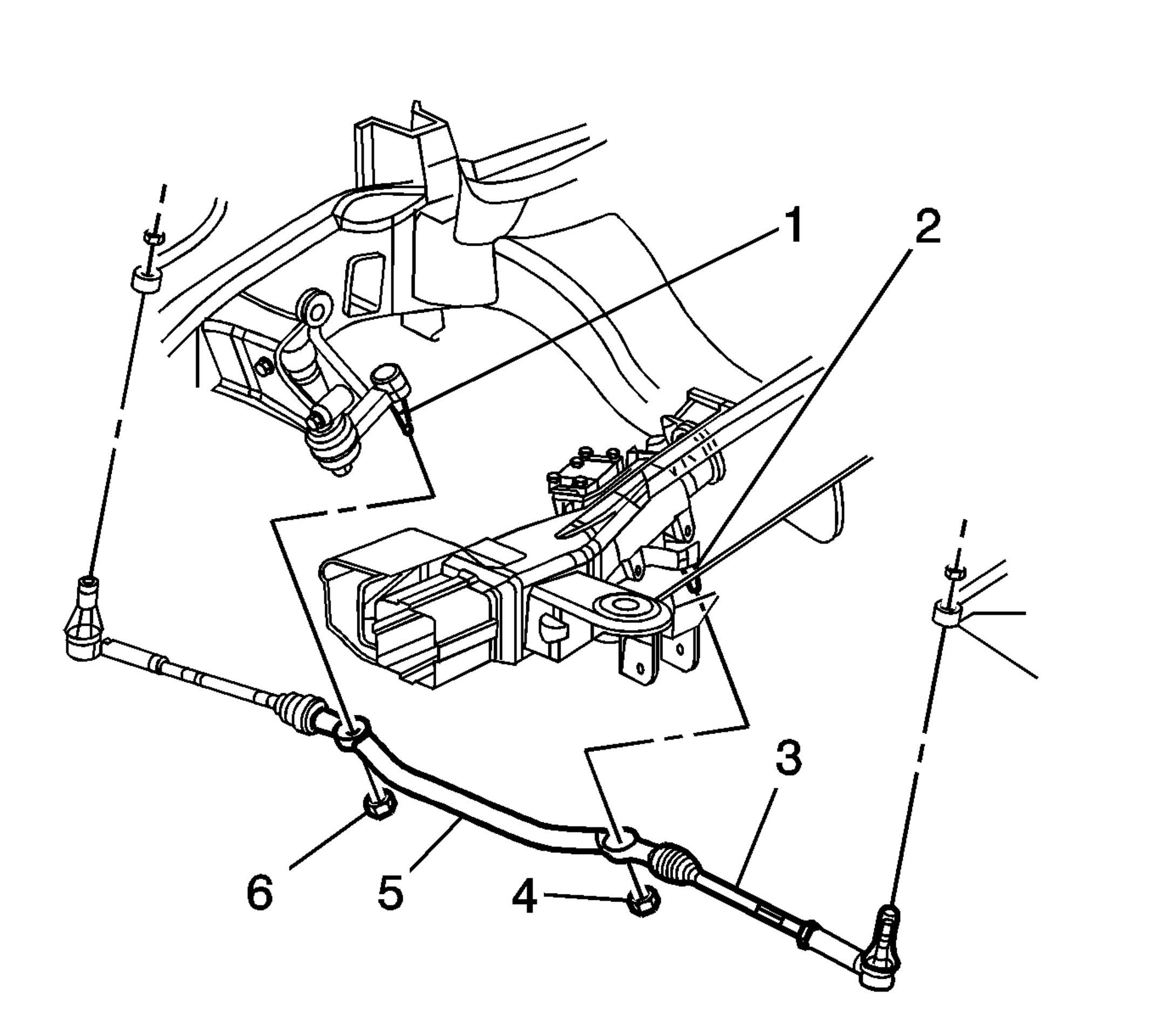

    Fig 1: View Of Idler Arm & Relay Rod
    GM1862675Courtesy of GENERAL MOTORS COMPANY
  1. Position the relay rod (5) in the vehicle.
  2. Install the pitman arm (2) to the relay rod (5).
  3. Install the idler arm (1) to the relay rod.
    4. CAUTION:

    Refer to Fastener Caution .

  4. Install a NEW pitman arm nut (4) and tighten to 62 N.m (46 lb ft).
  5. Install a NEW idler arm nut (6) and tighten to 62 N.m (46 lb ft).
  6. Install the steering linkage outer tie rods. Refer to Steering Linkage Outer Tie Rod Replacement .
  7. Install the steering linkage shock absorber to the relay rod, if equipped. Refer to Steering Linkage Shock Absorber Replacement .
  8. Install the engine shield, if equipped. Refer to Engine Shield Replacement .
  9. Measure the wheel alignment. Refer to Wheel Alignment Measurement .
  10. Adjust the front toe. Refer to Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment .
