Steering Linkage Outer Tie Rod Replacement

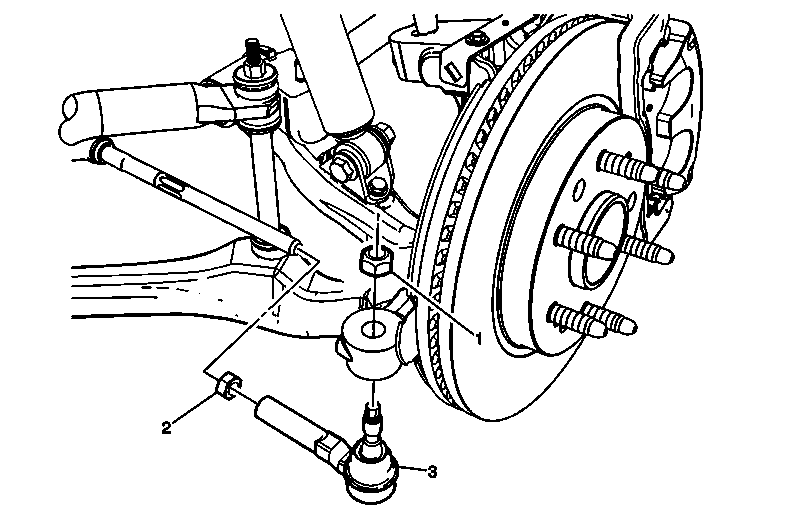

Fig 1: View Of Outer Tie Rod & Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front tire/wheel. Refer to Tire and Wheel Removal and Installation .
1	Steering Linkage Outer Tie Rod Nut CAUTION: Refer to Fastener Caution . Tighten 60 (44 lb ft)
2	Steering Linkage Inner Tie Rod Nut Procedure Only loosen the steering linkage inner tie rod nut. Do not remove it.
3	Steering Linkage Outer Tie Rod Procedure Use J 24319-B steering linkage and tie rod puller to separate the steering linkage outer tie rod from the steering knuckle. Inspect the steering linkage inner tie rod for bent or damaged threads. Repair or replace the steering linkage inner tie rod as necessary. Refer to Steering Linkage Inner Tie Rod Replacement . Clean the tapered surface of the steering knuckle. Lubricate the steering linkage inner tie rod threads with chassis lubricant. Refer to Fluid and Lubricant Recommendations . Adjust the front toe. Refer to Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment . Special Tools J 24319-B Steering Linkage and Tie Rod Puller
