Removal Procedure

  1. Remove the engine shield, if equipped. Refer to Engine Shield Replacement .

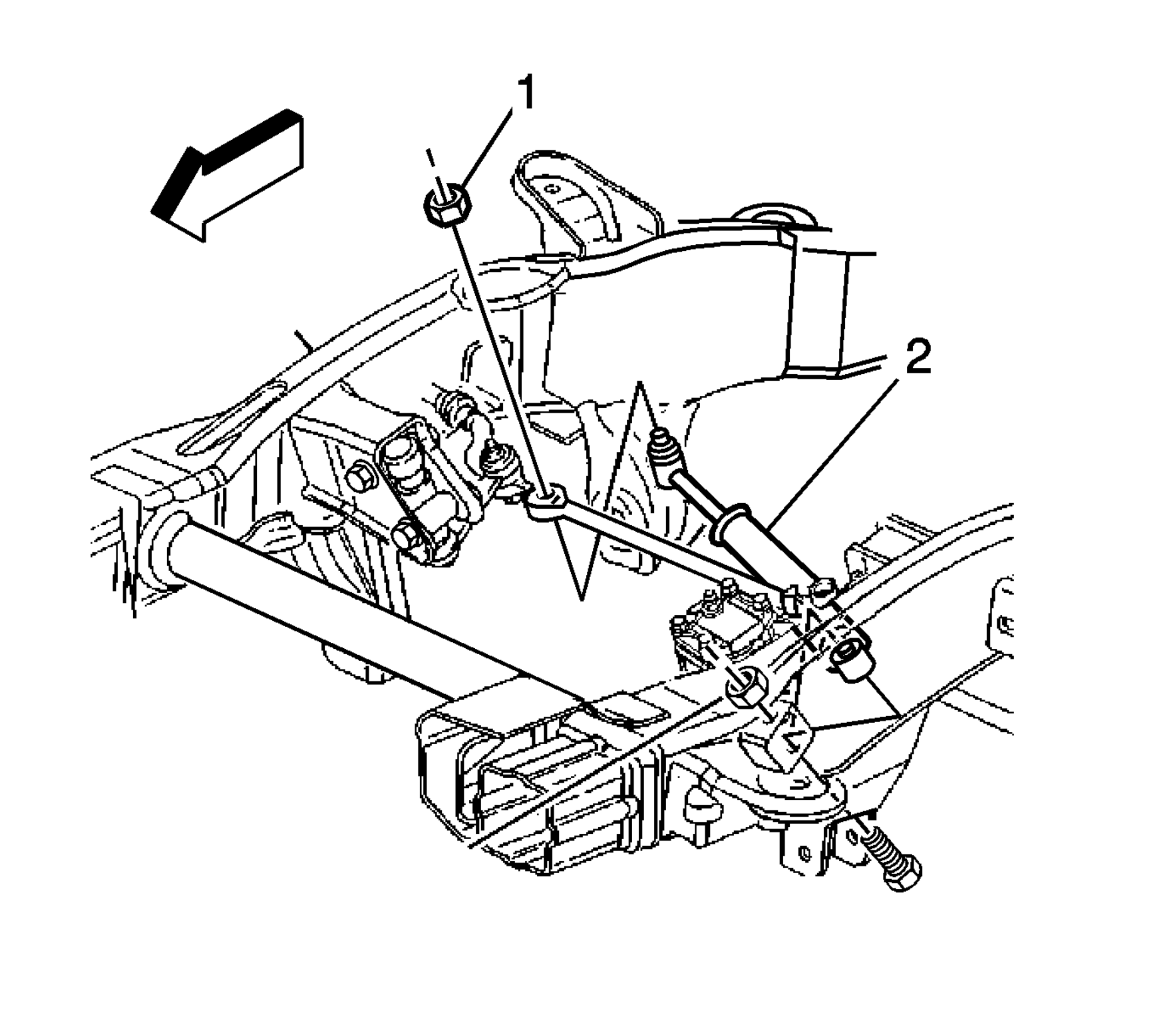

    2. Fig 1: View Of Linkage Shock Absorber
    GM1862839Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Discard the steering linkage shock absorber nut.

  2. Remove the steering linkage shock absorber nut (1) from the steering linkage shock absorber (2).
    3. Fig 2: View Of Steering Damper Ball Stud, Relay Rod & J 24319-B
    GM397364Courtesy of GENERAL MOTORS COMPANY
  3. Remove the steering linkage shock absorber from the relay rod using J 24319-B  steering linkage and tie rod puller.

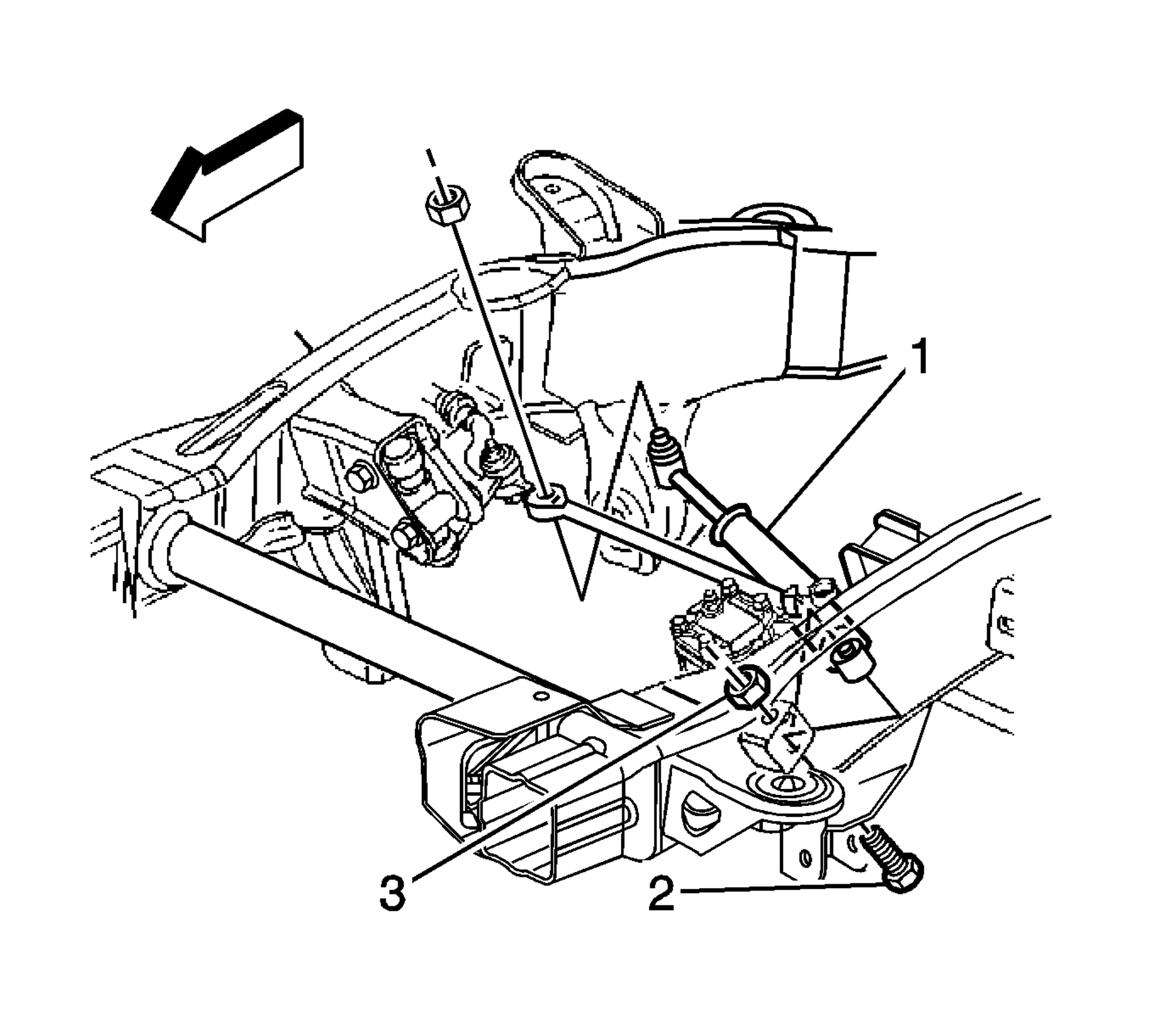

    4. Fig 3: View Of Linkage Shock Absorber
    GM1862840Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Discard the steering linkage shock absorber nut.

  4. Remove the steering linkage shock absorber bolt (2) and nut (3).
  5. Remove the steering linkage shock absorber (1) from the vehicle.
  6. Inspect the following parts:
    • The steering linkage shock absorber for leaks and damage
    • The steering linkage shock absorber bolt for damage or corrosion
