Special Tools

Illustration Tool Number/ Description

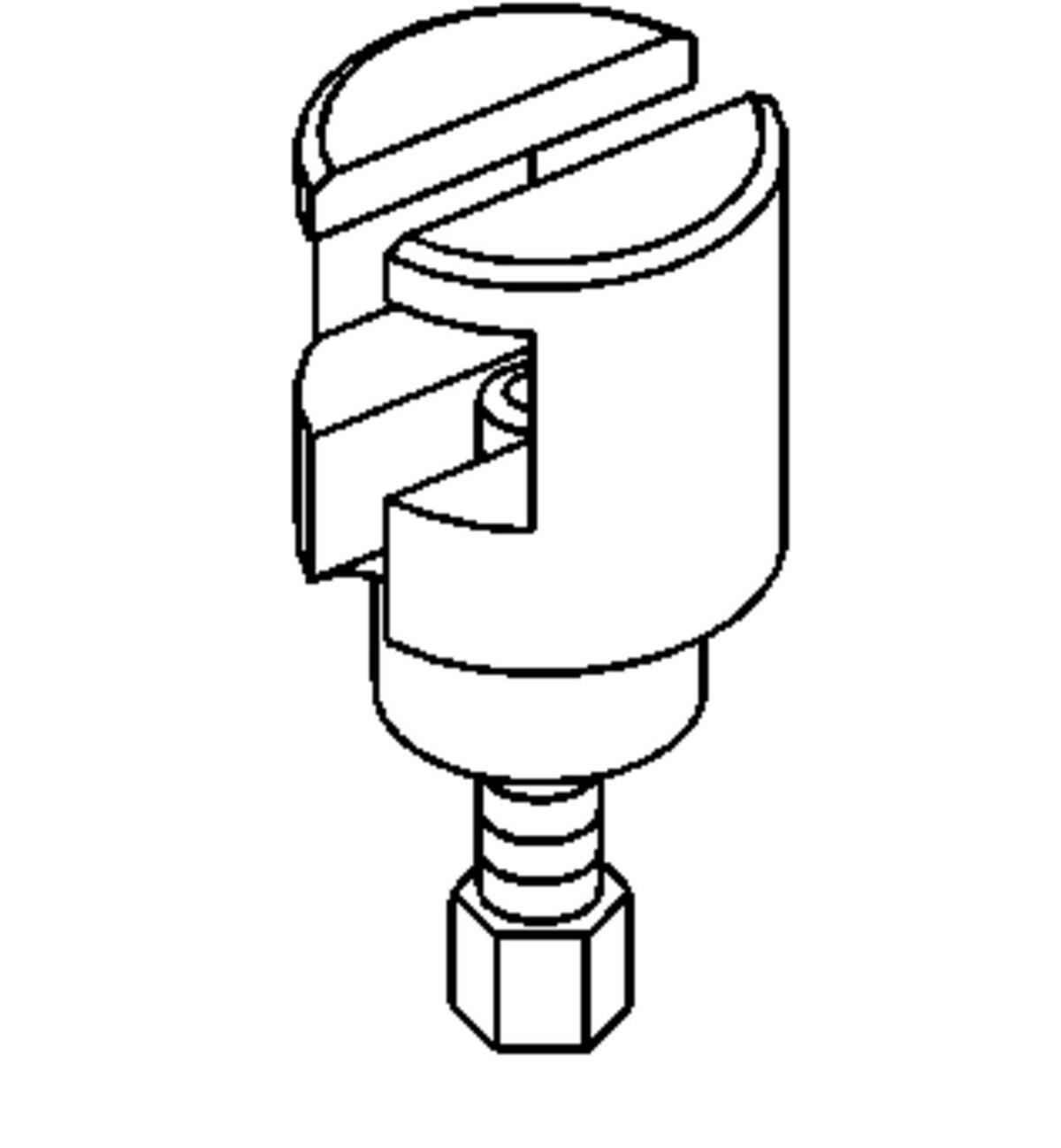

GM245882
 J 6632-01
Pitman Arm Puller
GM133
 J 24319-B
Steering Linkage and Tie Rod Puller
GM134
 J 29107-A
Pitman Arm Puller
GM283638
 J 34028
Inner Tie Rod Wrench

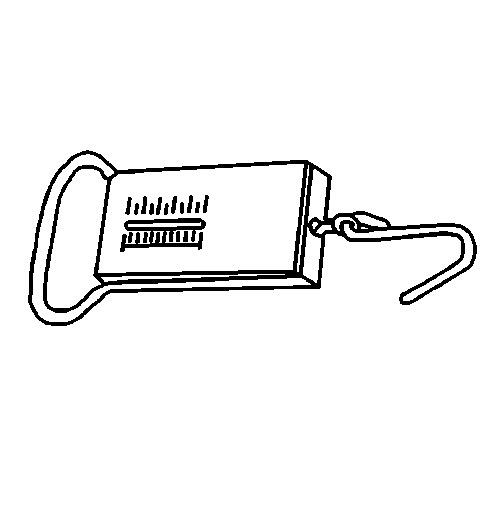

GM157140
 J 35999
Spring Scale
GM261779
 J 42640
Steering Column Anti-Rotation Pin

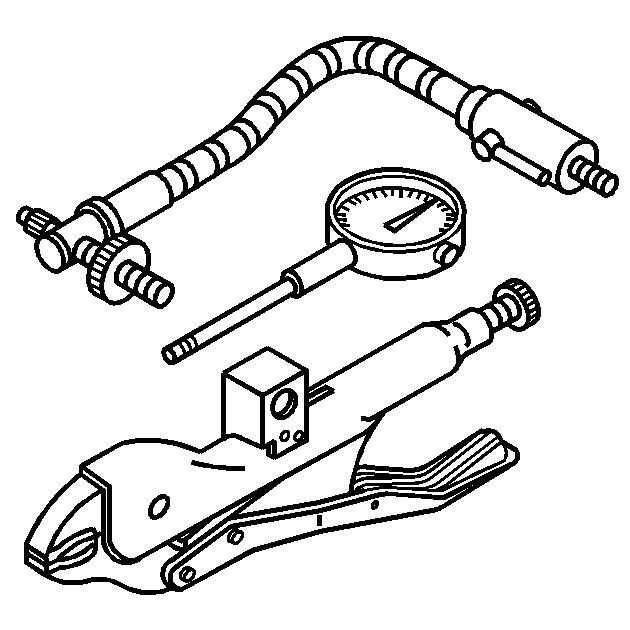

GM891822
 J 45101
Hub and Wheel Runout Gauge
