Steering Wheel Heat Control Module Replacement

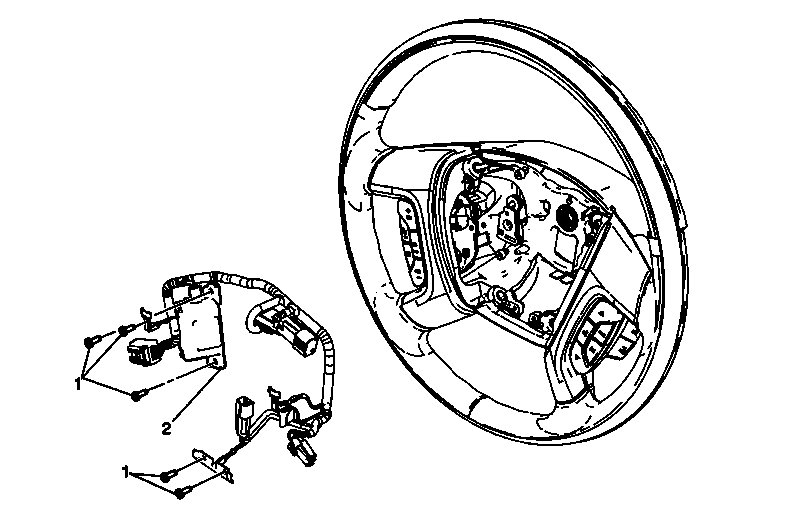

Fig 1: View Of Steering Wheel Heat Module & Screws
GM1728559Courtesy of GENERAL MOTORS COMPANY
Steering Wheel Heat Control Module Replacement

Callout Component Name
Preliminary Procedure
Remove the horn switch. Refer to Steering Wheel Horn Switch Replacement .
1 Steering Wheel Heat Module Screw (Qty: 5)
CAUTION:

Refer to Fastener Caution .


Tighten
2 N.m (18 lb in)
2 Steering Wheel Heat Module
Procedure
Disconnect any electrical connectors as needed.
