Air Cleaner Element Replacement

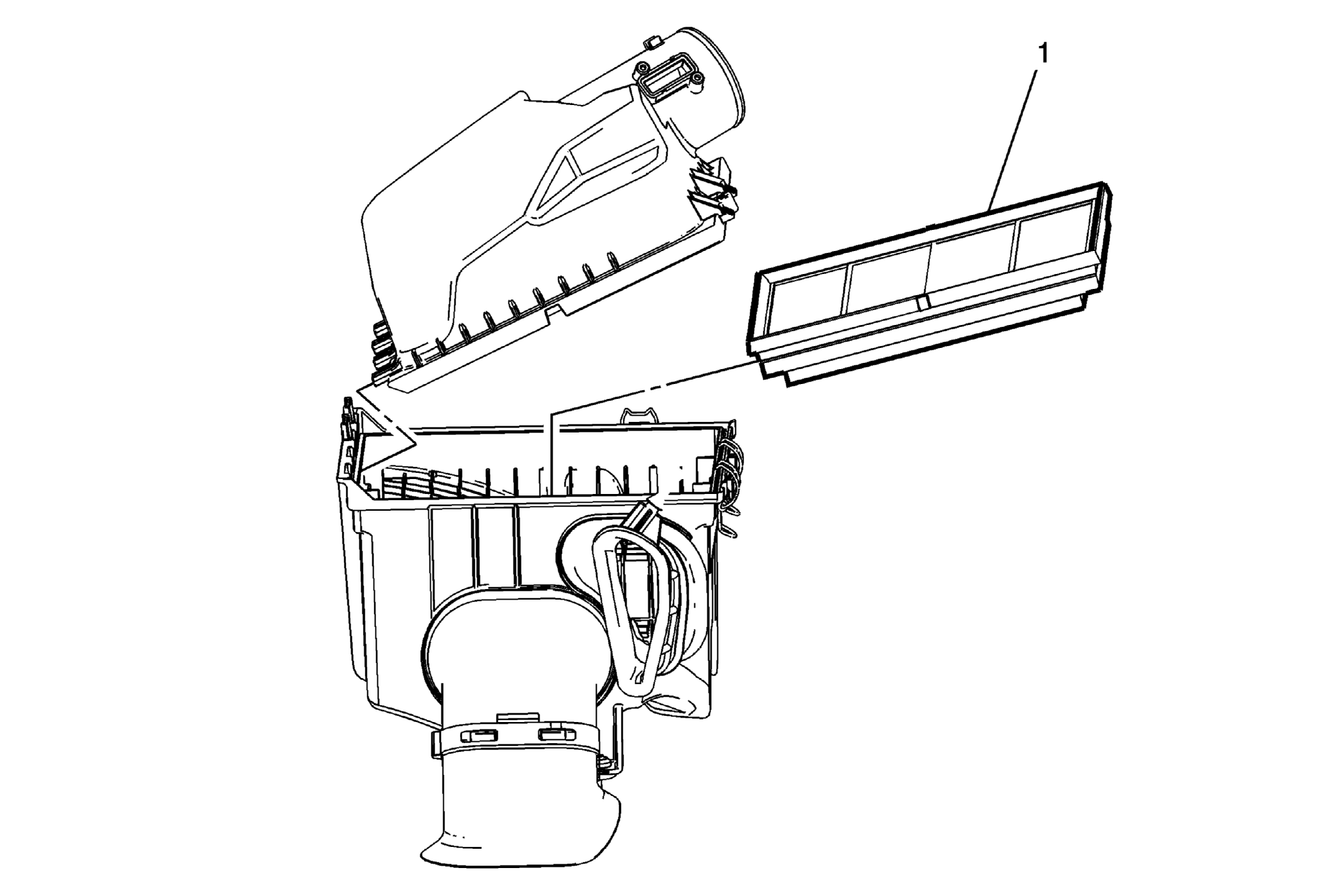

Fig 1: Air Cleaner Element
GM2605198Courtesy of GENERAL MOTORS COMPANY
Air Cleaner Element Replacement

Callout Component Name
Preliminary Procedure
Disconnect the air cleaner outlet duct from the air cleaner. Refer to Air Cleaner Outlet Duct Replacement .
1 Air Cleaner Element

Procedure

  1. Disconnect the mass airflow sensor electrical connector.
  2. Release the air cleaner retaining clips.
