Crankshaft Position Sensor Replacement (AWD)

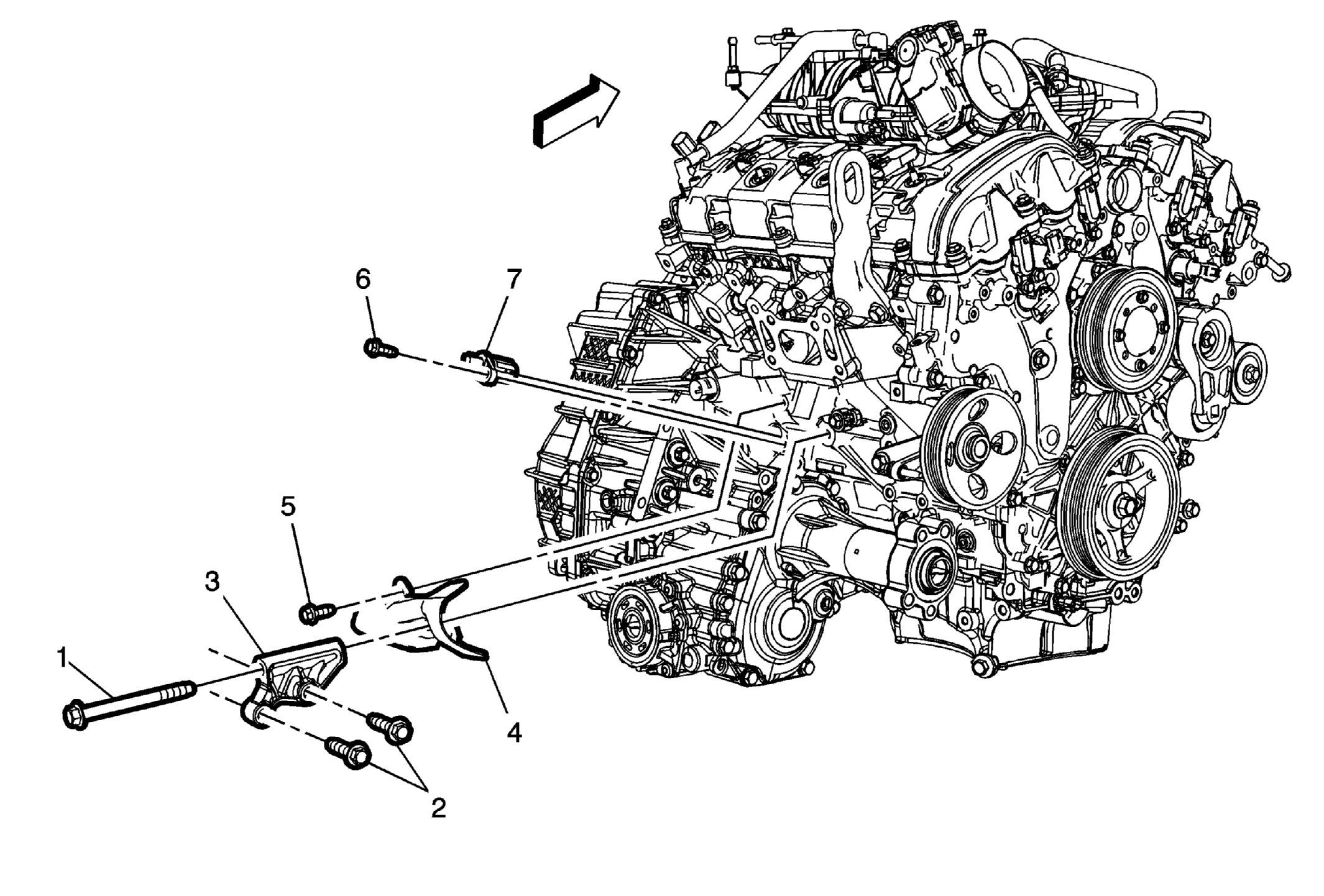

Fig 1: Crankshaft Position Sensor (AWD)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the right side catalytic converter. Refer to Catalytic Converter Replacement - Right Side (Rear) . Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Transmission Brace Bolt CAUTION: Refer to Fastener Caution . Tighten 58 N.m (42 lb ft)
2	Transmission Brace Bolt (Qty: 2) Tighten 58 N.m (42 lb ft)
3	Transmission Brace
4	Knock Sensor Heat Shield Bolt Tighten 9 N.m (80 lb in)
5	Knock Sensor Heat Shield
6	Crankshaft Position Sensor Bolt Tighten 10 N.m (89 lb in)
7	Crankshaft Position Sensor Procedure Disconnect the electrical connector.
