Fuel Pipe Shield Replacement

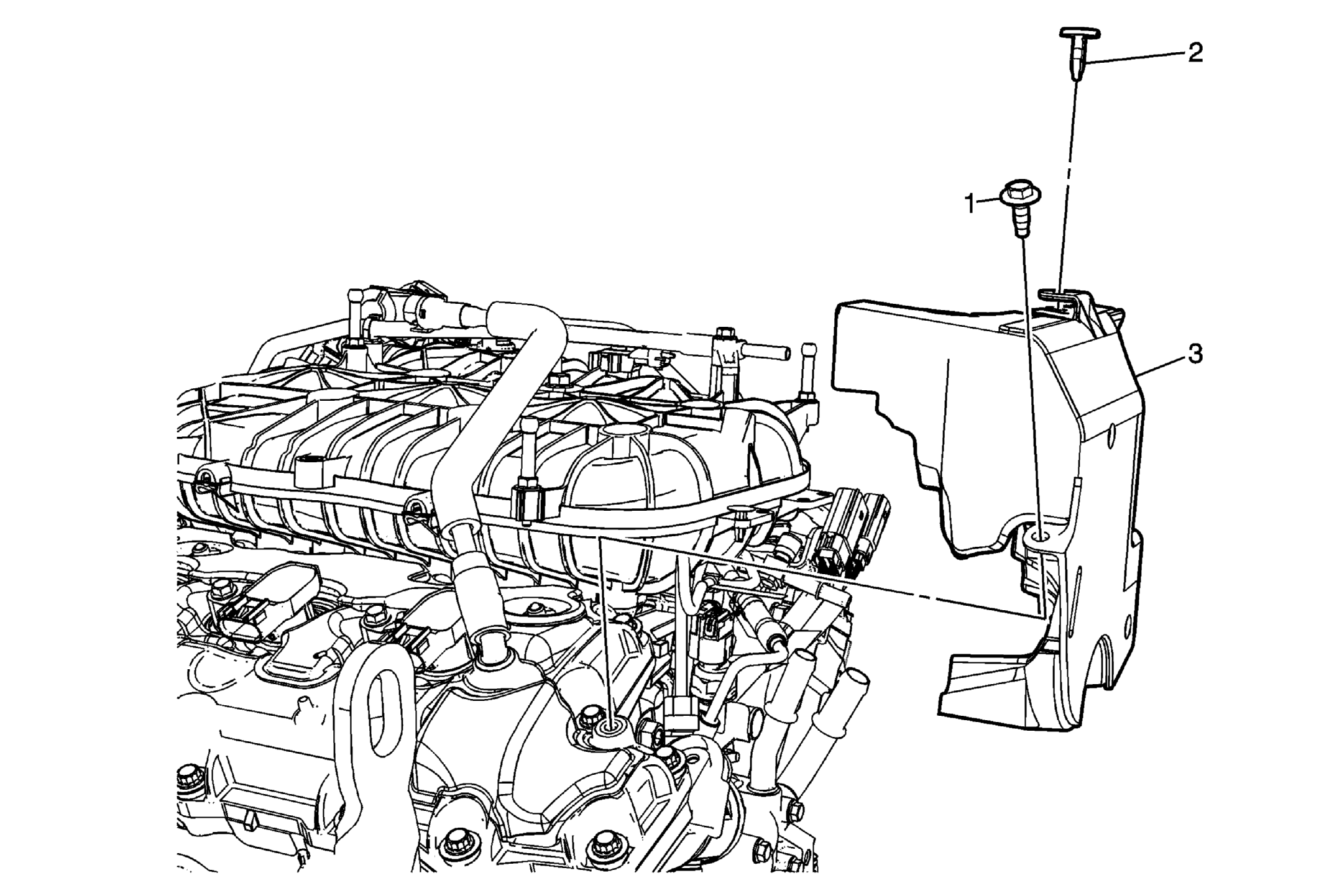

Fig 1: Identifying Fuel Pipe Shield & Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
1	Fuel Pipe Shield Fastener CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Fuel Pipe Shield Push-Pin
3	Fuel Pipe Shield
