Fuel Tank Pressure Sensor Replacement

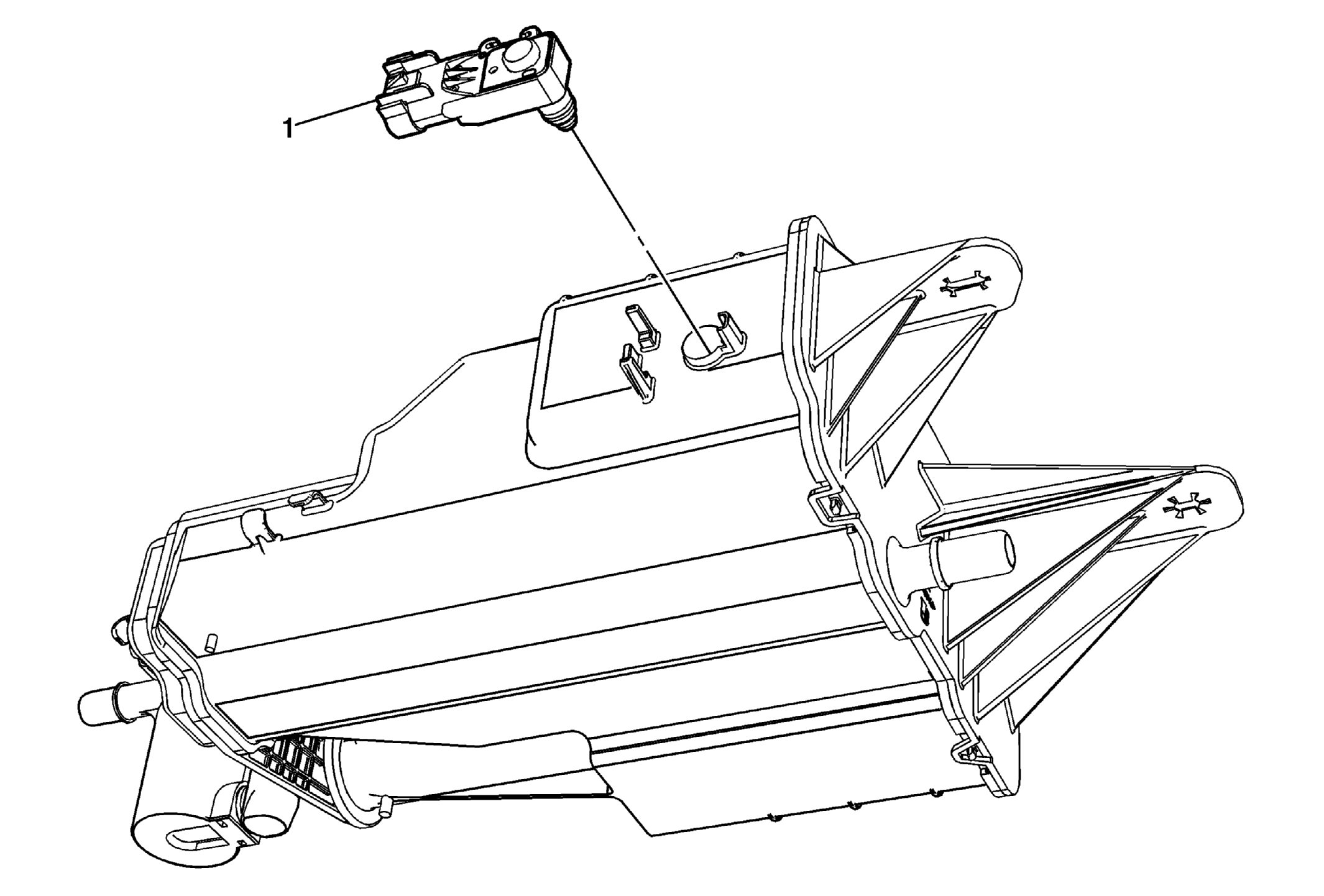

Fig 1: Identifying Fuel Tank Pressure Sensor
GM2231745Courtesy of GENERAL MOTORS COMPANY
Fuel Tank Pressure Sensor Replacement

Callout Component Name
Preliminary Procedure
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1 Fuel Tank Pressure Sensor
Procedure
Disconnect the electrical connector.
