Throttle Body Assembly Replacement

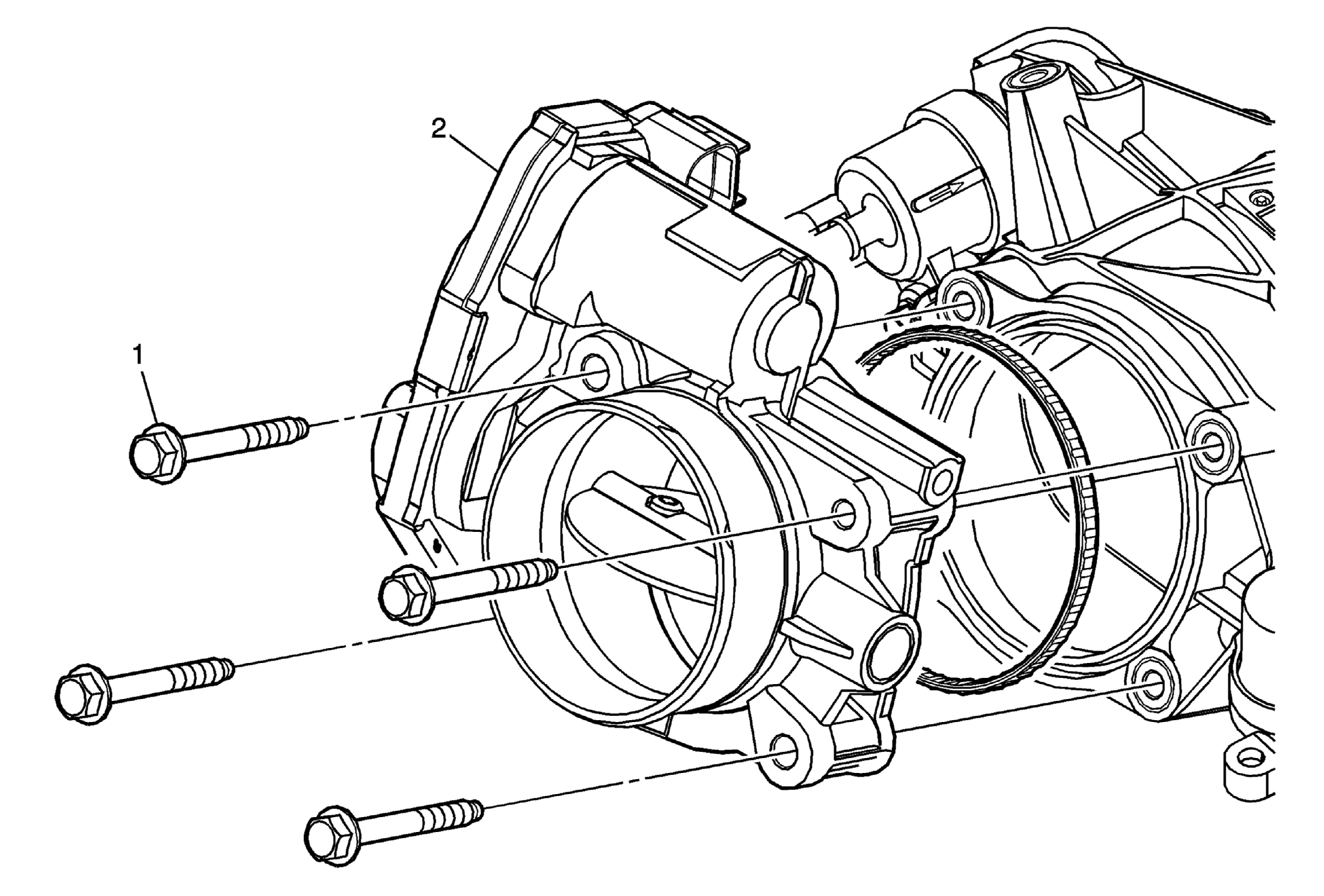

Fig 1: View Of Throttle Body Assembly & Bolts (LF1)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Throttle Body Fastener (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Throttle Body Procedure Disconnect the throttle body harness electrical connector. Install a NEW throttle body seal. Perform the throttle learn procedure. Refer to Throttle/Idle Learn .

Callout

Component Name

Preliminary Procedure
Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement

Throttle Body Fastener (Qty: 4)

CAUTION:

Tighten
10 N.m (89 lb in)

Throttle Body

Procedure
