Battery Tray Support Replacement

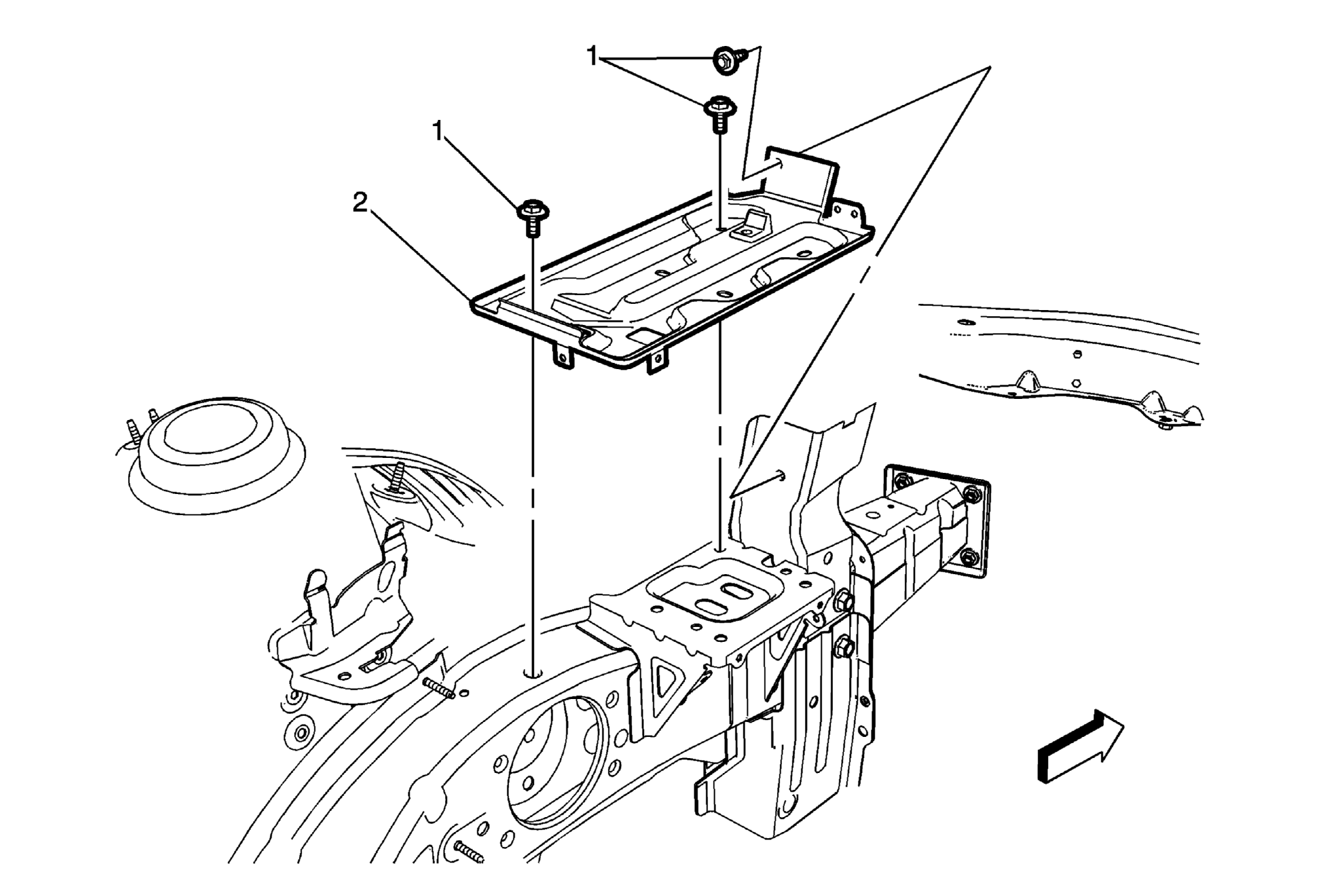

Fig 1: Identifying Battery Tray Support & Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the battery tray. Refer to Battery Tray Replacement .
1	Battery Tray Bolts (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Battery Tray
