Flexible Fuel Sensor Replacement

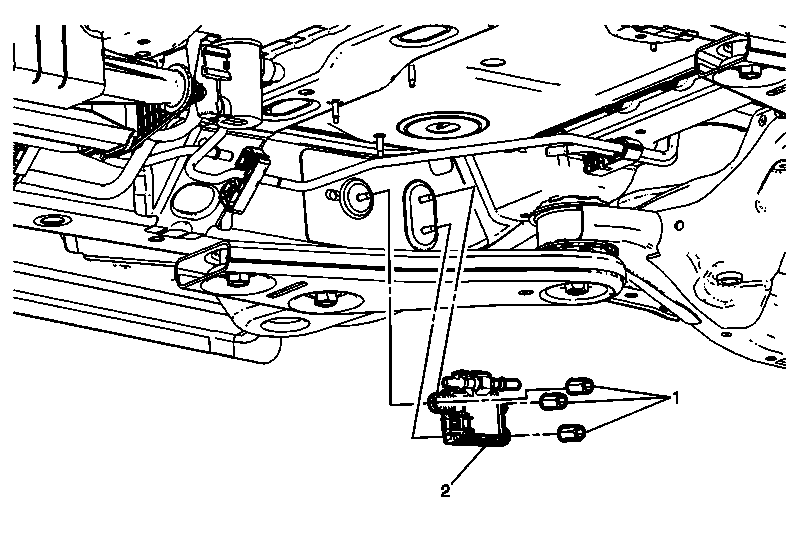

Fig 1: Flexible Fuel Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Relieve the fuel system pressure. Refer to Fuel Pressure Relief Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle Remove the fuel feed hoses. Refer to Fuel Feed Hose Replacement (Flex Sensor to Fuel Feed Rear Pipe) , Fuel Feed Hose Replacement (Flex Sensor to Fuel Feed Front Pipe) Disconnect the electrical connector.
1	Flexiable Fuel Sensor Nuts (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 9 N.m(79 lb in)
2	Flexiable Fuel Sensor

Callout

Component Name

Preliminary Procedure

Flexiable Fuel Sensor Nuts (Qty: 3)

CAUTION:

Tighten
9 N.m(79 lb in)

Flexiable Fuel Sensor
