Installation Procedure

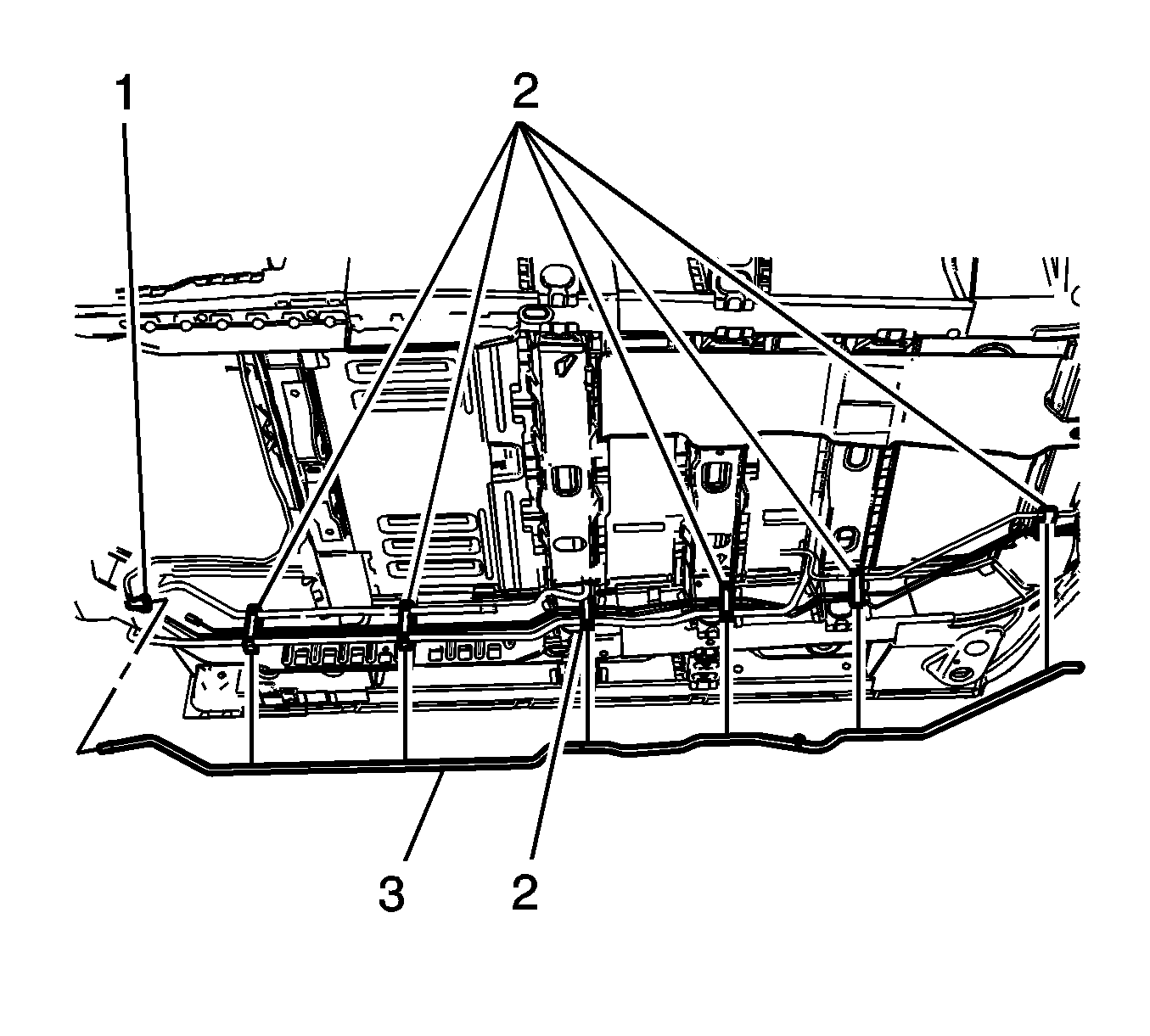

    Fig 1: Identifying Fuel Feed Line & Plastic Retainers
    GM2235267Courtesy of GENERAL MOTORS COMPANY
  1. Install the fuel feed line (3) into the plastic retainers (2).
  2. Connect the fuel feed line quick connect (1). Refer to Plastic Collar Quick Connect Fitting Service .
  3. Install the fuel pressure sensor. Refer to Fuel Pressure Sensor Replacement - Fuel Feed Pipe .

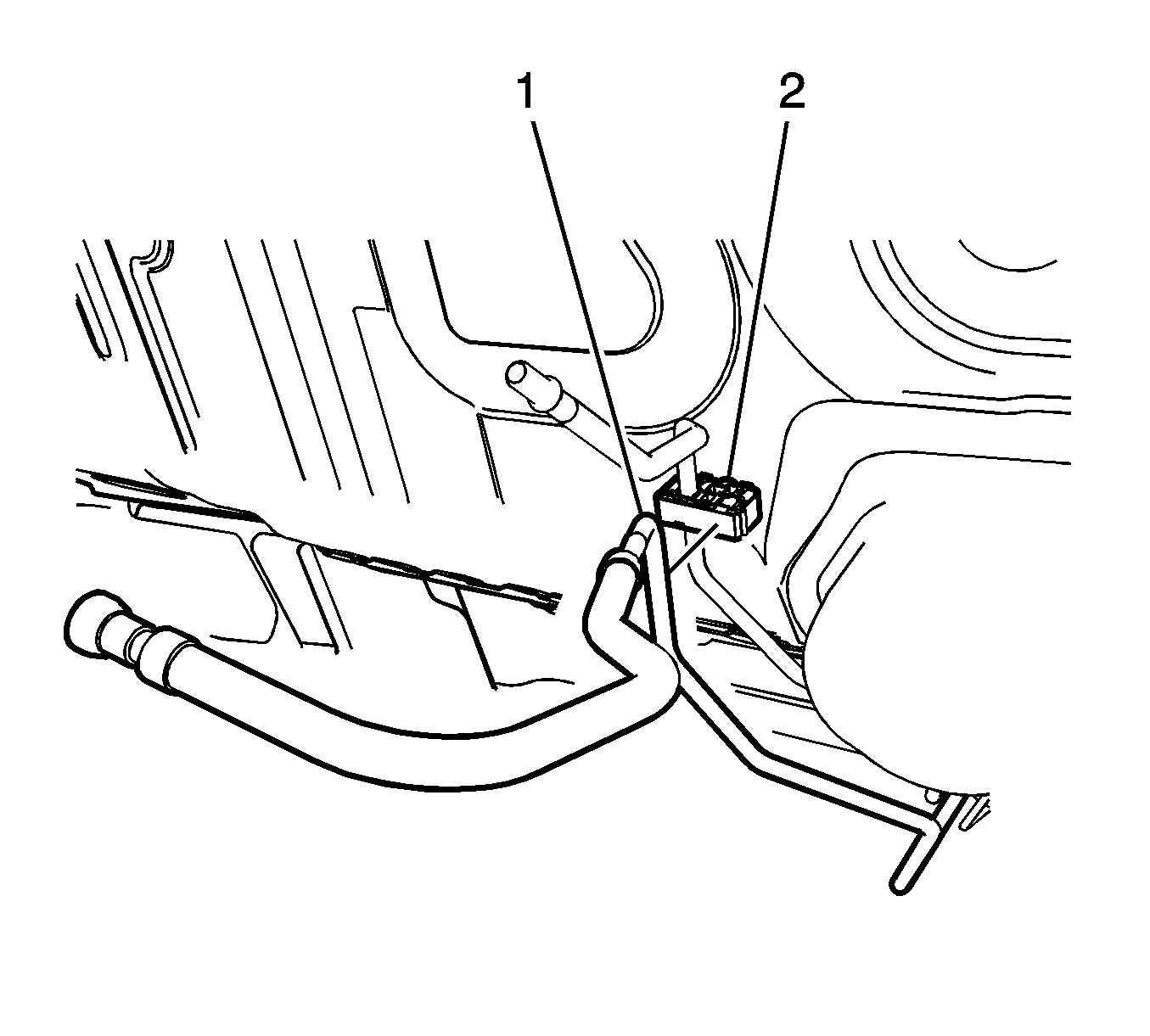

    4. Fig 2: Identifying Fuel Feed Line & Plastic Retainer
    GM2234990Courtesy of GENERAL MOTORS COMPANY
  4. Engage the fuel feed line (1) to the plastic retainer (2).

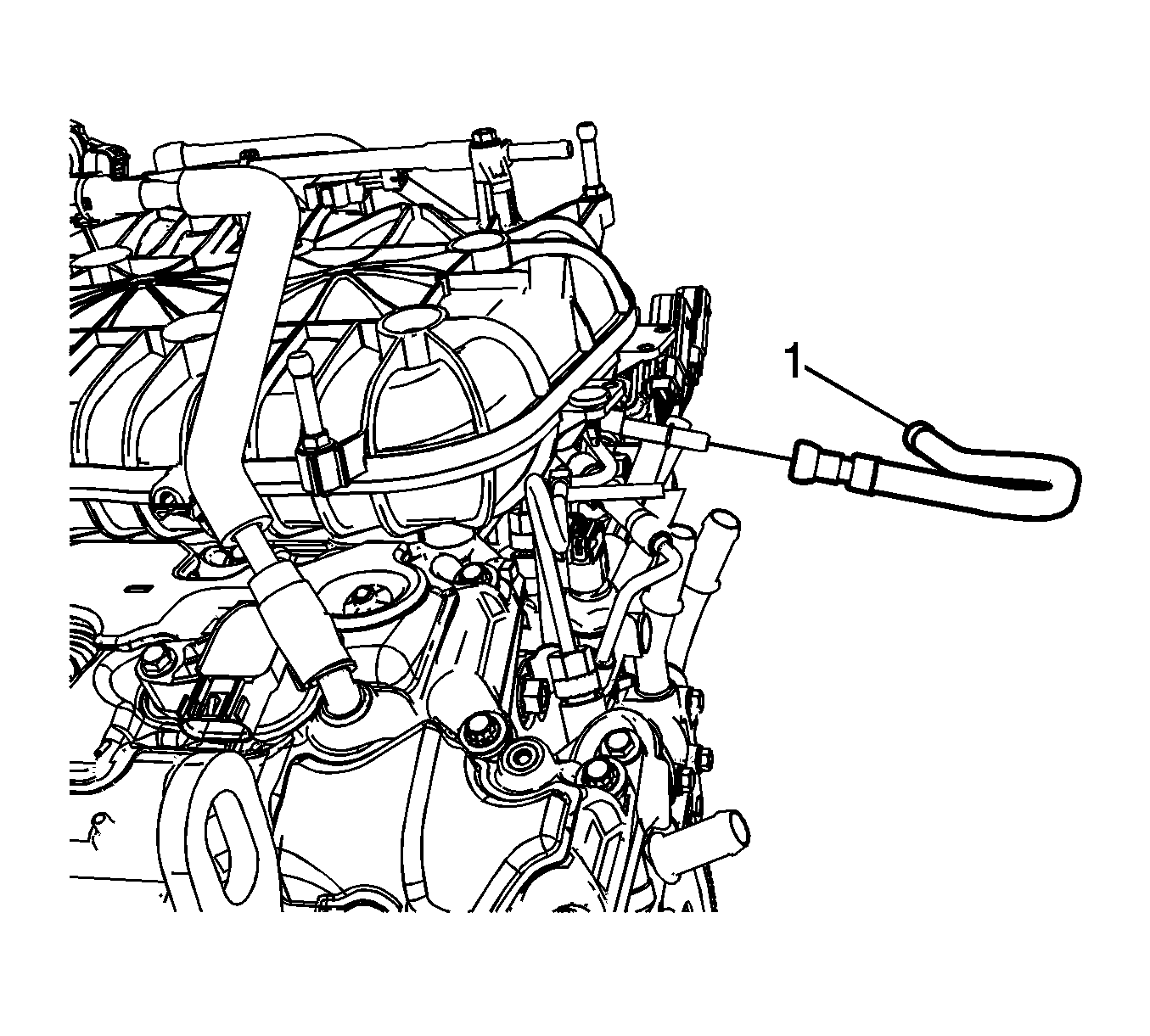

    5. Fig 3: Identifying Fuel Feed Line
    GM2233421Courtesy of GENERAL MOTORS COMPANY
  5. Connect the fuel feed line (1). Refer to Metal Collar Quick Connect Fitting Service .
