Fuel Pump Flow Control Module Replacement

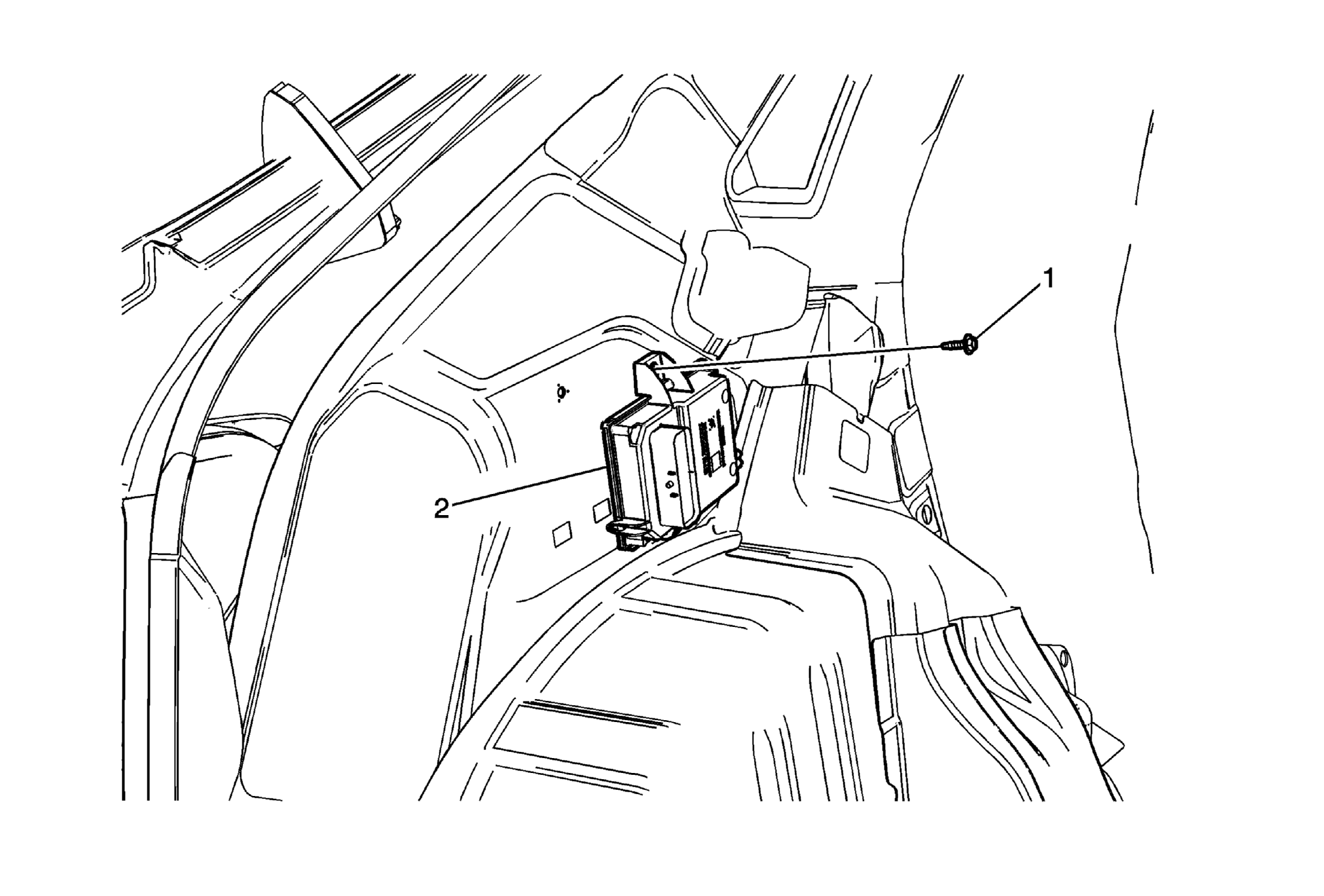

Fig 1: Identifying Fuel Pump Flow Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Fuel Pump Flow Control Module Fastener CAUTION: Refer to Fastener Caution Tighten 8 N.m(71 lb in)
2	Fuel Pump Flow Control Module Procedure Remove the left body side trim panel. Refer to Body Side Trim Panel Replacement . Disconnect the electrical connector. If replacing, reprogram the module. Refer to Control Module References

Callout

Component Name

Fuel Pump Flow Control Module Fastener

CAUTION:

Tighten
8 N.m(71 lb in)

Fuel Pump Flow Control Module

Procedure

Remove the left body side trim panel. Refer to Body Side Trim Panel Replacement .
Disconnect the electrical connector.
If replacing, reprogram the module. Refer to Control Module References
