Installation Procedure
- Install the following components if fuel tank replacement was necessary:
- The primary fuel tank module-Refer to Primary Fuel Tank Module Replacement (China) .
- The secondary fuel tank module-Refer to Secondary Fuel Tank Module Replacement .

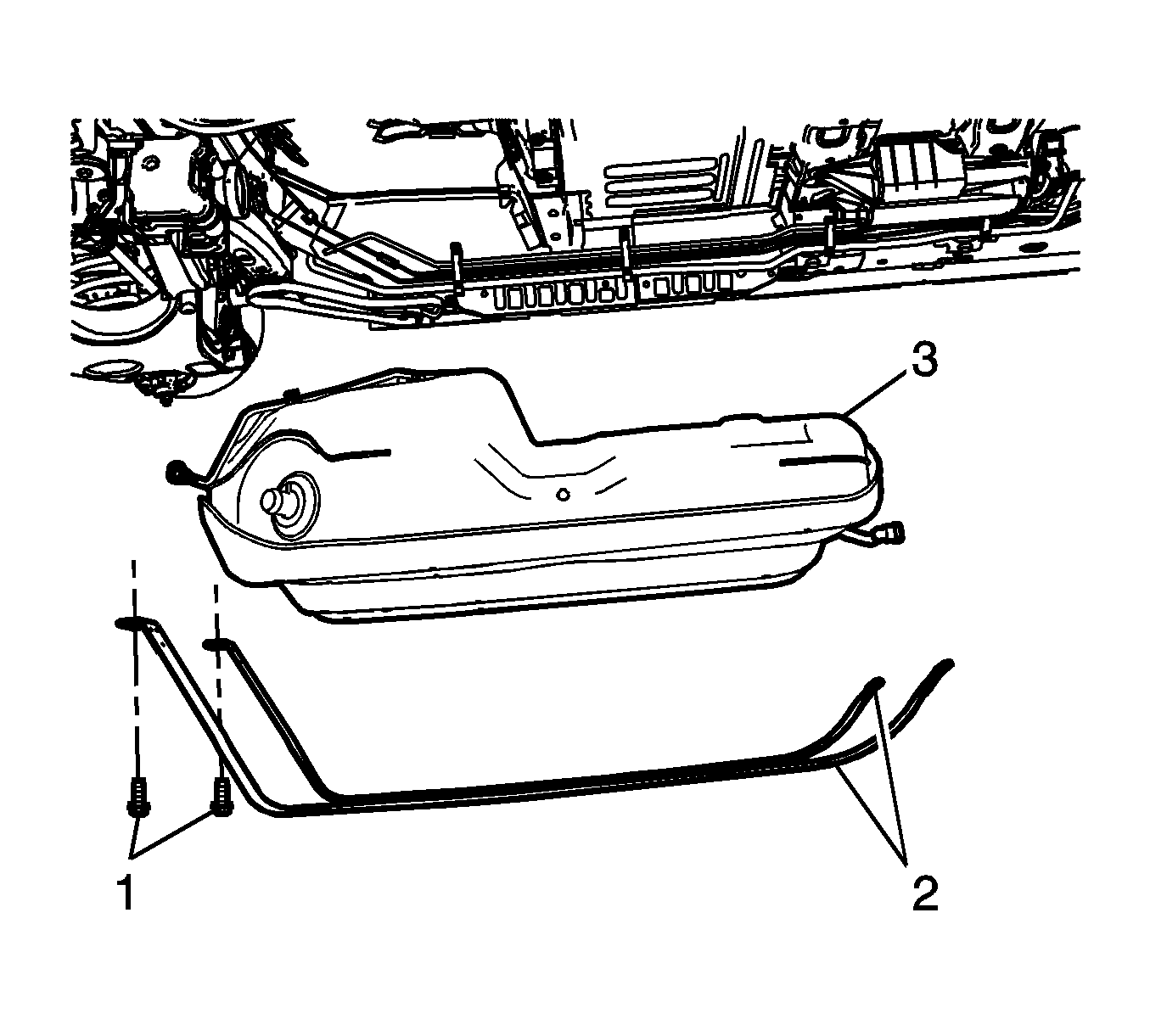

- Raise the fuel tank (3) to the vehicle.
- Ensure the fuel tank straps are seated properly. Install the fuel tank straps (2) and bolts (1) then tighten to 45 N.m(33 lb ft).

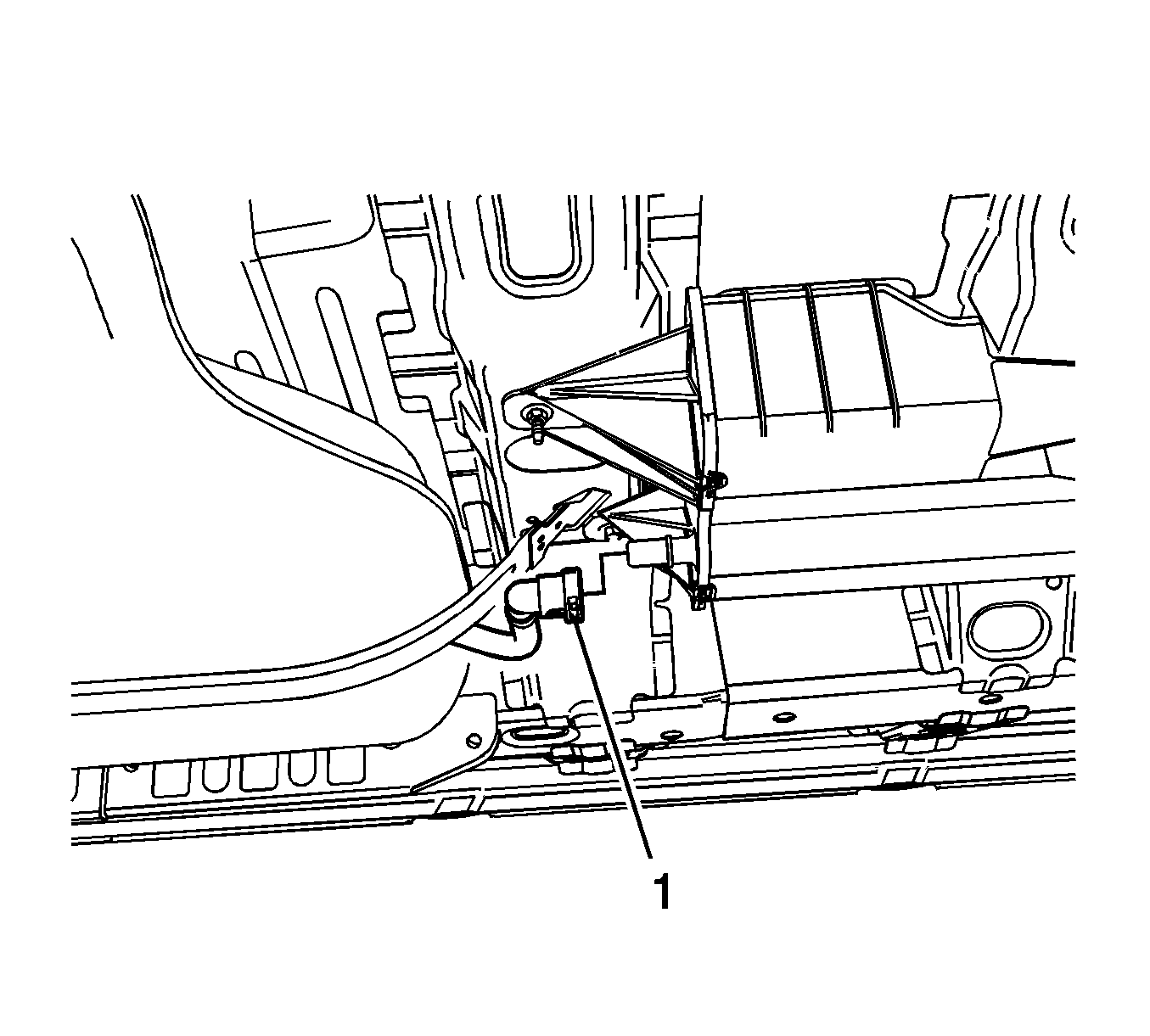

- Connect the evaporative emission line (1) to the canister.

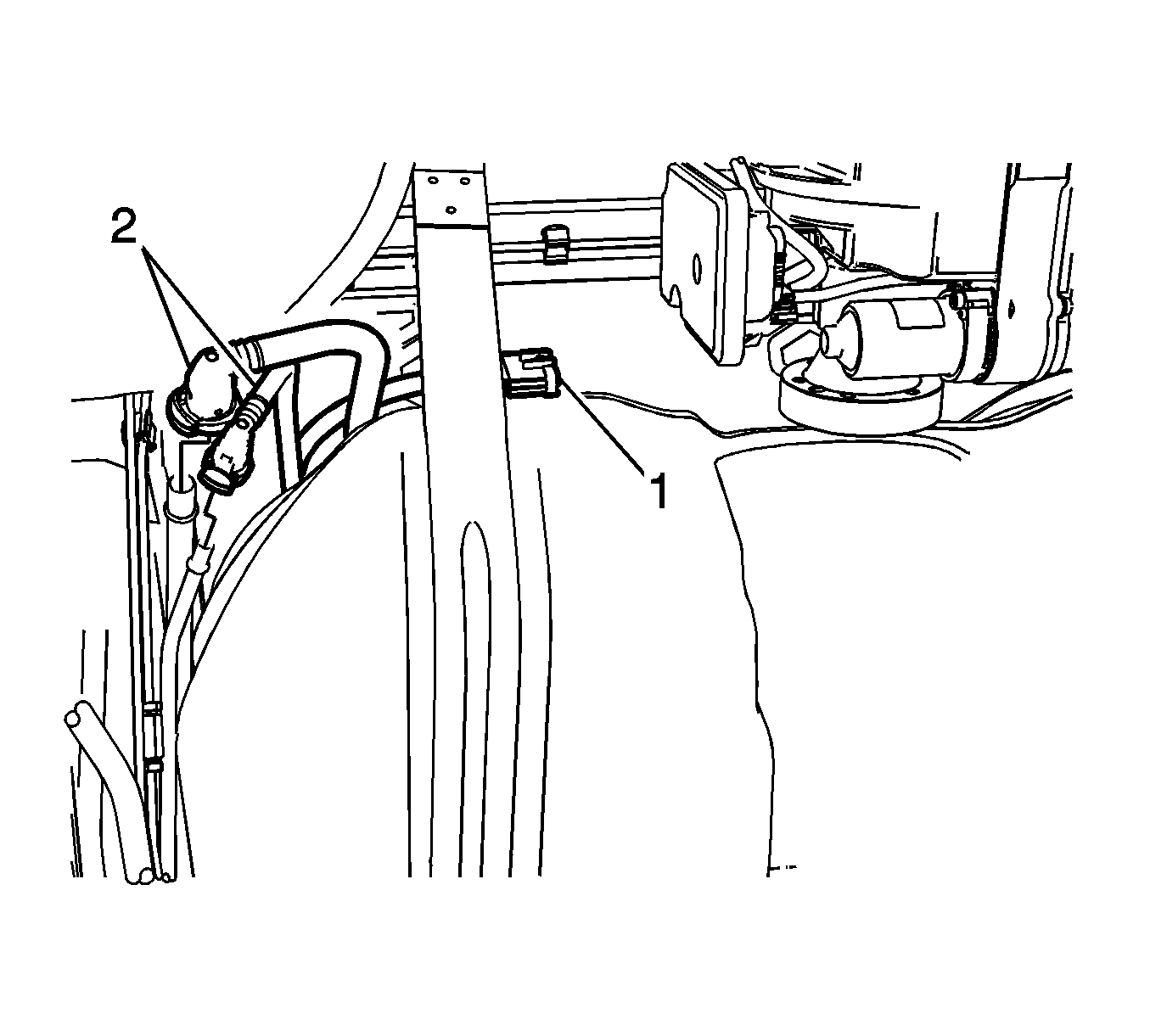

- Connect the fuel tank electrical connector (1).
- Connect the fuel line and evaporative emission line connectors (2). Refer to Plastic Collar Quick Connect Fitting Service .

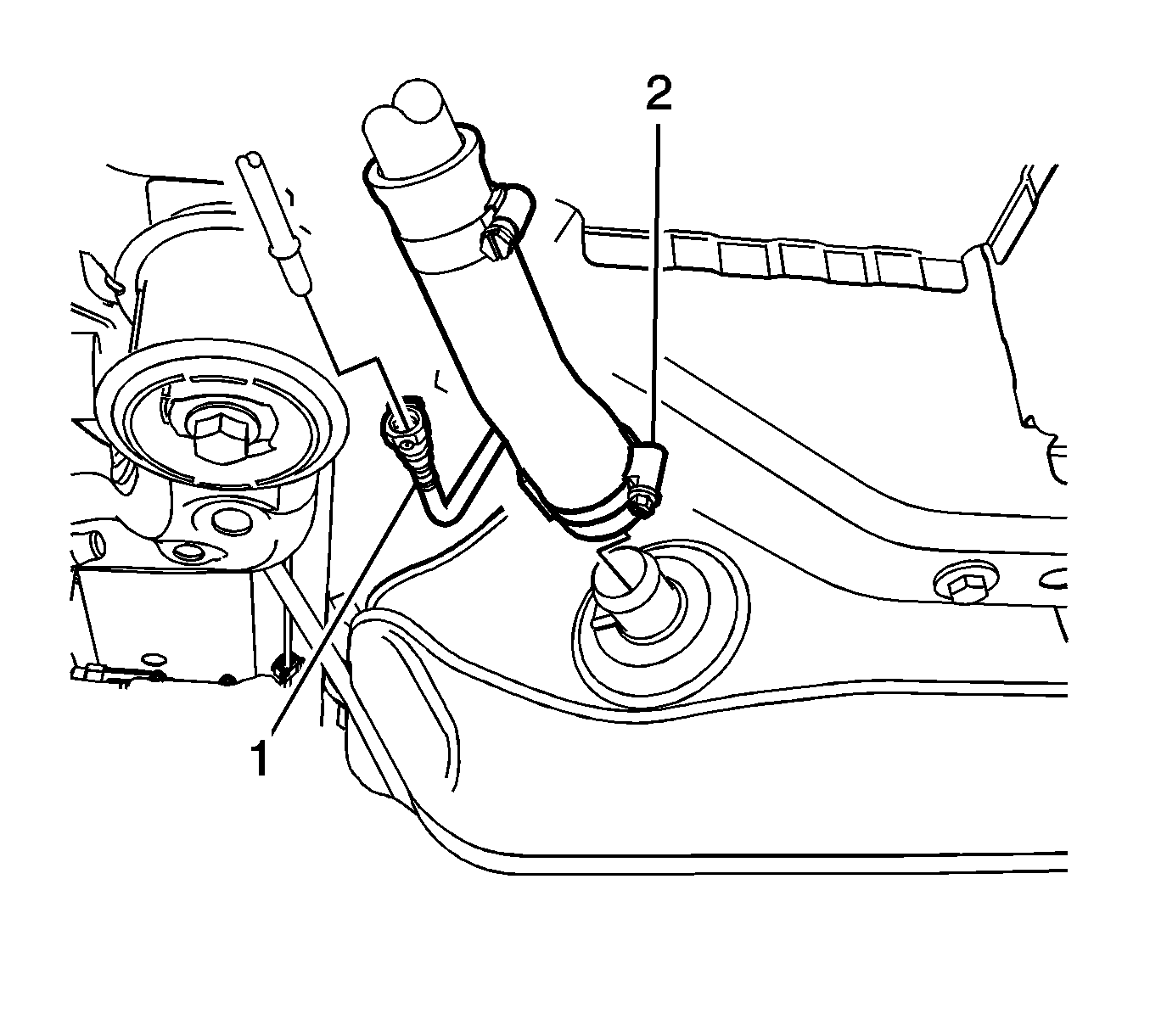

- Connect the evaporative emission line (1). Refer to Plastic Collar Quick Connect Fitting Service .
- Install the filler tube and tighten the hose both clamp (2) to 5 N.m(44 lb in).
- Perform a leak down test. Refer to Evaporative Emission System Diagnosis .
- If required, install the propeller shaft. Refer to Propeller Shaft Replacement .
- Install the exhaust system. Refer to Exhaust Muffler Replacement .
- Refill the fuel tank.
- Inspect for fuel leaks.
CAUTION:
Refer to Fastener Caution .
