Steering Gear Heat Shield Replacement

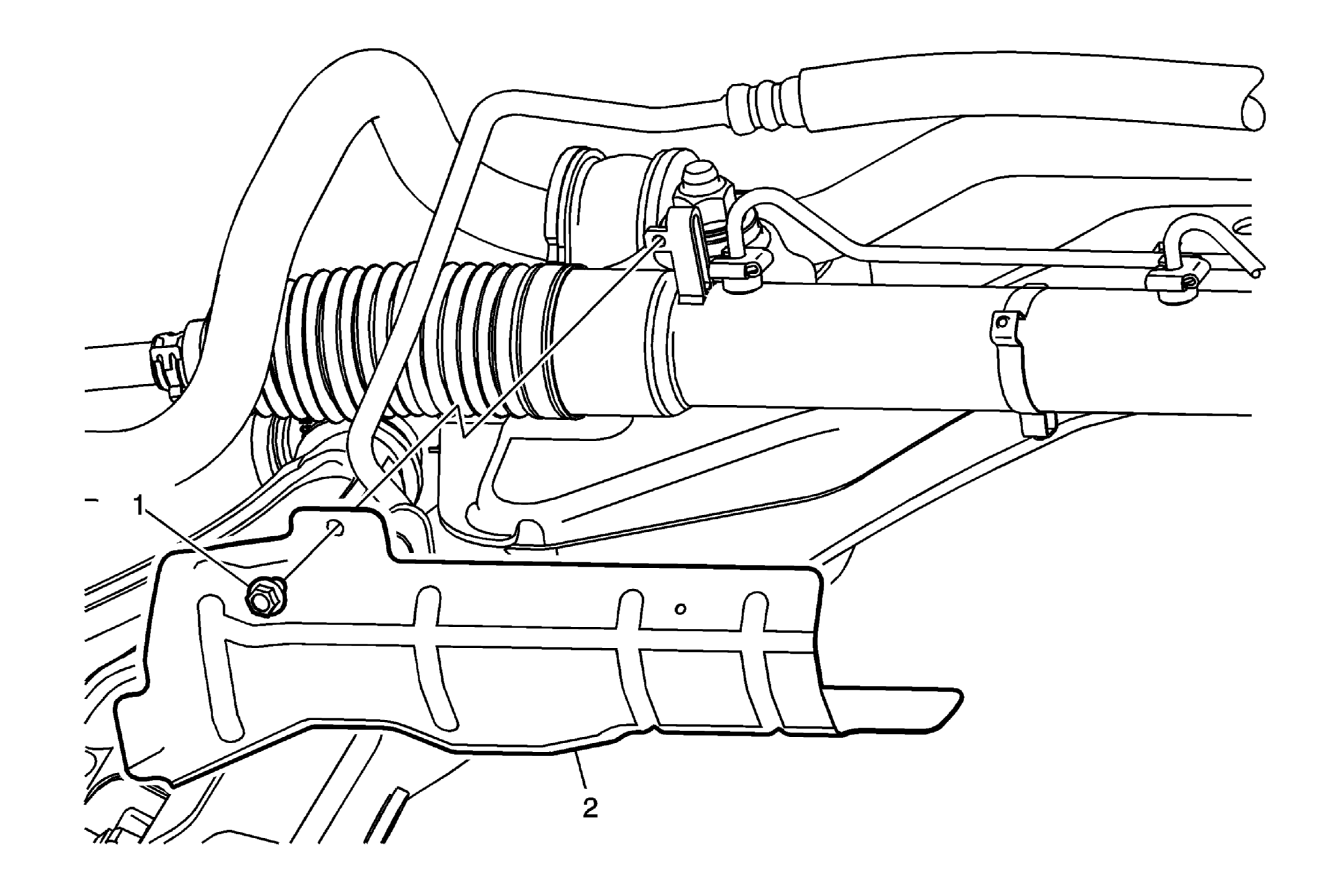

Fig 1: Identifying Steering Gear Heat Shield & Bolt

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Fastener CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Power Steering Gear Heat Shield
