MOST 50 Bus

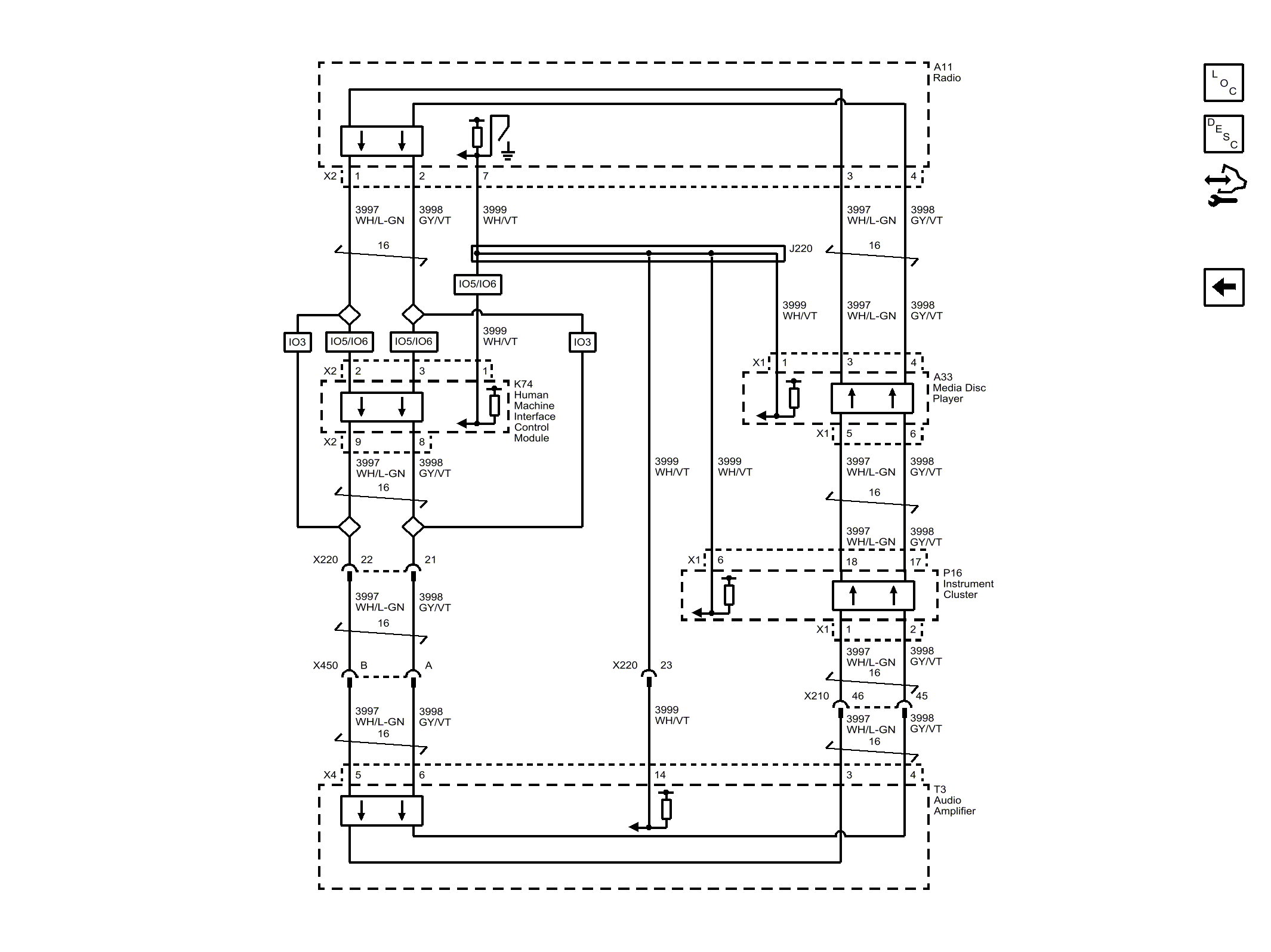

Fig 1: MOST 50 Bus Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
