Charge Port Door Replacement
Courtesy of GENERAL MOTORS COMPANY Charge Port Door Replacement
| Callout |
Component Name |
|
Preliminary Procedures
- Electrically release and open the charge port door.
- Disable the high voltage system. Refer to High Voltage Disabling
.
|
| 1 |
Charge Port Door Procedure

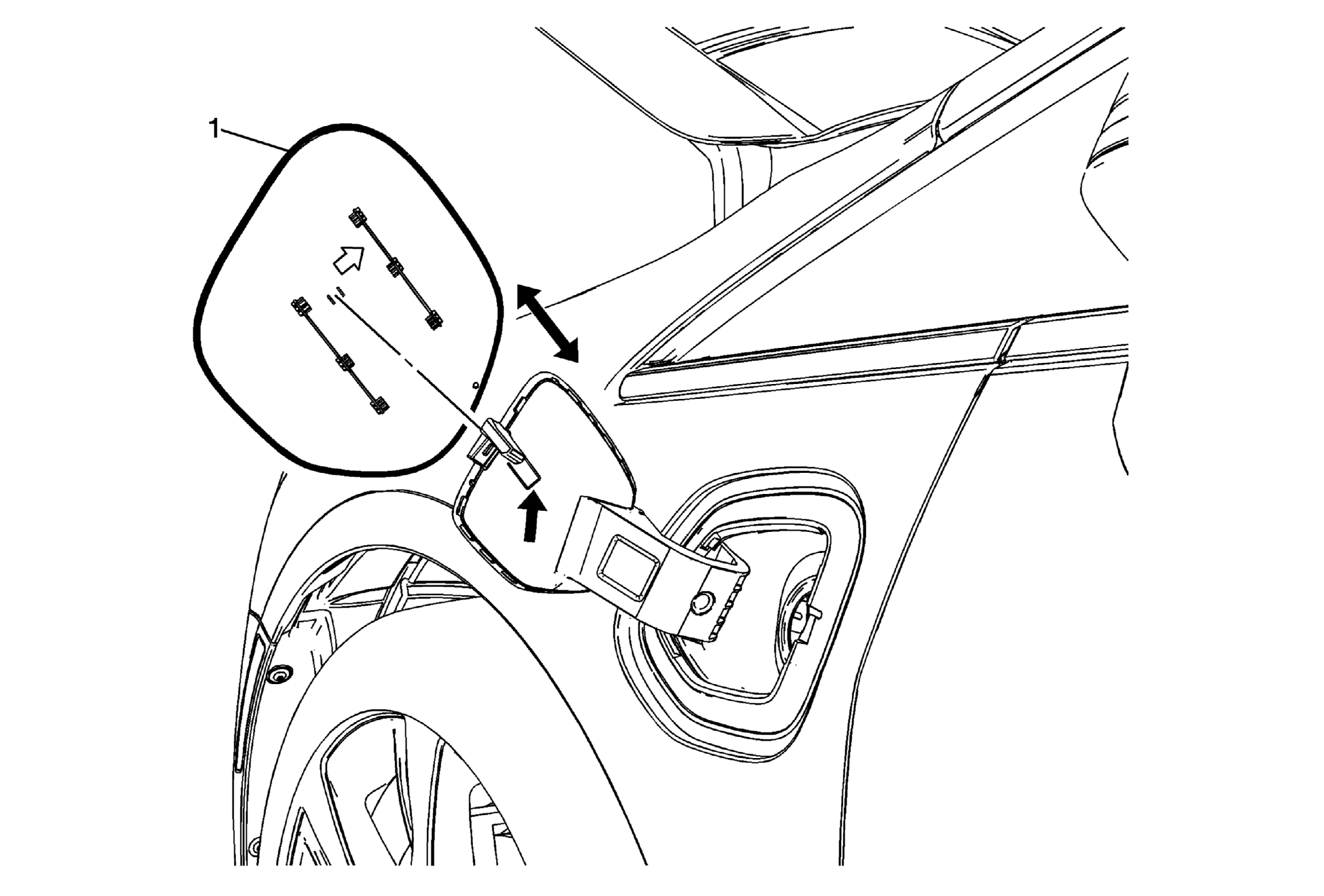

- Using a flat-bladed driver, lift slightly upward on the tab at the center of the hinge in order to release the door from the hinge assembly (arrow).
- Slide the door outward, away from the hinge and remove.
- Enable the high voltage system. Refer to High Voltage Enabling
.
|
