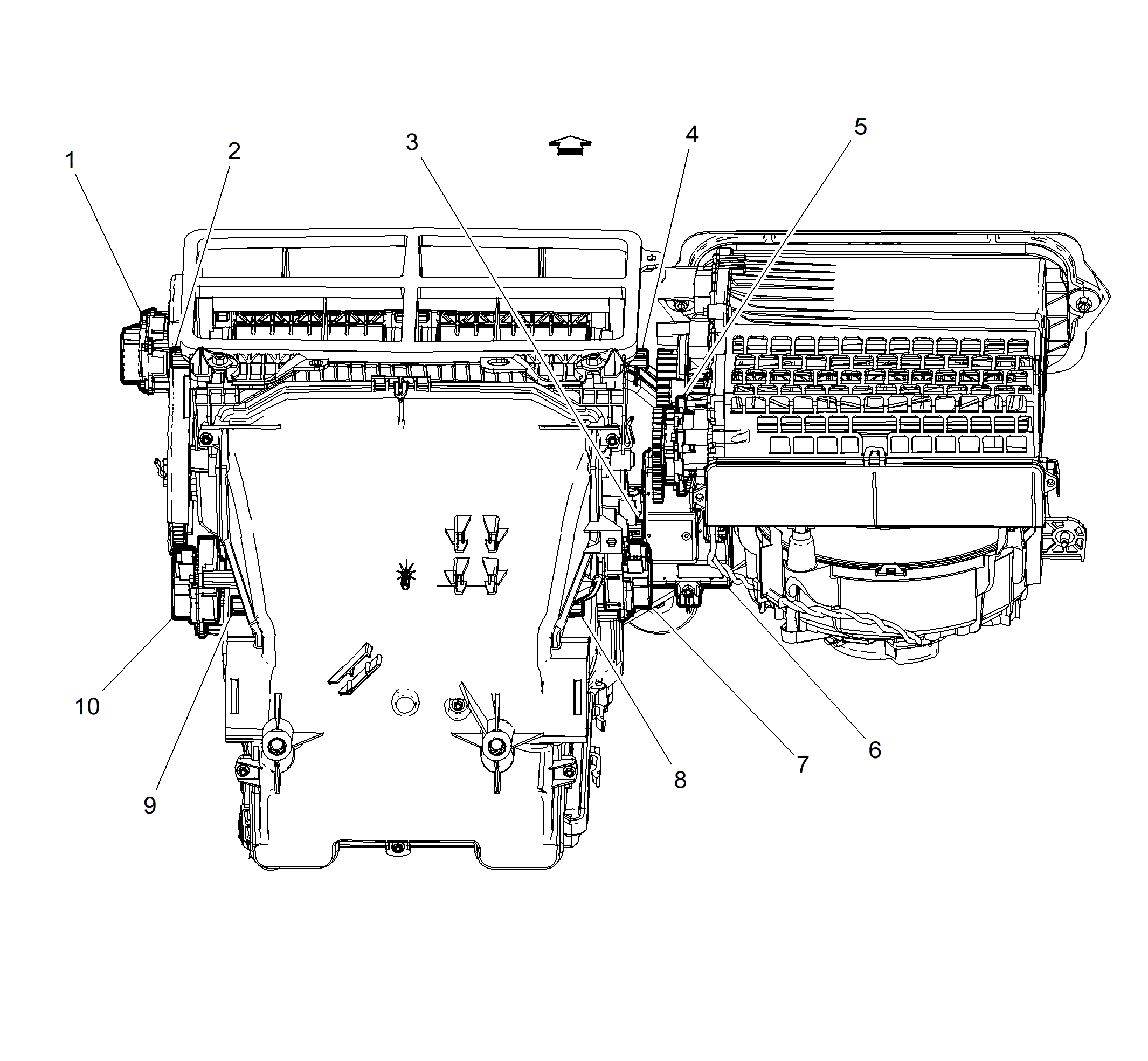

Instrument Panel - HVAC Components
Instrument Panel - HVAC Components
| Items |
|---|
| 1: M37 Mode Door Actuator M37 Mode Door Actuator |
| 2: B7H Air Temperature Sensor - Duct Left Upper B7H Air Temperature Sensor - Duct Left Upper |
| 3: B39 A/C Evaporator Temperature Sensor B39 A/C Evaporator Temperature Sensor |
| 4: B7J Air Temperature Sensor - Duct Right Upper B7J Air Temperature Sensor - Duct Right Upper |
| 5: M46 Air Recirculation Door Actuator |
| 6: K8 Blower Motor Control Module K8 Blower Motor Control Module x1K8 Blower Motor Control Module x2 |
| 7: M6R Air Temperature Door Actuator - Right M6R Air Temperature Door Actuator - Right |
| 8: B7E Air Temperature Sensor - Duct Right Lower B7E Air Temperature Sensor - Duct Right Lower |
| 9: B7D Air Temperature Sensor - Duct Left Lower B7D Air Temperature Sensor - Duct Left Lower |
