Air Cleaner Bracket Replacement

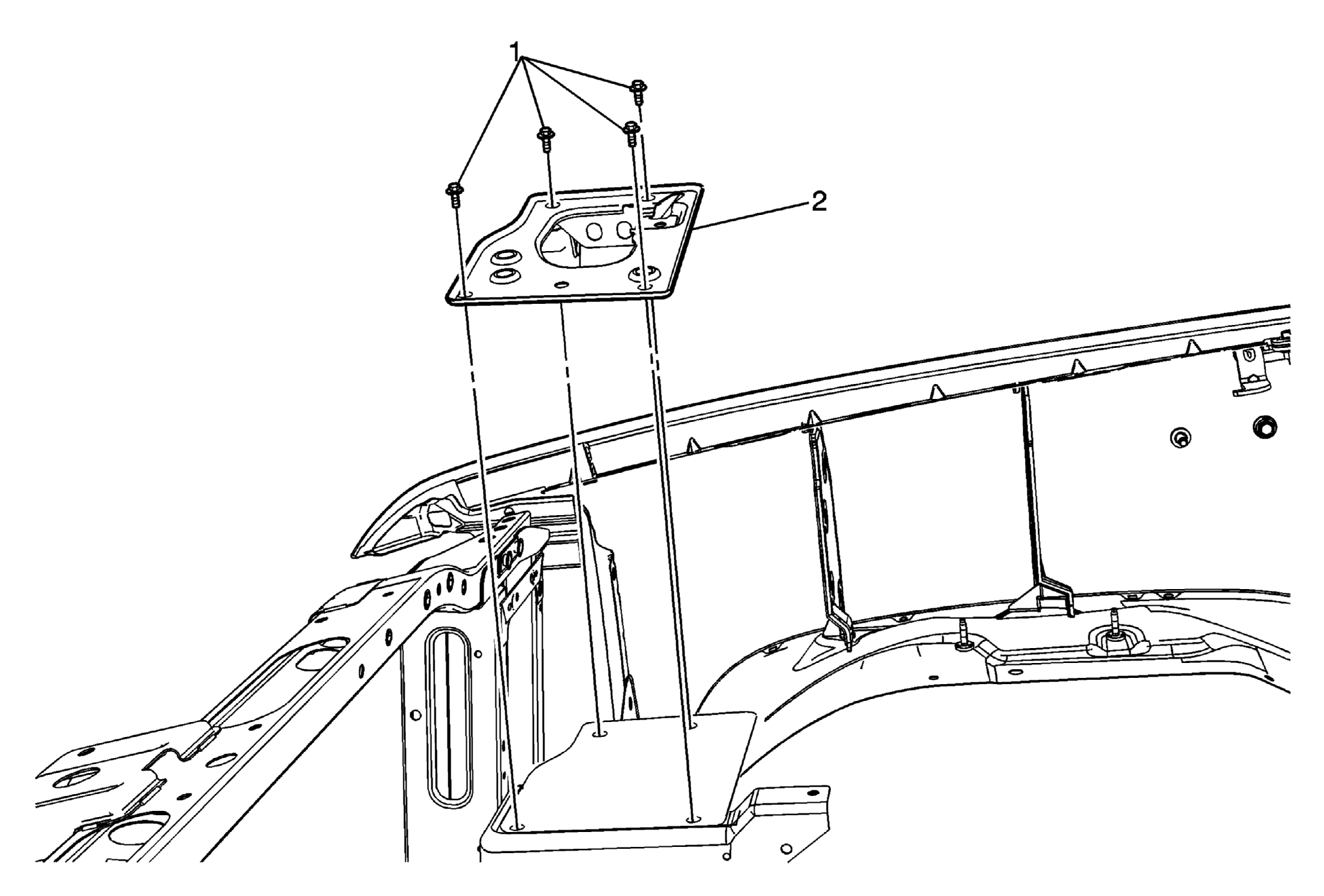

Fig 1: Air Cleaner Bracket
GM2266036Courtesy of GENERAL MOTORS COMPANY
Air Cleaner Bracket Replacement

Callout Component Name
Preliminary Procedure
Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
1 Air Cleaner Bracket Fastener (Qty: 4)
CAUTION:

Refer to Fastener Caution


Tighten
10 N.m(89 lb in)
2 Air Cleaner Bracket
