Keyless Entry Control Module Replacement

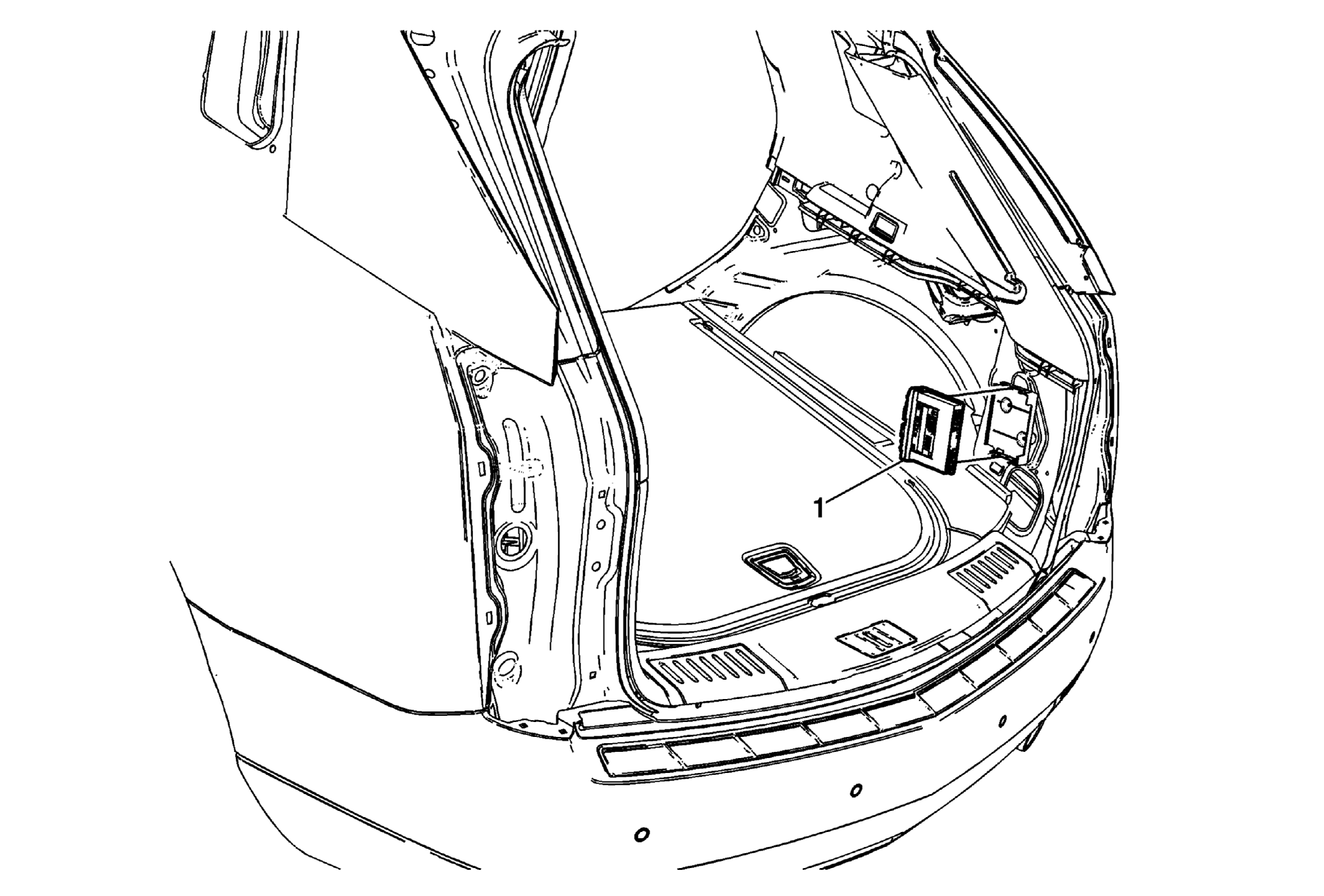

Fig 1: Locating Keyless Entry Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the right body side trim panel. Refer to Body Side Trim Panel Replacement .
1	Keyless Entry Control Module Procedure Disconnect the electrical connectors. Unsnap the receiver from the bracket. For programming and set up, refer to Control Module References

Callout

Component Name

Preliminary Procedure
Remove the right body side trim panel. Refer to Body Side Trim Panel Replacement .

Keyless Entry Control Module

Procedure
