Remote Control Door Lock Receiver

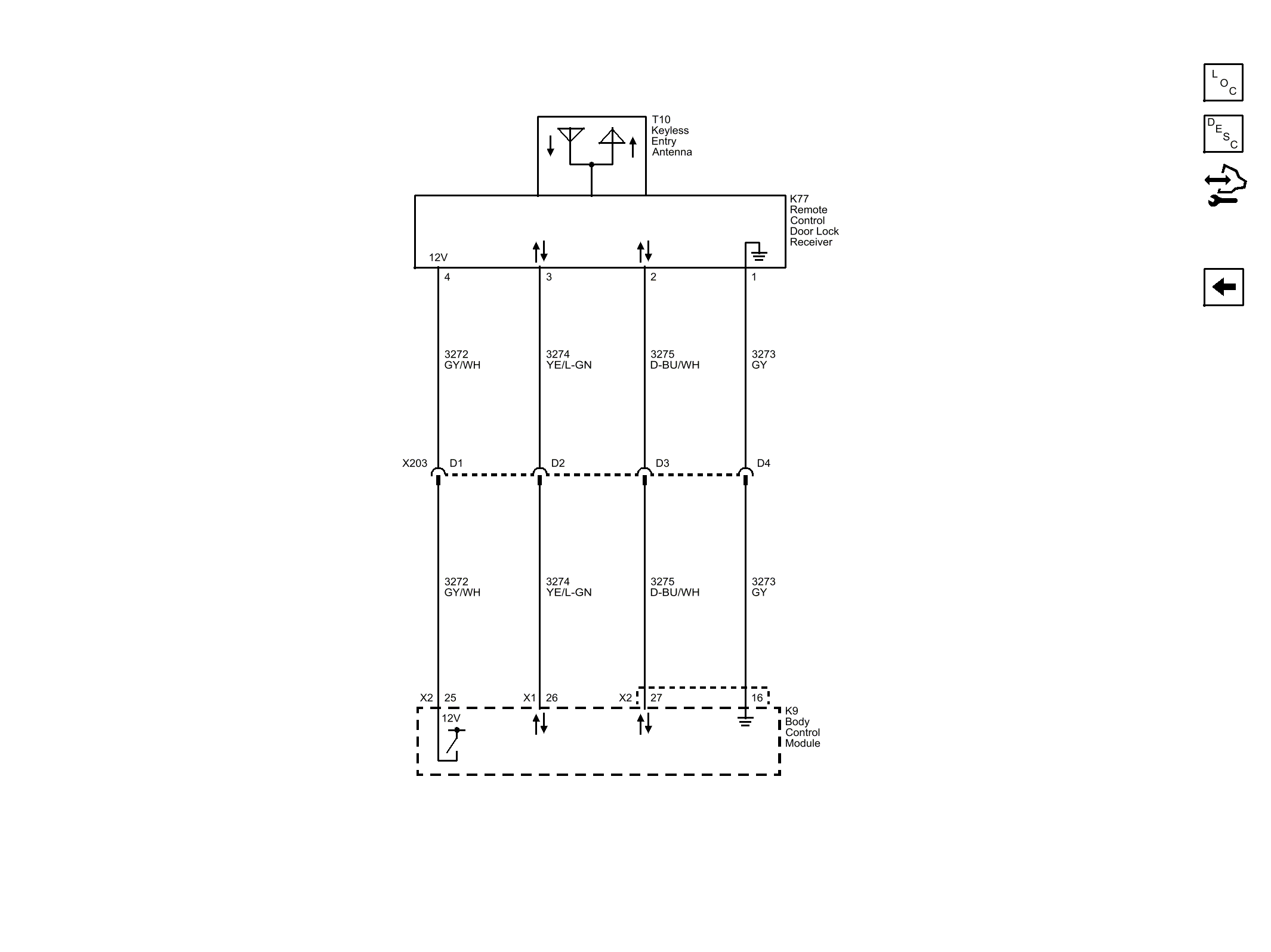

Fig 1: Remote Control Door Lock Receiver Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
