Most 50 Bus
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Most 50 Bus

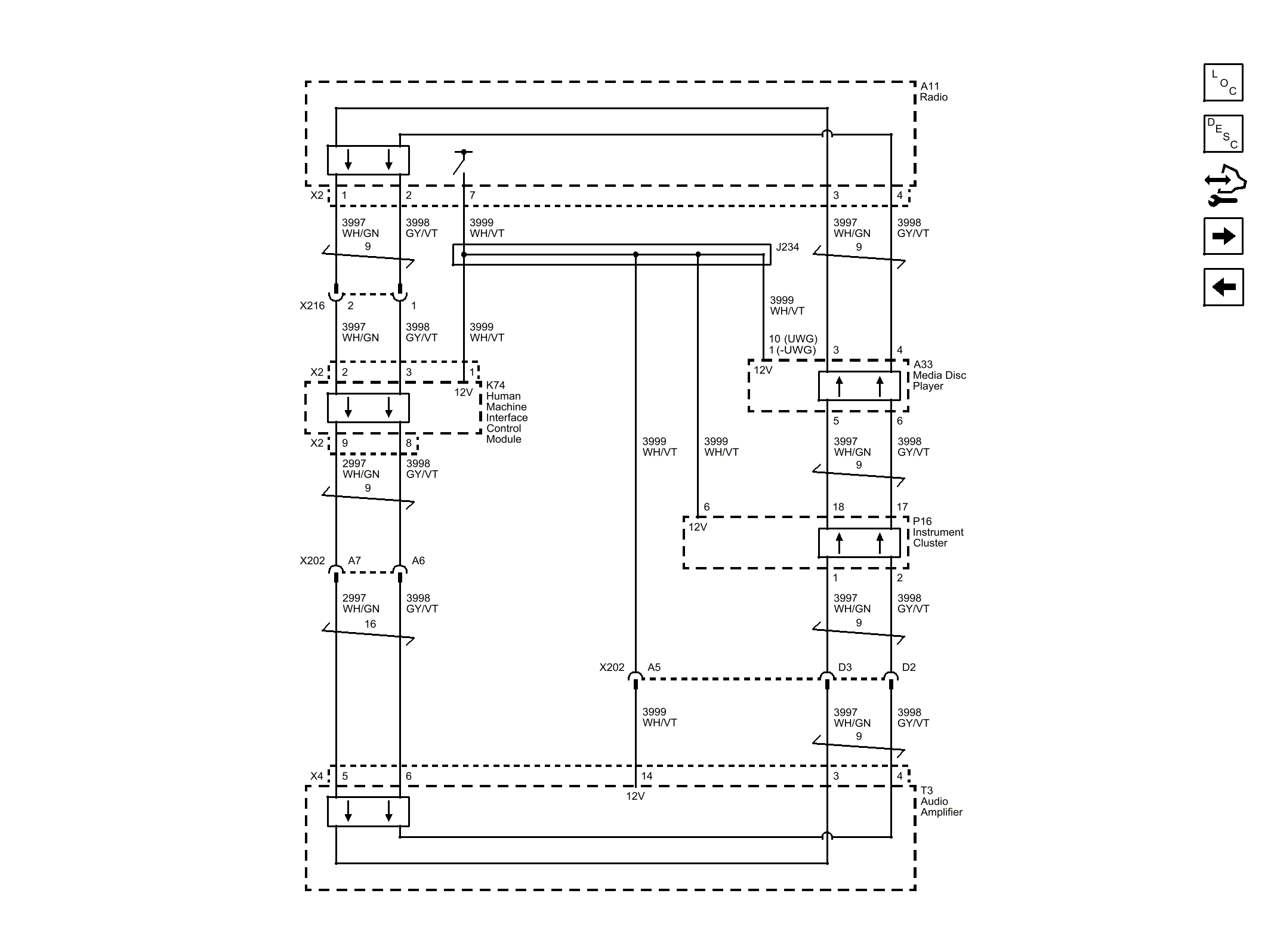

Fig 1: Most 50 Bus Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
