Powertrain Expansion Bus

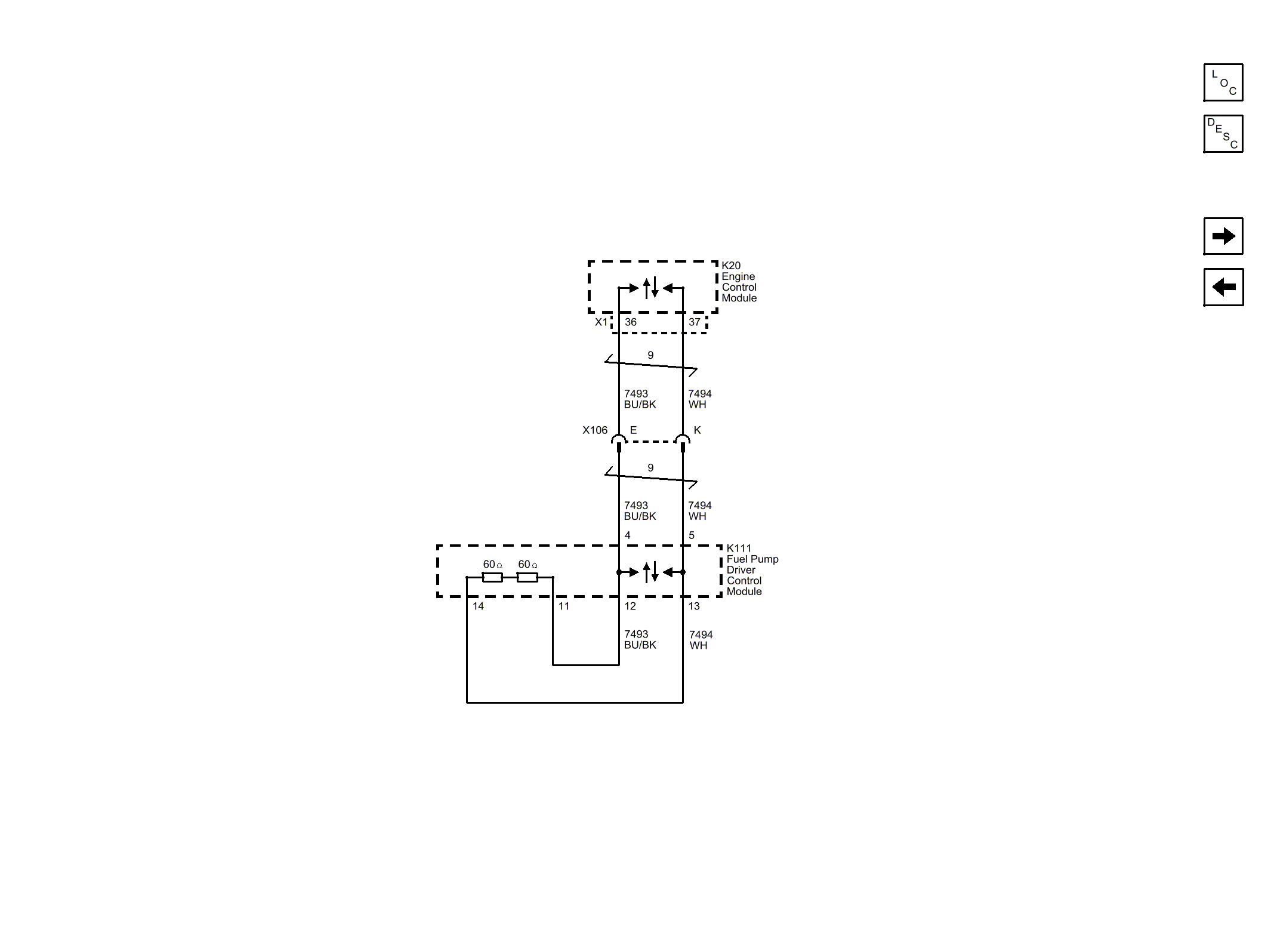

Fig 1: Powertrain Expansion Bus Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
