Rear Toe Adjustment
NOTE:
Adjust the rear toe on each rear wheel separately.

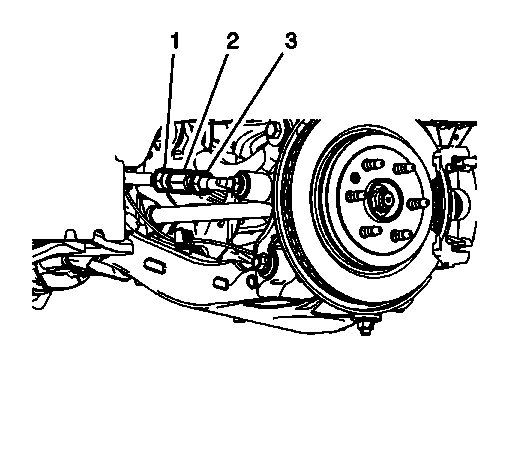

- Loosen the rear suspension adjust link nuts (1) and (3).
- Adjust the toe by rotating the rear suspension adjust link (2) until the proper specification as been reached. Refer to Wheel Alignment Specifications .
- Using a backup wrench to hold the rear suspension adjust link (2), tighten the rear suspension adjust link nuts (3) THEN (1) to 150 N.m (110 lb ft).
- Recheck the toe setting.
- If necessary, readjust the toe specifications.
CAUTION:
Refer to Fastener Caution .
