Module Power and Ground

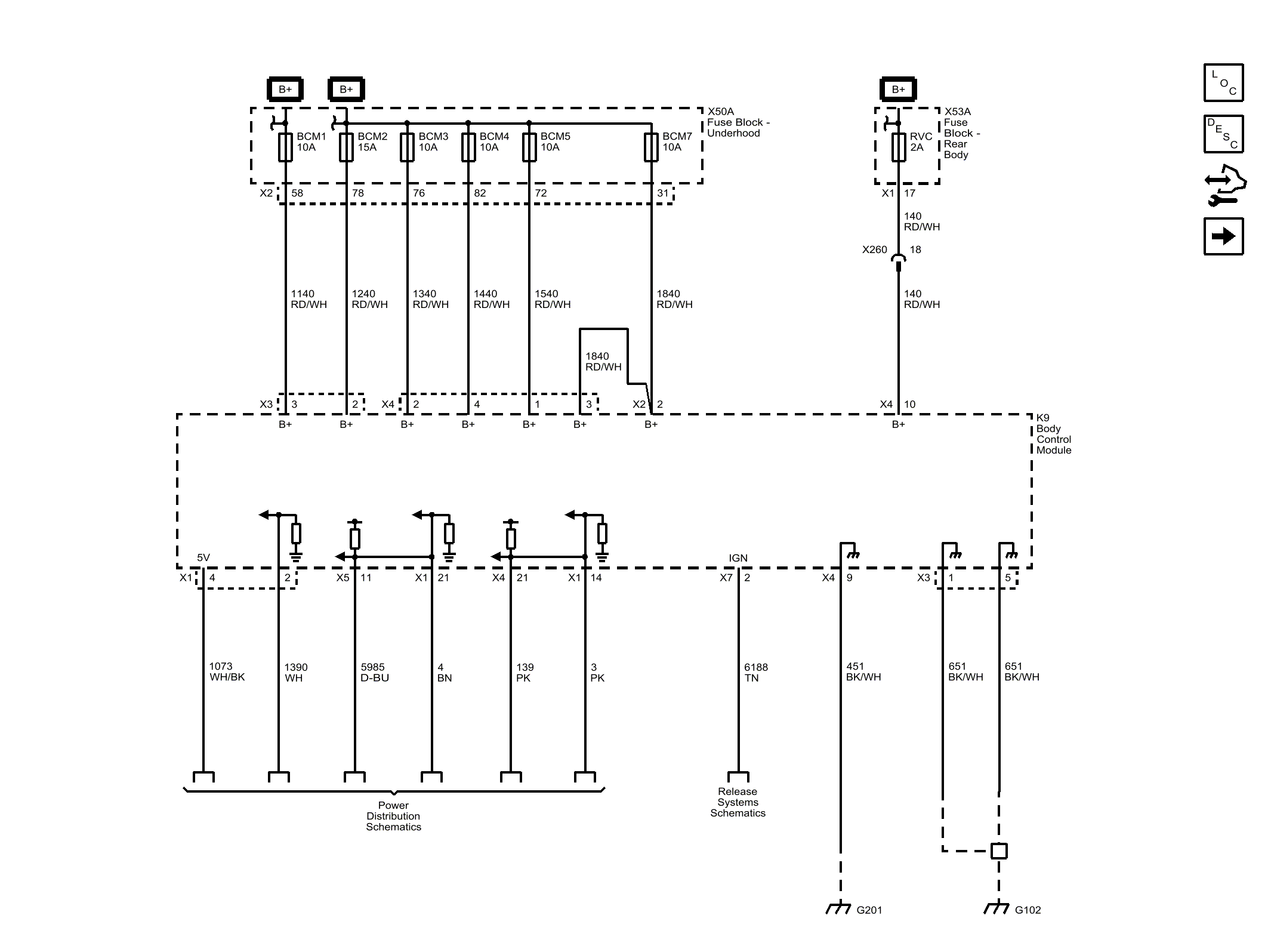

Fig 1: Module Power and Ground
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
