Rearview Camera Image Display Module Replacement

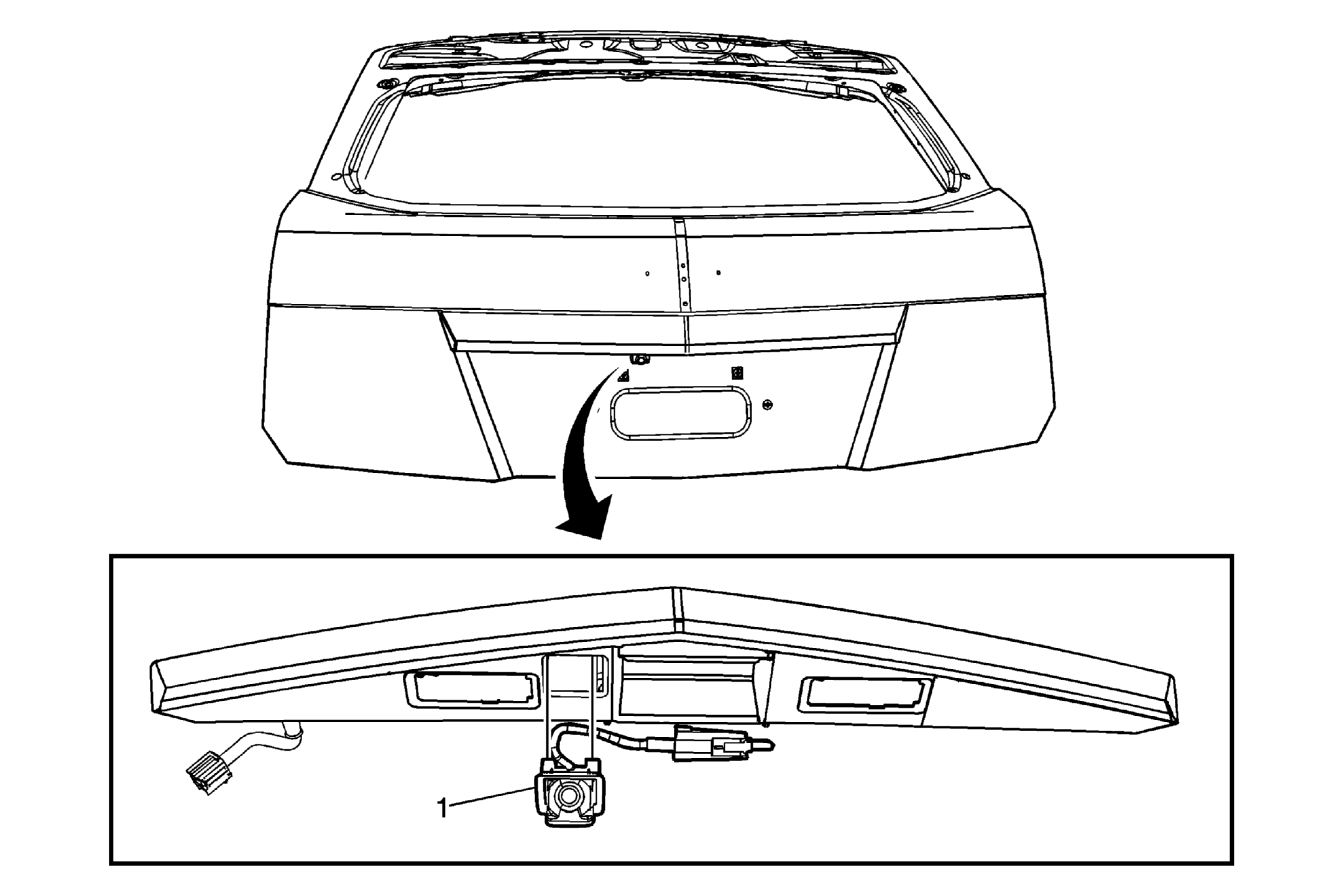

Fig 1: Rearview Camera Image Display Module
GM2186389Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the rear compartment lid applique. Refer to Rear Compartment Lid Applique Replacement .
1 Rearview Camera

Procedure

  1. Disconnect the electrical connector.
  2. Depress the clip fingers and push outward to remove the rearview camera from the applique.
