Rear Camber Adjustment

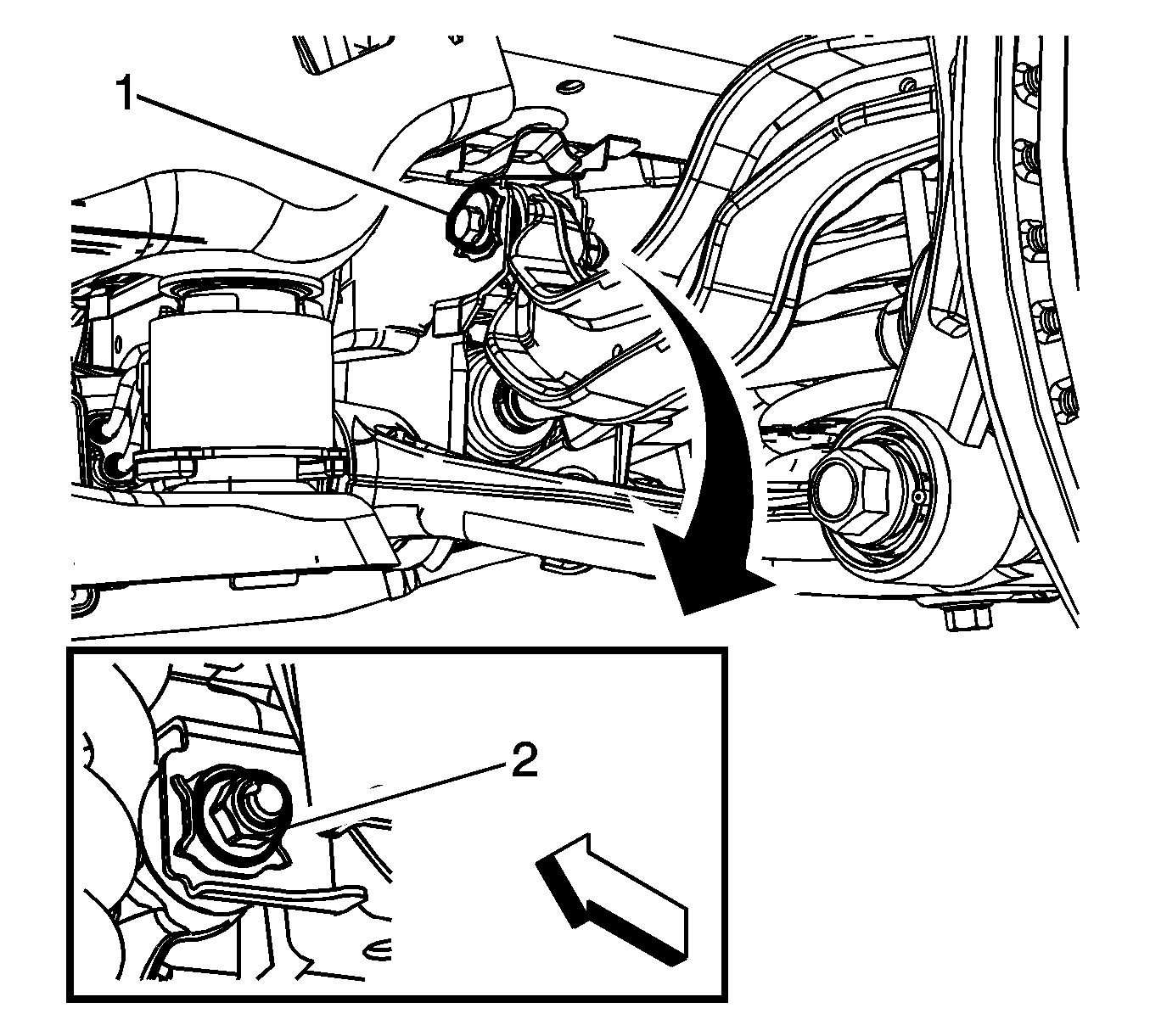

- Loosen the rear upper control arm bolt (1).
- Rotate the rear upper control arm bolt (1) until the proper camber setting is achieved. Refer to Wheel Alignment Specifications .
- Verify the rear camber specifications and adjust as necessary.
- Tighten the rear suspension upper control arm nut (2) to 150 N.m (111 lb ft).
CAUTION:
Refer to Fastener Caution .
NOTE:
Hold the rear suspension upper control arm bolt while tightening the rear suspension upper control arm nut.
