Human Machine Interface Control Module Replacement

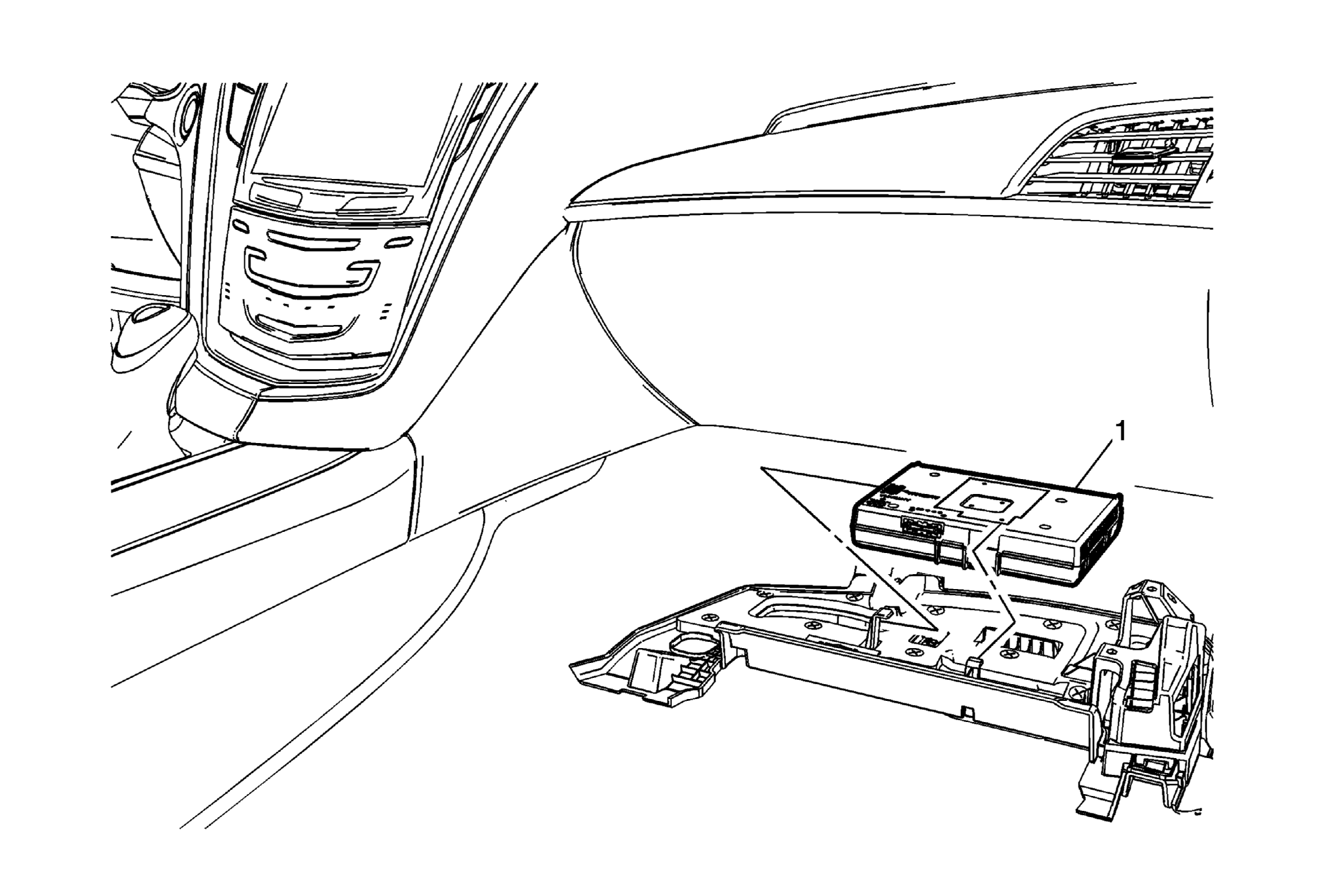

Fig 1: Human Machine Interface Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel lower trim panel insulator - right side. Refer to Instrument Panel Lower Trim Panel Insulator Replacement - Right Side .
1	Human Machine Interface Control Module Procedure Disconnect the electrical connections. Unclip the module from the insulator panel. Refer to Control Module References for programming and setup information.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel lower trim panel insulator - right side. Refer to Instrument Panel Lower Trim Panel Insulator Replacement - Right Side .

Human Machine Interface Control Module

Procedure
