Peripheral Human Machine Interface Control Module Replacement

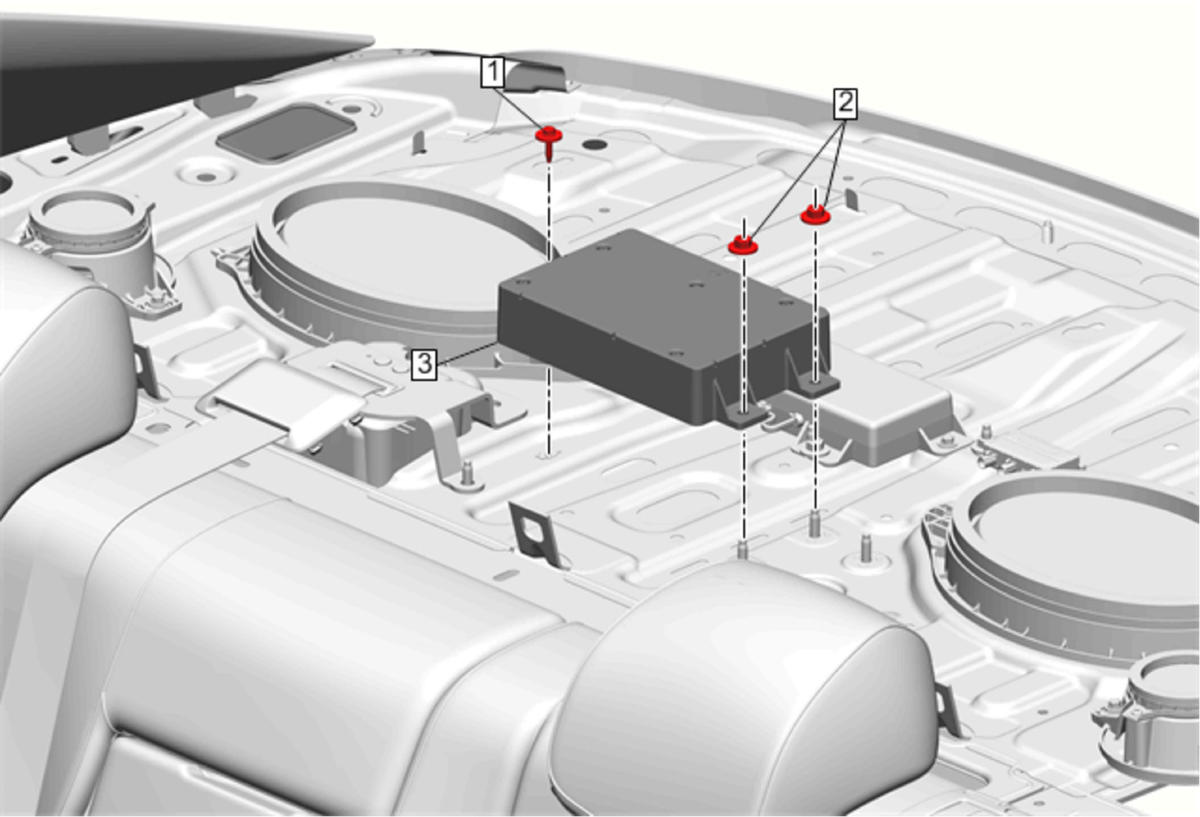

Fig 1: Peripheral Human Machine Interface Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Window Panel Trim Replacement (With DB3)Rear Window Panel Trim Replacement (Without DB3)
1	Peripheral Human Machine Interface Control Module Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Peripheral Human Machine Interface Control Module Bracket Nut [2x] Tighten 6 N.m (53 lb in)
3	Peripheral Human Machine Interface Control Module Procedure Disconnect the electrical connectors. Refer to Control Module References for programming and set up procedures, if required.
