Body Control Module Replacement

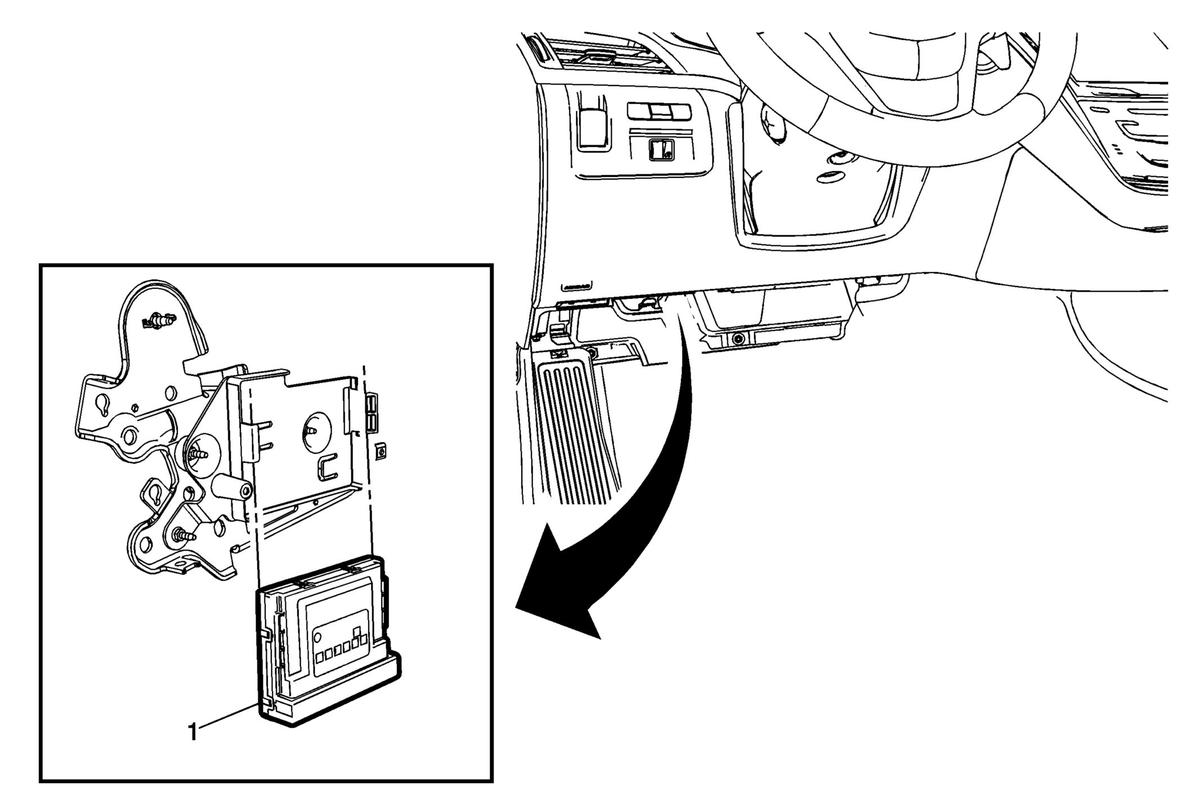

Fig 1: Body Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel lower trim panel insulator - left side. Refer to Instrument Panel Lower Trim Panel Insulator Replacement - Left Side .
1	Body Control Module Procedure Disconnect the electrical connectors. Push tabs and slide downward to release the body control module from the bracket. Reprogram the module if replaced. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the instrument panel lower trim panel insulator - left side. Refer to Instrument Panel Lower Trim Panel Insulator Replacement - Left Side .

Body Control Module

Procedure

Disconnect the electrical connectors.
Push tabs and slide downward to release the body control module from the bracket.
Reprogram the module if replaced. Refer to Control Module References .
